Bosch ICP-COM-IF Installation Manual page 2

MAP Interface Module DE
Parallel S1 in-
terface

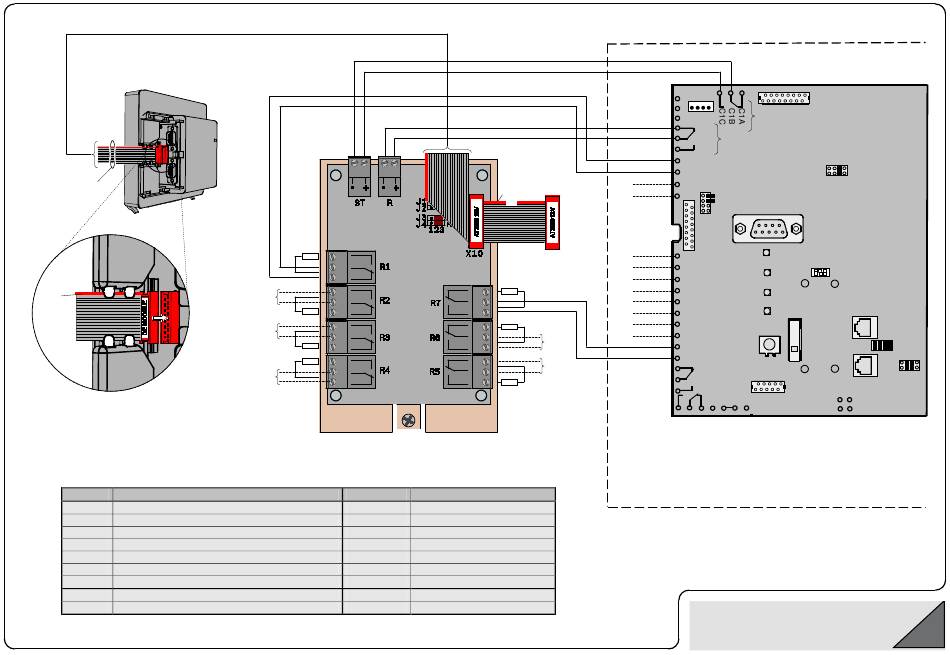

The ribbon cable is
attached to the MAP
Interface Module DE
Red
marking at
top
Relays Output/input
R1 Output for the communicator alarm line ML1
R2 Output for the communicator alarm line ML2
R3 Output for the communicator alarm line ML3
R4 Output for the communicator alarm line ML4
R5 Output for the communicator alarm line ML5
R6 Output for the communicator alarm line ML6
R7 Output for the communicator alarm line ML7
ST Input from external communicator
R Input from external communicator
ICP-COM-IF
ML2
ML3
ML4
1. The size of the terminal resistors (R to be looped in
E)
depends on the communicator (for example 10 k for the AT 2000).
2. Pull to disconnect the connectors.
Stand-by mode
On Summary alarm
Off Duress
Off Holdup
On Intrusion/Tamper
On Summary Trouble
Off Fire
Off Armed (any area)
Communicator fault
Negative confirmation
Relay 2:
Negative
confirmation
Red
marking
at top
ML6
ML5
Activation with
Remote communicator, for example the AT 2000
Relay 1:
Communicator fault
Relay 1
R1A
R1B
Relay 2
R1C
A
ML1
B
A
ML2
B
A
ML3
B
A
ML4
B
A
ML5
B
A
ML6
B
A
ML7
B
AT 2000 programming
• Relay 1: "Continuous activation", stand-by "on"
• Relay 2: "5 seconds", stand-by "off"
• ML1–ML7: Conventional Lines Intrusion
