- Page 1 Operating instructions N-10, N-11 Pressure Transmitter N-10 N-11 SL-1 WIKA Instrument Corporation A1000 Wiegand Boulevard Lawrenceville, GA 30043 Phone (770) 513 8200 (770) 338 5118 E-Mail info@wika.com www.wika.com...
- Page 2 Operating instructions N-10, N-11 Pressure transmitter N-11 N-10 WIKA Instrument Corporation A1000 Wiegand Boulevard Lawrenceville, GA 30043 Phone (770) 513 8200 (770) 338 5118 E-Mail info@wika.com www.wika.com...
-
Page 3: Table Of Contents

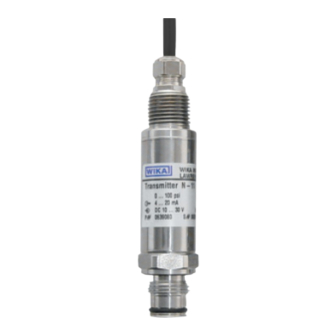

DIN EN ISO 14001. WIKA Global Use of the product in accordance with the intended use N-10, N-11: Use the non-incendive pressure transmitter to transform the pressure into an electrical signal Current terms and conditions apply. -
Page 4: Important Details For Your Information
tion, malfunction. standards on safety (including Ensure that the pressure transmitter is only operated in accordance with the provisions i.e. explosion protection). as described in the following instructions. WIKA Operating instructions N-10, N-11 WIKA Operating instructions N-10, N-11... -
Page 5: Packaging
Inspect the pressure transmitter for possible damage during transportation. Should there be any obvious damage, inform the transport company and WIKA without delay. Keep the packaging, as it offers optimal protection during transportation (e.g. chan-... - Page 6 7. Starting, operation Electrical installation shall be prepared in accordance with the control For Model N-10 you have to provide for a sealing element; exceptions are instruments drawing no. 2245906 (section 12). with self-sealing threads (e.g. NPT thread).
- Page 7 9. Place the flat, square gasket over the connection pins on the top of the instrument housing. 10. Slide the terminal block (6) onto the connection pins. 11. Secure the angle housing (5) and terminal block (6) to the instrument with the screw (1). WIKA Operating instructions N-10, N-11 WIKA Operating instructions N-10, N-11...
- Page 8 Non-incendive for Class I, Division 2, Groups A, B, C and D Internal transmission fluid Synthetic oil (not for N-10 with pressure ranges > 300 psi) Dust ignitionproof for: Class II, Division 1, Groups E, F and G Power supply U in VDC 10 <...
-
Page 9: Adjustment Of Zero Point / Span
Reassemble the instrument carefully. Make sure all sealings and o-rings are not damaged and correctly installed to assure the rated moisture ingress protection. WIKA Operating instructions N-10, N-11 WIKA Operating instructions N-10, N-11... -
Page 10: Maintenance, Accessories
Accessories Diaphragm is damaged, e.g. through impact, abrasive/agressive media; Contact the manufacturer and replace For details about the accessories (e. g. connectors), please refer to WIKA‘s price list, WIKA‘s Signal span dropping off/too small corrosion of diaphragm/pressure the instrument product catalog on CD or or contact our sales department. -
Page 11: Storage, Disposal
This Return Form contains information on all materials with which Sig+ the instrument has come into contact, either through installation, test purposes, or cleaning. You can find the Product Return Form on our internet site (www.wika.de / www.wika.com). BARE 11. Storage, disposal... -
Page 12: Wika Global
Phone: (+31) 4 75/53 55 00 E-Mail: info@wika.ru E-Mail: info@wika.nl Serbia WIKA Merna Tehnika d.o.o. Brazil WIKA do Brasil Ind. e Com. Ltda. Phone: (+381) 11 2763 722 Phone: (+55) 15-32 66 16 55 E-Mail: info@wika.co.yu E-Mail: marketing@wika.com.br Singapore WIKA Instrumentation Pte. Ltd.
