7 Reference Approval

7.1 Reference Equipment

The Siemens reference setup that will be submitted to type approve MC45 consists of the
following components:
· Siemens MC45 cellular engine
·
Development Support Box (DSB45)
·
Flex cable (160 mm) from Hirose DF12C receptacle on MC45 to Hirose DF12 connector
on DSB45. Please note that this cable is not included in the scope of delivery of DSB45.
·
SIM card reader integrated on the DSB45
· Handset type Votronic HH-SI-30.3/V1.1/0
·
PC as MMI
PC
Power supply
MC45_HD_01_V00.02a
W
Antenna or 50
cable to system
simulator
RS-232
DSB45
SIM
Handset

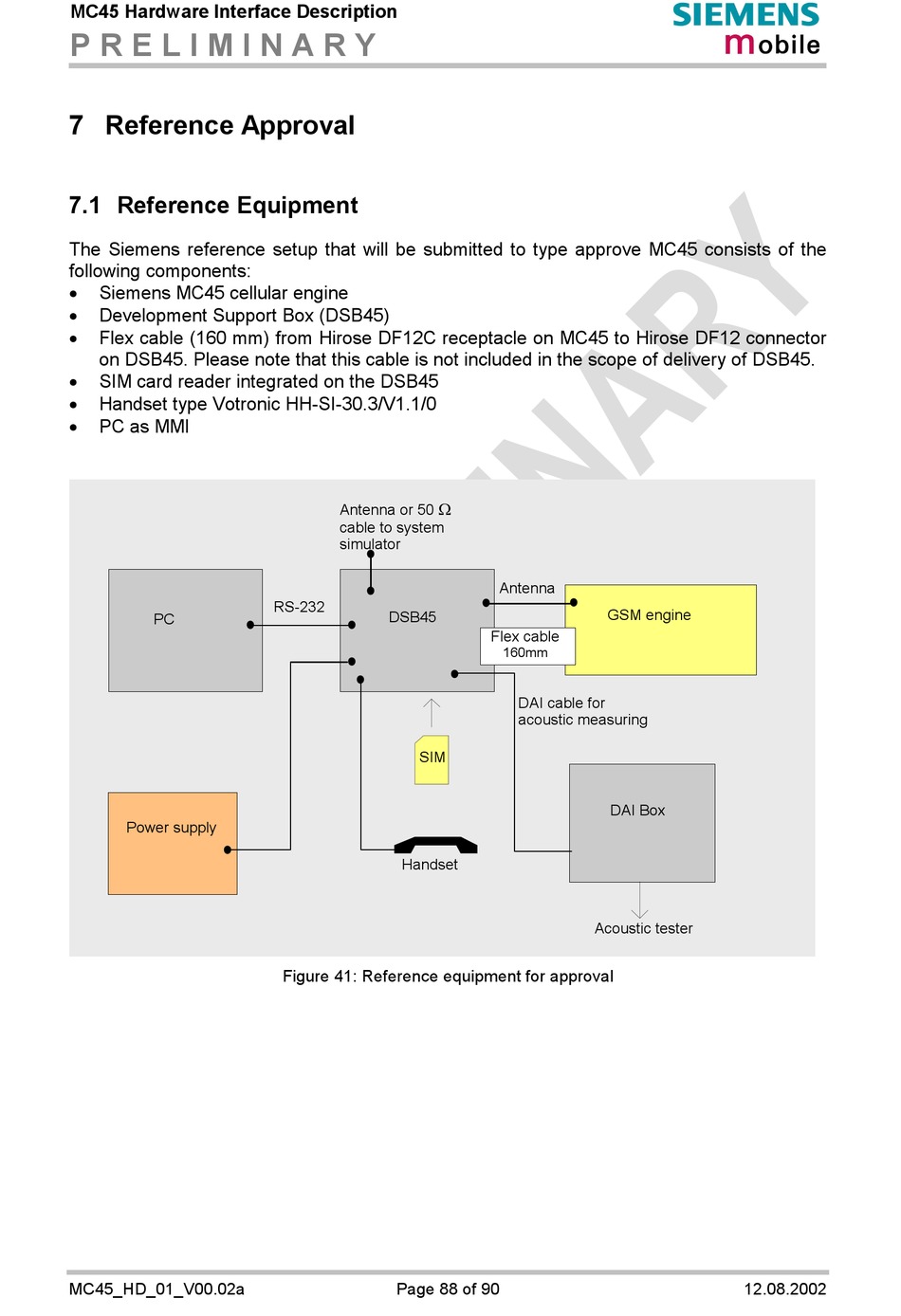

Figure 41: Reference equipment for approval
