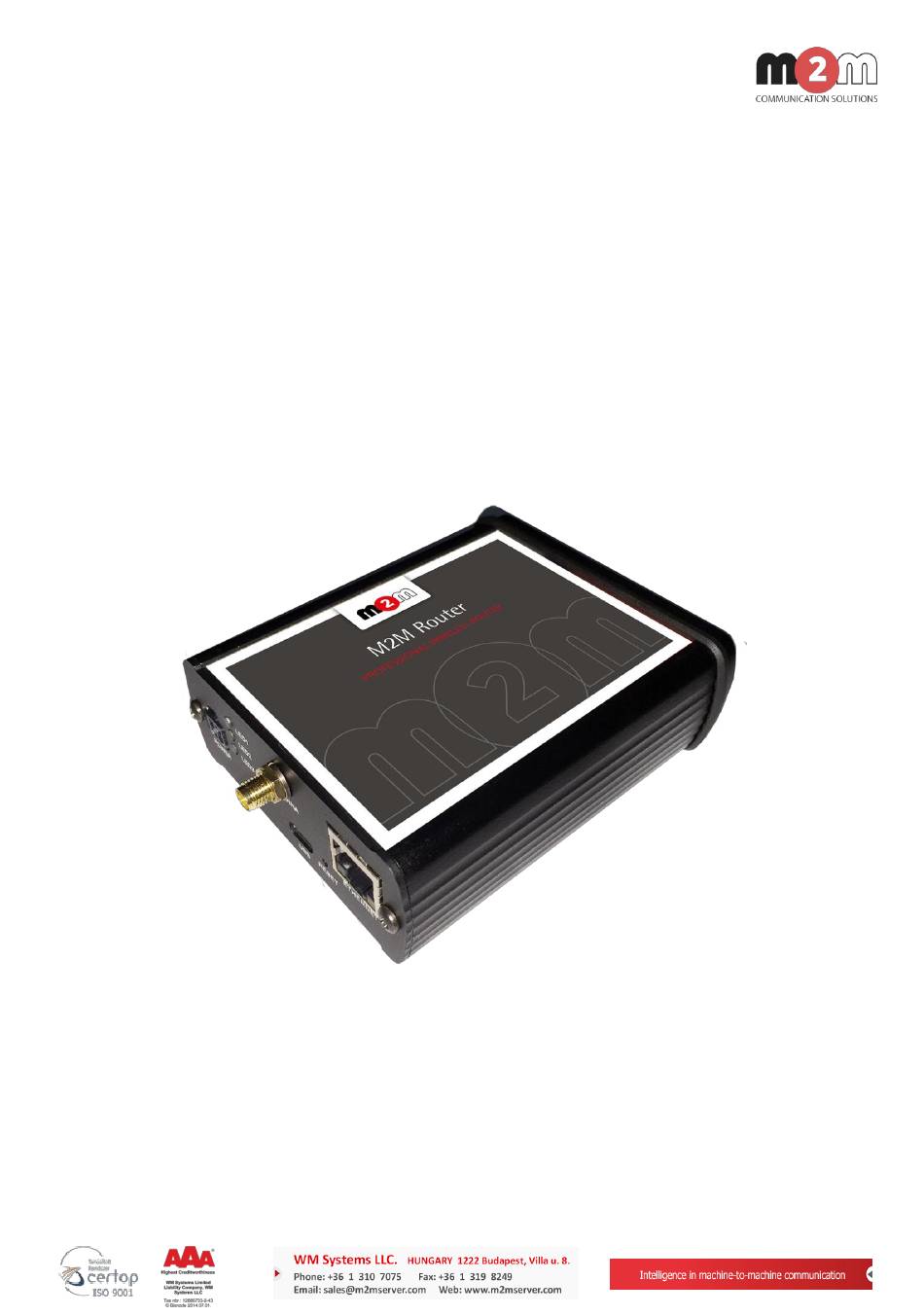

  • Page 1 M2M Router ® User Manual (Extract) v1.9 _________________________________________ Rev: 1.9 2017-06-29...

  • Page 2: Starting The Router

    1. Starting the router 1.1 Cable connection 1. Mount a 2G/3G or 4G or an LTE 450/CDMA 450 SMA antenna to the Antenna titled SMA-M interface (according to the module/router type). 2. Insert an activated data SIM card to the SIM holder, placed the chip-side up and the cutted edge towards to inside and push until it sleeves.
  • Page 3 3. The system starting then takes about 1-2 minutes while it will be ready for usage. Then you can login to the web user interface. 4. The module and the mobile network availability is signed by the LED2. When the SIM card network registration was successfully performed, the LED lights continuously.
  • Page 4 2. Allow the accessing of the router default IP address in your browser by pushing to the Special button, then allow the safety exclusion into the pop-up window. Attention! When connecting to the public network, it is recommended to change the login password! The ethernet IP address can be modified after login from the OpenWrt.

  • Page 5: Network Configuration

    You can store the router settings with the Save button. The Save & Apply button stores the settings and reconfigure the router related on these settings. When it was succesful, the router will be not restarting automatically futher. 1.7 Network configuration The list of the available network interfacescan be found at the Interfaces / Interface Overview menu item.
  • Page 6 The network interfaces are listed at the Interface Overview. The interface means the eth0 USBLAN usb0 Ethernet port connection ( ), the is the USB-Ethernet ( ) and the 3g-wan interface is the public wireless Internet connection ( ) for the CDMA450, 2G, 3G, 4G LTE or LTE 450 modem.
  • Page 7 Here you will found some examples for the APN settings: M2M APN (enclosed) APN name: wm2m Public Internet APN (opened) APN name: net...

  • Page 8: Ethernet (Lan) Settings

    Automatic mode When you not set any value for the APN, the router will connect by the SIM-card automatically to the next available network’s available APN. Authentication The PAP/CHAP username and PAP/CHAP password settings can be also configured here – if it is required for the connection.
  • Page 9 Static address gateway – or other network device - IP address, and choose the at the Protocol, DHCP client setting, and push the button. Then the DHCP client will be activated for ethernet interface. Push the Save & Apply button for performing the changes. 1.11 DHCP, DNS settings The DHCP service allows the automatic IP address providing for the connecting devices in the current IP segment by the router.
