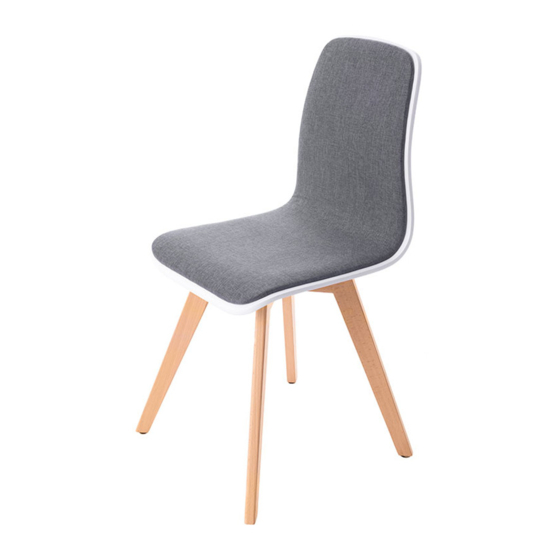

Austin Chair
Harper Chair
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
allen
bolt
key x1
x4
mocka.co.nz | mocka.com.au
C
D
E
washer
wedge
nut
x4
x2
x4
Hardware Supplied
Phillips screwdriver required
F
screw
x8
1
Advertisement
Table of Contents
Related Manuals for Mocka Austin Chair
Summary of Contents for Mocka Austin Chair
- Page 1 Austin Chair Harper Chair Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. washer wedge screw allen bolt key x1 Hardware Supplied Phillips screwdriver required mocka.co.nz | mocka.com.au...
- Page 2 Austin Chair Harper Chair Assembly Instructions E x2 Attach left legs [2] and right legs [3] to the underside of the chair seat Insert 2x wedges (E) between the legs as shown and secure with 8x [1] using 4x washers (D), 4x nuts (C) and 4x bolts (B). Tighten with the screws (F).
