Preparation; Installation - Lippert Components Standalone Smart Jack Install Manual

Preparation

1.

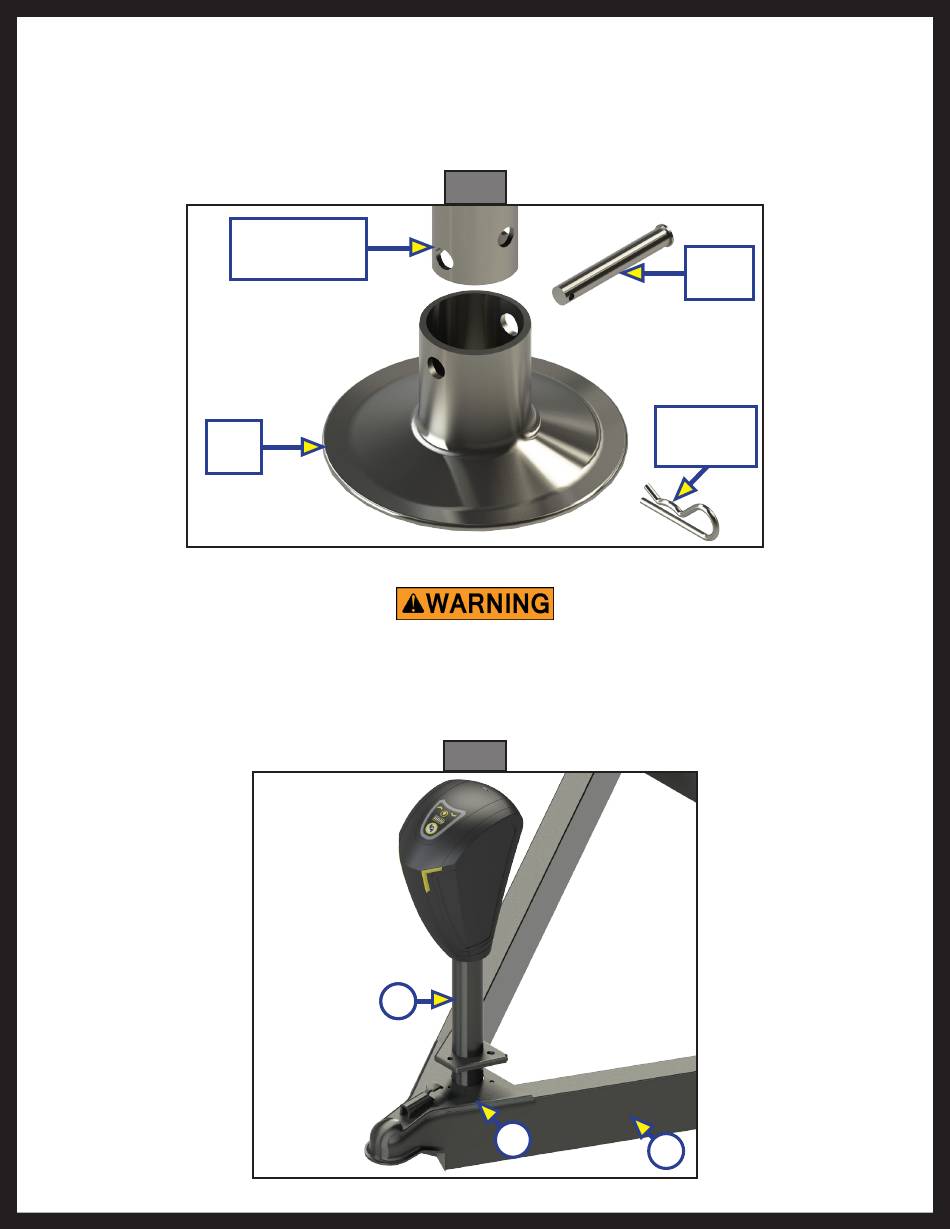

Remove the Smart Jack foot pad from the Smart Jack (if necessary).
A. Remove the hairpin cotter pin and clevis pin, which hold the foot pad to the jack leg. Set the pins
and the foot pad to the side (Fig. 1).
2.
Support the trailer according to OEM instructions.

Installation

The trailer MUST be supported per OEM specifications before working underneath.
1.
Carefully slide the jack leg (Fig. 2A) through the hole in the coupler (Fig. 2B) on the trailer A-frame
(Fig. 2C).
Rev: 09.23.2016
Power Tongue
Jack Leg
Foot
Pad
Failure to do so may result in death or serious injury.
A A
Fig. 1
Fig. 2
B
Page 3
Clevis
Pin
Hairpin
Cotter Pin
C
Standalone Smart Jack OEM Install Manual
