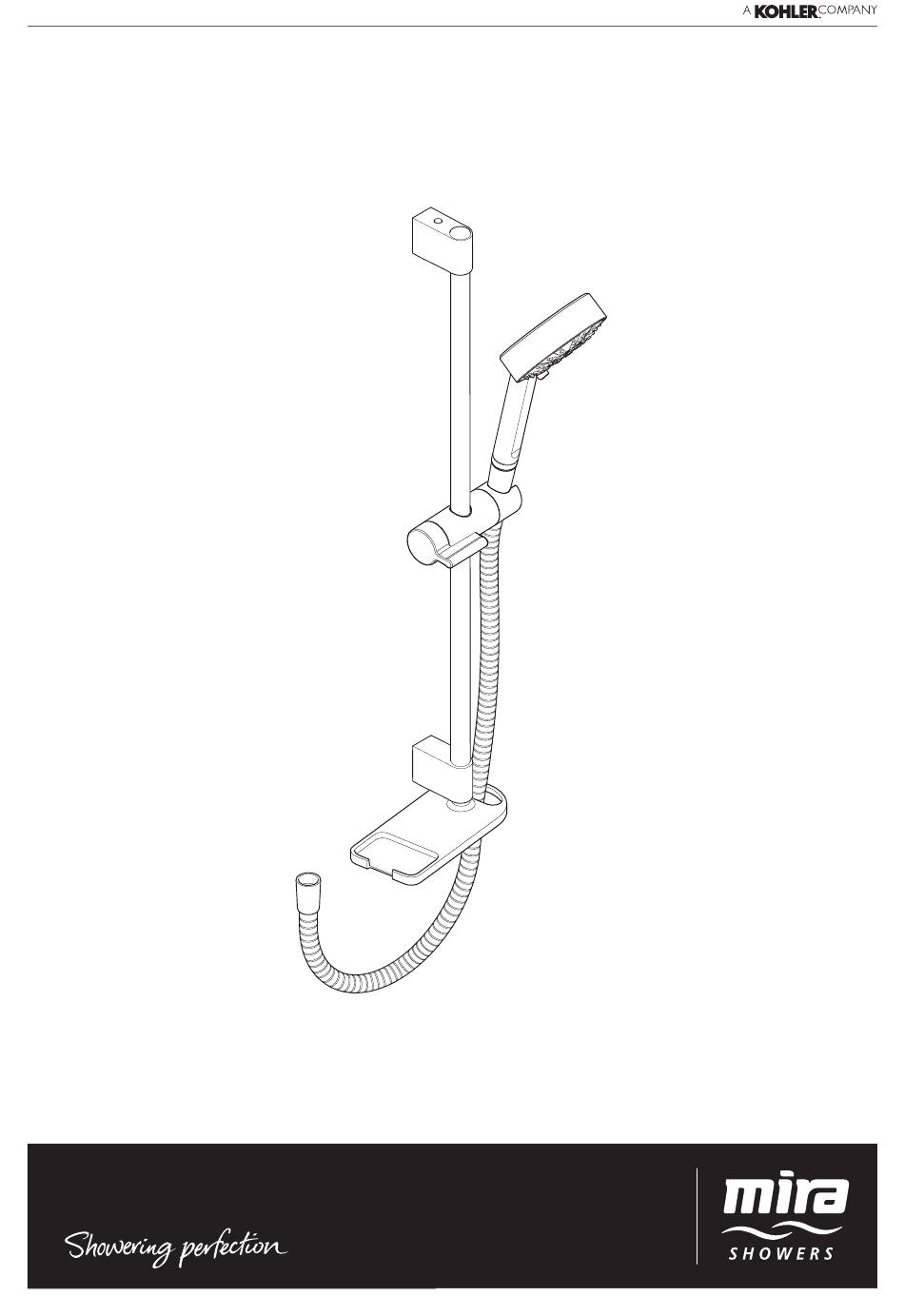

- Page 1 Mira Sport Shower Fittings (L16J) These instructions must be left with the user Installation and User Guide 1269096-W2-A...
- Page 2 GENERAL Make sure that the shower fittings are installed by a competent installer. Installations must comply with Water Regulations (Bye-Laws, Scotland), and any other Local Regulations and Building Regulations in force at the time of installation. The shower fittings should be positioned at a convenient height for all the family. Position the fittings to spray across rather than towards the opening of the cubicle and also away from the shower control. Avoid layouts where the shower hose will be sharply kinked. This may reduce the life of the hose. Do not fit any form of flow control in the outlet pipe work if the shower fittings are installed in conjunction with a product that requires the fittings to act as a vent (e.g. an electric shower). Special consideration should be given to the fixing arrangements when installing onto a dry lined, stud partition, shower cubicle or laminated panel wall structures. Installers may wish to obtain alternative proprietary cavity fixings, or choose other options, however, these methods of fixing are beyond the scope of this guide.
- Page 3 SPECIFICATION - PRESSURES Minimum maintained pressure: 0.1 bar (10 kPa) Maximum maintained pressure: 5.0 bar (500 kPa) CLEANING Cleaning Many household cleaners contain abrasives and chemical substances, and should not be used for cleaning plated or plastic fittings. These finishes should be cleaned with a mild washing up detergent or soap solution, and then wiped dry using a soft cloth. 1269096-W2-A...
-
Page 4: Installation
INSTALLATION We recommend that the slide bar is installed with the ends flush. Mark the wall fixing positions and drill two holes to suit the wall fixings. Caution! Do not drill into cables or pipes in the wall. Note! For a new installation optimum fixing centres are 635 mm. Replacement installation fixing centres are 635 mm maximum. Install the wall plugs and the mounting brackets and secure with the wall screws. Note! Check for vertical alignment before tightening. The mounting brackets are slotted to aid this alignment. Then fully tighten. Install the clamp bracket (rotate the lever to help with the installation), the hose retaining ring and the slide bar supports to the slide bar. Make sure that the wall screws are flush with the inside edge of the mounting brackets. Fit the slide bar supports over the mounting brackets, then adjust the slide bar vertically ensuring an equal length of slide bar protrudes from the top and bottom mounting bracket (or flush with the end of the slide bar for new installations). Remove the slide bar assembly carefully, preventing any further movement between the slide bar and the slide bar supports. Tighten the two slide bar clamping screws no more than half a turn to secure the slide bar supports to the slide bar. - Page 5 Note! Do not overtighten the screws Slide Bar Support Tighten slide bar clamping screw no more than 1/2 turn Slide Bar Cap (x2) M4 Screws 'A' (x2) 1703.196 1740.368 Showerhead (White) 1740.369 Showerhead (Chrome) 632.73 1740.623 Hose Clamp Bracket Seal (x2) (White) 1740.625 Clamp Bracket (Chrome) Slide Bar Clamping Lever Screw 1603.104 Slide Bar Hose (1.25 m) 1703.204 (660 mm) Slide Bar Support (x2)
-
Page 6: User Maintenance
USER MAINTENANCE De-scaling the Showerhead Important! Keeping the showerhead clean and free from limescale will ensure that your shower and showerhead continue to perform to their maximum. A blocked showerhead can restrict the flow rate and may cause damage to your shower. Use your thumb or a soft cloth to wipe any limescale from the soft nozzles Inspecting the hose Important! The shower hose should be inspected periodically for damage or internal collapse, internal collapse can restrict the flow rate from the showerhead and may cause damage to the shower. Remove the shower hose from the shower, inspect and replace the hose if necessary. Inspect the hose. Unscrew the hose from the showerhead and the shower outlet. 1269096-W2-A... - Page 7 SPRAY MODES Rain + Rain Storm Burst When adjusting shower spray modes do not force lever as product damage will occur. 1269096-W2-A...
-
Page 8: Customer Service
