- Page 1 SmarTemp Control fx (Timer Programming Functionality)

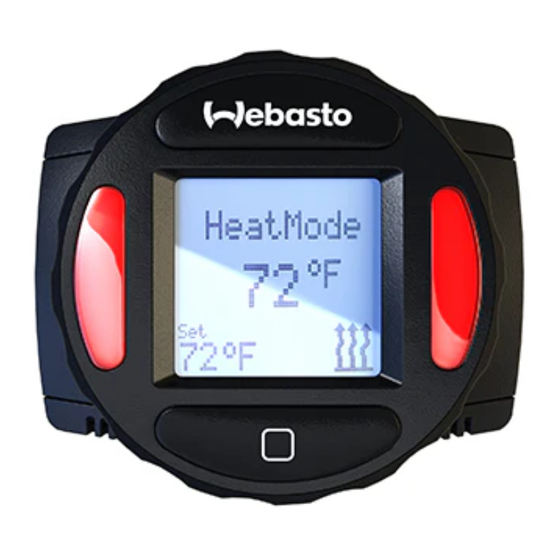

- Page 2 SmarTemp fx Overview Rotary knob Instant heat button Status indicator light(s) Heater on Run time Select button 29.08.2018 Webasto Presentation...
-
Page 3: Manual Operation
Manual Operation Press to start heater This is the main screen of the SmarTemp Control fx. If it shows “Manual” on the screen no timers are set to run. The heater can be started by pressing the “Webasto” button 29.08.2018... -
Page 4: Menu Operation
Menu feature: Pressing the “Select” button will get you into the menu area of the SmarTemp fx. This is where you can set the different timer settings and the run time duration just as an example. Select button 29.08.2018 Webasto Presentation... -
Page 5: Mode Selection
Mode Selection Mode: There are two different modes, Manual and Auto. Manual: the heater will only start when the “Webasto” button is pressed. Auto: All set timers will run as programmed throughout the week. 29.08.2018 Webasto Presentation... -
Page 6: Timer Programming
While scrolling through the days you can press the select button to get down to the timer for that day that you want. T1 – T4 29.08.2018 Webasto Presentation... - Page 7 The time can be set for any timer during that day. The duration can be between 10 – 120 minutes in 10 minute increments only. Repeat these steps for all timers to be set. T1-T4, Sunday thru Saturday 29.08.2018 Webasto Presentation...
- Page 8 “OFF” is displayed for the duration. Press the select button and the check that was in that timer position will go away. 29.08.2018 Webasto Presentation...
- Page 9 “S” will appear in place of the check mark. The skip feature will only skip the selected time once. After that time has passed the “S” will return to a check mark. 29.08.2018 Webasto Presentation...
