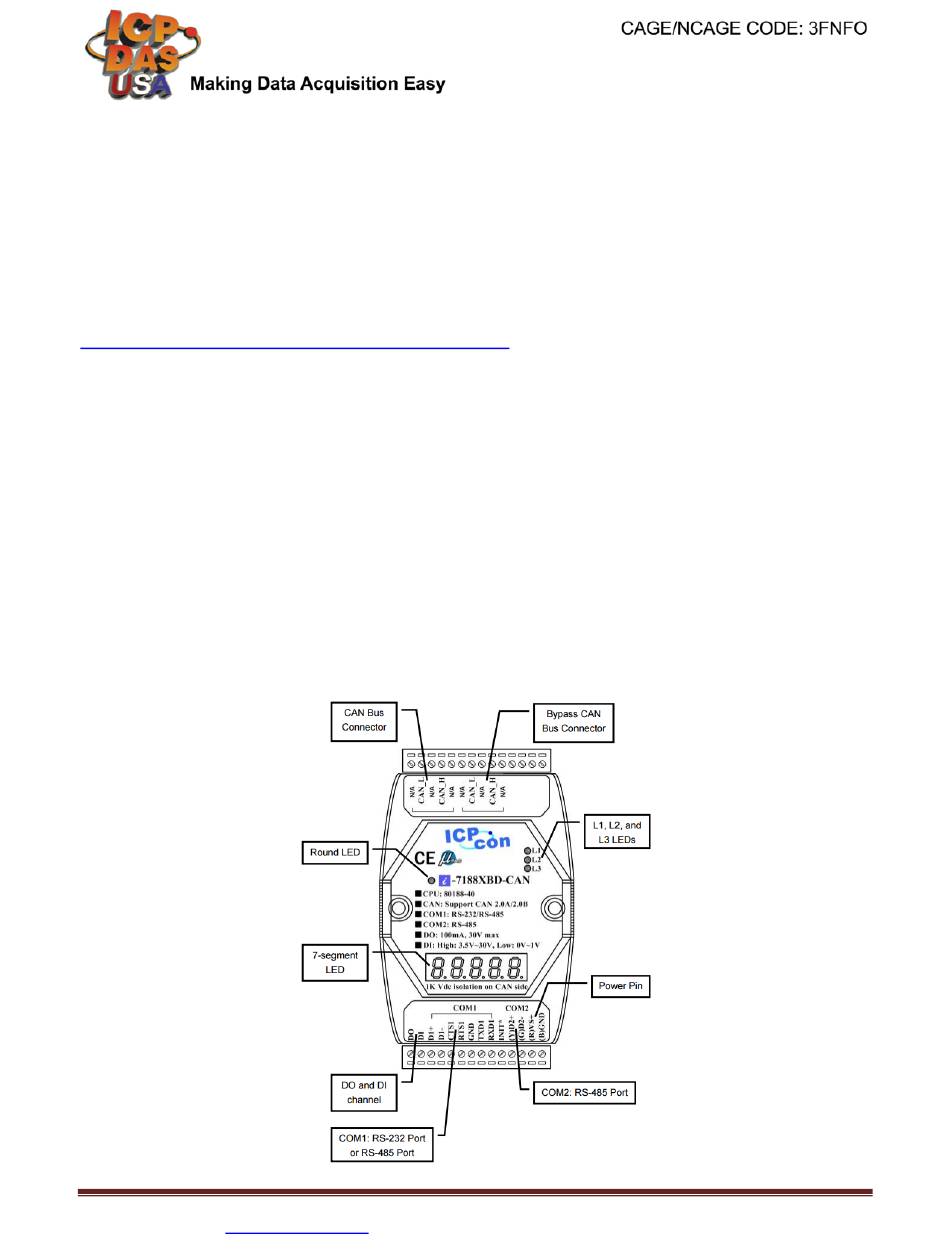

I-7188XBD-CAN

I-7188 CAN bus series Programmable Automation

Controller

Quick Start Guide

Product Website:

http://www.icpdas-usa.com/i_7188xbd_can.html

1. Introduction

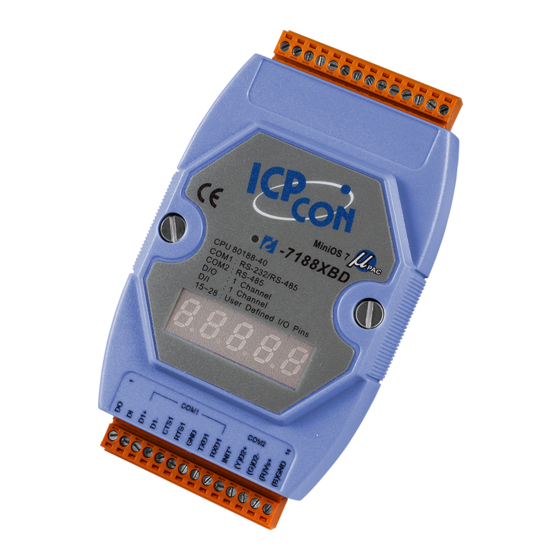

The I-7188XBD-CAN series PACs (Programmable Automation Controller) are powered

by 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash

memory. All of them provide several communication interfaces to adapt to various

applications, such as CAN port, RS-232 port and RS-485 port. Uses can program their

application program flexibly with C/C++ language because of the built-in MiniOS7

operation system. Besides, the I-7188XBD-CAN series PACs have different I/O types

for users to match their requirement. For I-7188XBD-CAN, it provides 1 open collector

digital output channel and 1 digital input channel. It is useful for transfer the command

from differential communication interface. Therefore, it can satisfy the applications with

I/O demand. Therefore, the I-7188XBD-CAN series PACs are economic and convenient

solution for diversification CAN application.

I-7188XBD-CAN I-7188 CAN bus series PAC - QuickStart (Feb/2017)

ICP DAS USA, Inc. |

www.icpdas-usa.com

| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Table of Contents

Do you have a question about the I-7188XBD-CAN and is the answer not in the manual?

Page 1 C/C++ language because of the built-in MiniOS7 operation system. Besides, the I-7188XBD-CAN series PACs have different I/O types for users to match their requirement. For I-7188XBD-CAN, it provides 1 open collector digital output channel and 1 digital input channel. It is useful for transfer the command from differential communication interface.
Page 2 The jumper J3 is used to judge the resister of CAN network. When users want to set the jumper JP3, the upper cover of I-7188XBD-CAN/ μPAC-7186EXD-CAN needs to be removed. About the J3 jumper setting, please refer the following figure I-7188XBD-CAN I-7188 CAN bus series PAC - QuickStart (Feb/2017) ICP DAS USA, Inc.
Page 3 The following figure shows the wiring diagram for general application. When the COM1 of I-7188XBD-CAN is used, sending data to COM1 will transmit the data both on RS- 232 and RS-485 port. One of the RS-232 and RS-485 port receives the data, these data will be obtained by COM1 of the I-7188XBD-CAN.
Page 4 Moreover, in order to wire conveniently, the I-7188XBD-CAN provides not only one CAN port, but also another bypass CAN port. There two CAN ports are the same one. The bypass CAN port is just for wiring with another CAN device conveniently, it doesn’t have any other function.
