SERVICE MANUAL

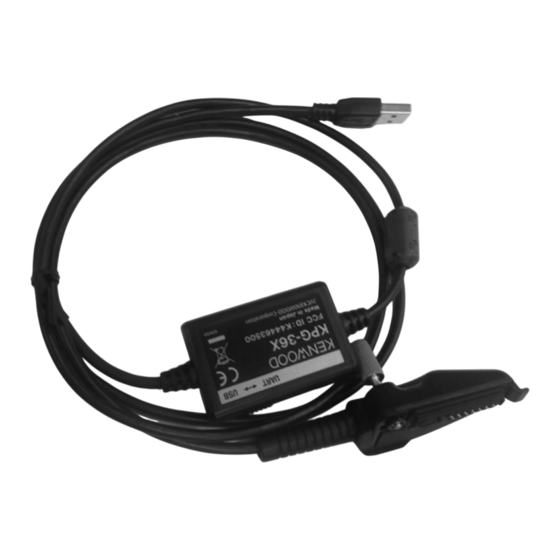

USB PROGRAMMING INTERFACE CABLE
The "Product Exchange System" is applicable to this product.
1. Outline
● This product can be connected to the LMR radios by USB or UART serial connection.
By switching the conversion module of the cable central portion, It is possible to switch between USB and UART.
● At UART serial connection, this product connects at high speed by the stability operation in USB-serial conversion module.
At USB connection, USB signal passes through by the switch.
2. Feature
2.1 Cable
This cable is connected the Radio (LMR) with the USB terminal of the computer.
2.2 Connection
This product can be connected to the LMR radio by USB or UART.
Switching USB to UART/UART to USB is using a SW on Conversion module.
2.3 USB
USB 2.0 Full Speed (12Mb/s) compliant.
2.4 USB driver software
This software works on Microsoft windows Vista(32/64bit)/ 7(32/64bit)/8(32/64bit)/8.1(32/64bit).
This software is supplied with the CD-R.
KPG-36X
COPYRIGHT©2015 JVCKENWOOD Corporation
No.RQ070
2015/03

Advertisement

Table of Contents

   Related Manuals for Kenwood KPG-36X

   Summary of Contents for Kenwood KPG-36X

  • Page 1 SERVICE MANUAL USB PROGRAMMING INTERFACE CABLE KPG-36X The "Product Exchange System" is applicable to this product. 1. Outline ● This product can be connected to the LMR radios by USB or UART serial connection. By switching the conversion module of the cable central portion, It is possible to switch between USB and UART.
  • Page 2 KPG-36X 0.08 4. About selecting USB/UART For using USB (Up to 12Mb/s USB Speed), Slide the SW of KPG-36X to USB. For using UART (RS-232C), Slide the SW of KPG-36X to UART. 5. PC tuning Connect the wires to the PCB in the connector case of KPG-36X.
  • Page 3 6. Pin assignment 14Pin Universal connector USB Connector Pin assignment Pin assignment 1: VBUS 1: GND 2: D- 2: NC 3: NC 3: D+ 4: GND 4: NC 5: VBUS-DET 6: NC 7: NC 8: NC 9: NC 10: GND 11: NC 12: RXD/D+ 13: TXD/D-...
  • Page 4 Communications Systems BU No.RQ070 Printed in Japan 2(No.RQ070)
