Summary of Contents for Bose PowerShare PS604D

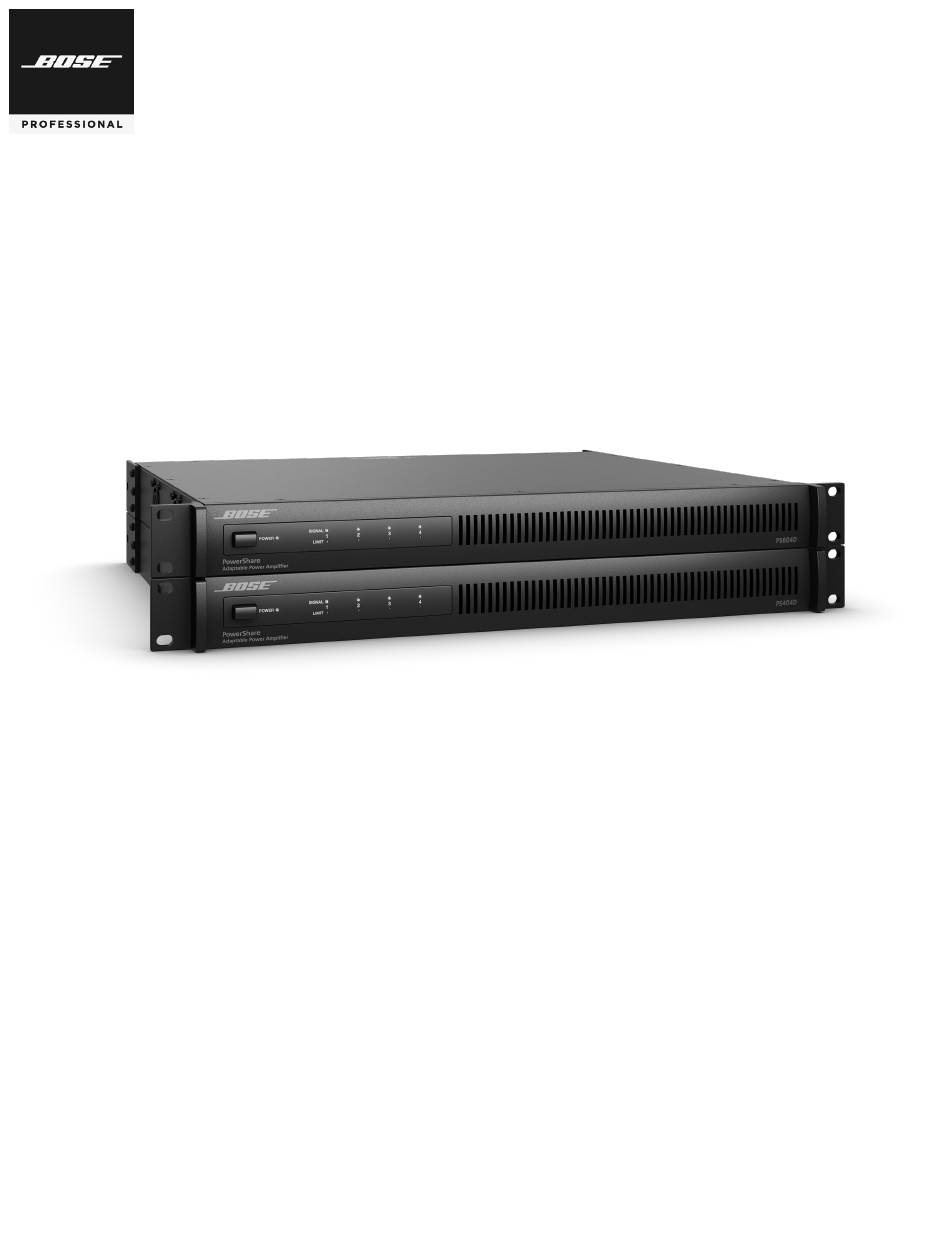

- Page 1 PowerShare Adaptable Power Amplifiers PS604D PS404D Installation Guide Guía de instalación Guide d’installation Installationsanleitung Guida all’installazione Installatiehandleiding...
- Page 2 China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone Due to ventilation requirements, Bose does not recommend placing the product in a confined space such as in a wall cavity or in an enclosed cabinet.
- Page 3 Este símbolo en el producto indica que hay voltaje peligroso y sin aislamiento dentro de la carcasa del producto, lo Importador para México: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 cual podría representar un riesgo de descarga eléctrica.
- Page 4 Ce symbole sur le produit indique la présence d’une tension électrique dangereuse non isolée à l’intérieur de Importateur pour le Mexique : Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de Chapultepec, l’appareil, susceptible d’induire un risque de décharge électrique.
- Page 5 Importeur aus der EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Niederlande hin. Importeur aus Mexiko: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Importeur- und Serviceinformationen erhalten Sie unter: +5255 (5202) 3545 Dieser Warnhinweis auf dem Produkt warnt vor nicht isolierten gefährlichen Spannungsquellen im Inneren des...
- Page 6 Importatore per l’UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi Importatore per il Messico: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Questo simbolo sul prodotto indica la presenza di tensioni pericolose non isolate all'interno del telaio del prodotto e México, D.F.
- Page 7 Gebruik uitsluitend het montagemateriaal dat bij dit product is bijgeleverd. Omwille van de ventilatievereisten raadt Bose af om het product in een besloten ruimte te plaatsen, zoals in een nis in de muur of een dichte kast.
-
Page 8: Table Of Contents
ControlCenter Digital Zone Controllers ............................16 Technical Information Troubleshooting ......................................17 AC Current Draw and Thermal Dissipation Information ......................19 PS604D .........................................19 PS404D ....................................... 20 Technical Specifications ..................................21 PS604D .........................................21 PS404D ........................................22 Block Diagrams PowerShare PS604D and PS404D ..............................23 8 • English PowerShare PS604D/PS404D • Installation Guide... -
Page 9: Overview
PowerMatch line — now with added flexibility. Using innovative technology, the PowerShare PS604D (PS404D) shares power across all output channels and delivers 600 (400) watts for installed applications. This means you can distribute the total 600 (400) watts asymmetrically across all outputs or use any individual output to deliver full power. -
Page 10: Package Contents
Overview pro.Bose.com Package Contents Your PowerShare amplifier will come with the following accessories: Accessories PS604D PS404D AC power cord 2-pin Euroblock (black) 8-pin Euroblock (green) 12-pin Euroblock (green) 10 • English PowerShare PS604D/PS404D • Installation Guide... -
Page 11: Product Details
Power input: Power cord connection (IEC 60320-C14 inlet). Removing the power cord when the amplifier is on is equivalent to powering down using the front panel power switch, and is an acceptable power-down method. Installation Guide • PowerShare PS604D/PS404D English • 11... -
Page 12: Installation
The total amplifier wattage can be distributed in any way across all amplifier outputs. For examples, see the PowerShare Application Guide at pro.Bose.com. 6. Since each output is configurable to drive either Hi-Z or Low-Z loudspeakers, the amplifier can support mixed-impedance installations. - Page 13 Adjust the Output Attenuation controls of the amplifier. Adjust the CC-D ControlCenter digital zone controller(s) settings. Adjust the limiter settings for each output using ControlSpace Designer software. Adjust the transformer tap settings of any connected Hi-Z loudspeakers. Installation Guide • PowerShare PS604D/PS404D English • 13...
-
Page 14: Powershare Amplifier Network Connection
Bose networked system electronics, consult the ControlSpace Designer help system. Resetting the PS604D/PS404D The reset procedure can be used on a PowerShare PS604D or PS404D amplifier to clear the project file (programming defaults) and network settings. Reset your amplifier to clear all device settings to start from a factory default version. -
Page 15: Importance Of Proper Ventilation
Normally Closed (NC), where an open across the mute connector will mute all outputs, using ControlSpace Designer. Note: All Limit LEDs will blink red when the amplifier is muted from software, or from the rear panel mute connector. Use the included 2-pin Euroblock. Installation Guide • PowerShare PS604D/PS404D English • 15... -
Page 16: Remote Volume Control
Remote Volume Control ControlCenter Digital Zone Controllers Remotely control the volume of the PS604D and PS404D amplifiers with Bose ControlCenter digital zone controllers (CC-1D, CC-2D, and CC-3D). Use CC-1D for volume control and use CC-2D and CC-3D for volume and source control. -
Page 17: Technical Information
If the input source signal is clean when it enters the system, and the input and output indicators are green, verify that the loudspeakers are not being overdriven and are not damaged. Unnatural sound Verify that the proper EQ preset is selected for the loudspeakers being used. Installation Guide • PowerShare PS604D/PS404D English • 17... - Page 18 Dante Controller software, or consult the ControlSpace Designer help system. Sometimes it can be helpful to change the PC’s network settings from static IP to DHCP to view and change the Dante IP address. 18 • English PowerShare PS604D/PS404D • Installation Guide...
-
Page 19: Ac Current Draw And Thermal Dissipation Information
4-8 Ω 0.80 Noise 1/8th Rated Power IEC268 Bandlimited Pink 70/100V 0.74 Noise 1/3rd Rated Power IEC268 Bandlimited Pink 4-8 Ω 1.50 Noise 1/3rd Rated Power IEC268 Bandlimited Pink 70/100V 1.40 Noise Installation Guide • PowerShare PS604D/PS404D English • 19... -
Page 20: Ps404D
4-8 Ω 0.66 Noise 1/8th Rated Power IEC268 Bandlimited Pink 70/100V 0.60 Noise 1/3rd Rated Power IEC268 Bandlimited Pink 4-8 Ω 1.10 Noise 1/3rd Rated Power IEC268 Bandlimited Pink 70/100V 1.00 Noise 20 • English PowerShare PS604D/PS404D • Installation Guide... -
Page 21: Technical Specifications
44 mm × 483 mm × 414 mm (1.7 in × 19.0 in × 16.3 in) Shipping Weight 7.8 kg (17.2 lbs) Net Weight 6.4 kg (14.1 lbs) Cooling System Microprocessor controlled, variable speed fans, left to right air flow General Inputs (Control) Mute input control Installation Guide • PowerShare PS604D/PS404D English • 21... -
Page 22: Ps404D
44 mm × 483 mm × 414 mm (1.7 in × 19.0 in × 16.3 in) Shipping Weight 7.8 kg (17.2 lbs) Net Weight 6.4 kg (14.1 lbs) Cooling System Microprocessor controlled, variable speed fans, left to right air flow General Inputs (Control) Mute input control 22 • English PowerShare PS604D/PS404D • Installation Guide... -
Page 23: Block Diagrams
Block Diagrams pro.Bose.com Block Diagrams Installation Guide • PowerShare PS604D/PS404D English • 23... - Page 24 ©2018 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM813432 Rev. 00 October 2018...
