3.5 Mounting

1. Check whether the fieldbus option is already
mounted in the frequency converter. If already
mounted, go to step 6. If not mounted, go to
step 2.
2. Remove the LCP or blind cover from the
frequency converter.
3. Use a screwdriver to remove the front cover and
the LCP cradle.
4. Mount the fieldbus option. Mount the option
with the connector facing up for top cable entry
(see Illustration 3.3), or with the connector facing
down for bottom cable entry (see Illustration 3.4).
If an MCB option is installed, only top cable entry
is possible.
5. Remove the knock-out plate from the new LCP
cradle.
6. Mount the new LCP cradle.
3
4
2
1
1 LCP
2 LCP cradle
3 Fieldbus option
4 Connector

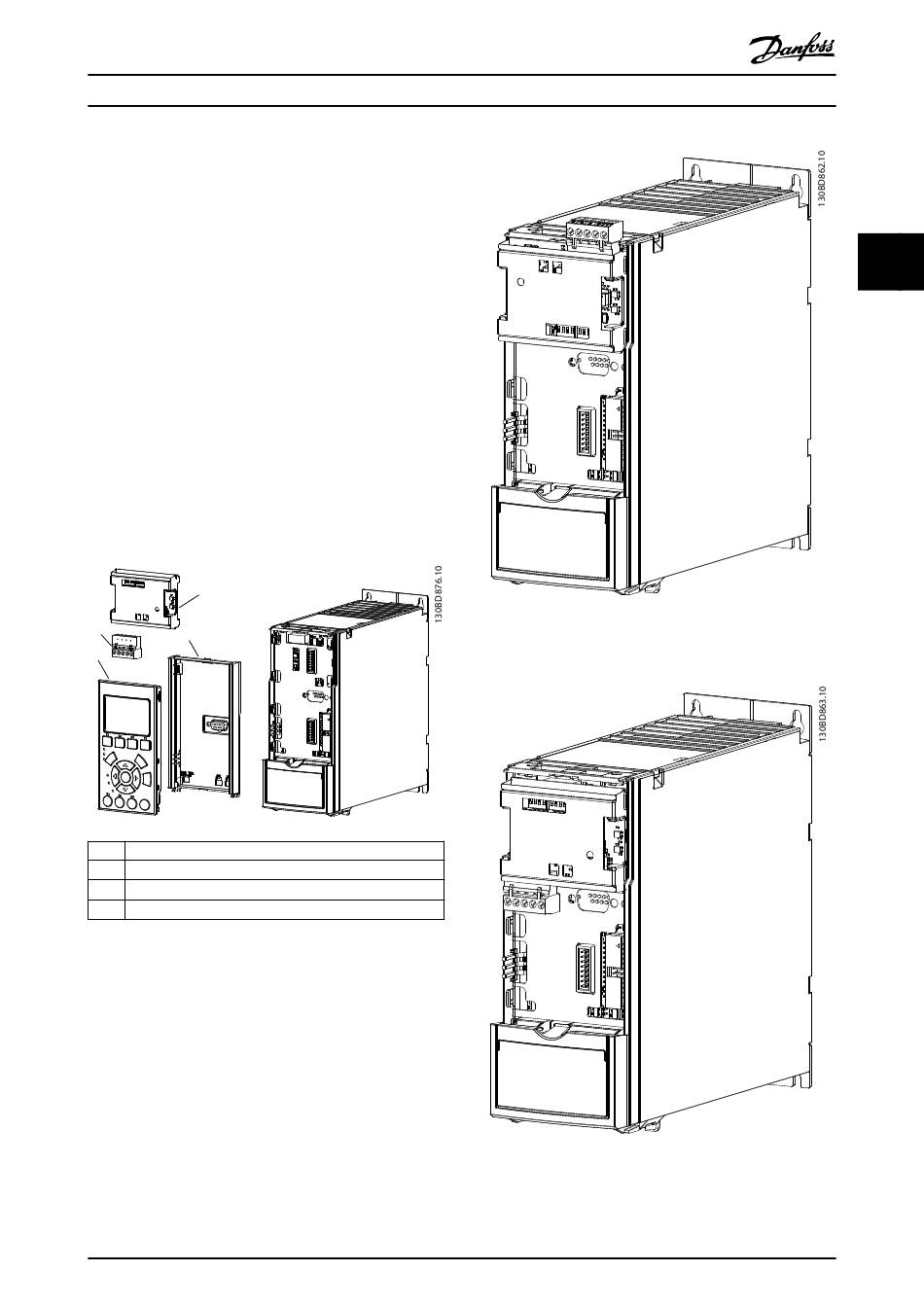

Illustration 3.2 Exploded View
MG33J402
Installation Guide
Illustration 3.3 Top Cable Entry: Option Mounted with
Connector Facing Up
Illustration 3.4 Bottom Cable Entry: Option Mounted with
Connector Facing Down
