Bematech LR2000E Quick Start Manual

QUICK START GUIDE

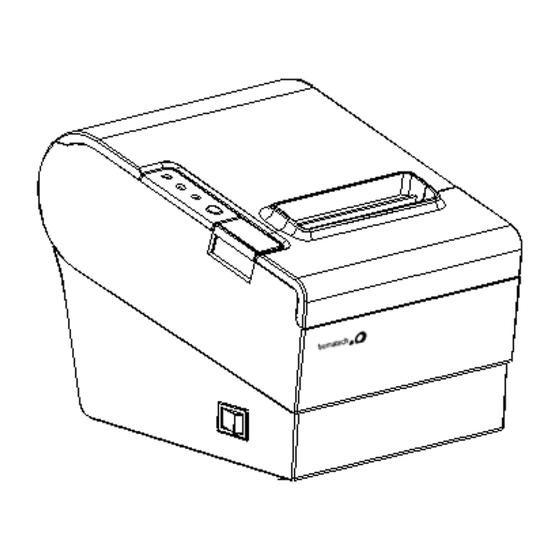

LR2000 and LR2000E
POS Thermal Printers

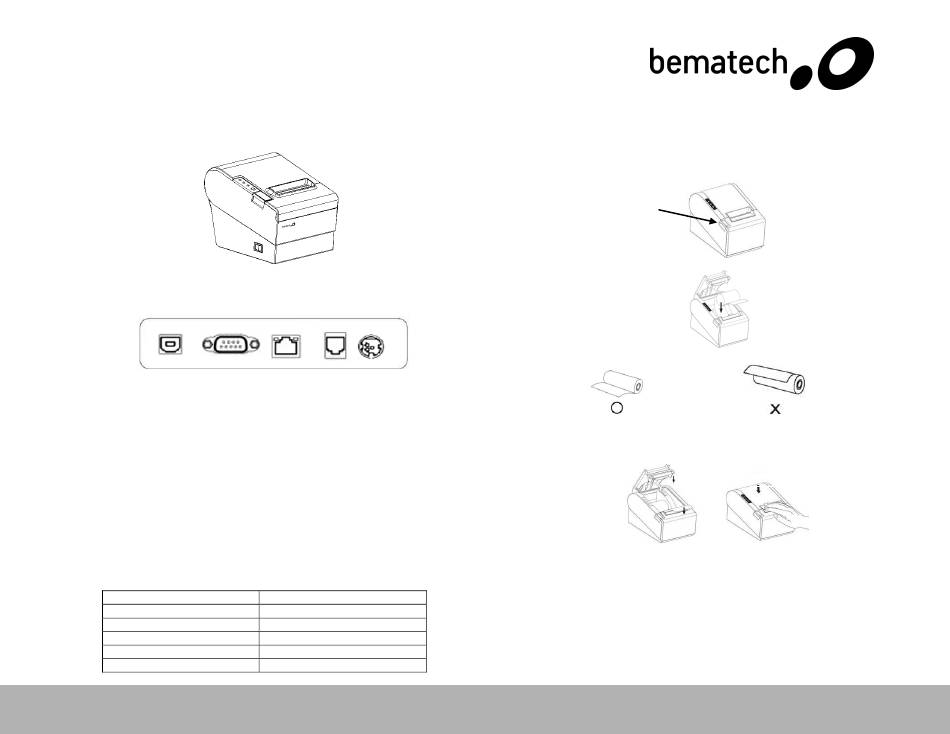

INSTALLATION
USB RS232
(LE2000E)
1. Connect the interface cable (USB/serial) to the printer.
2. Connect the other end of interface cable (USB/serial) to the computer.
3. For Ethernet interface, connect the Ethernet cable to Ethernet hub,
switch, or router.
4. Connect cash drawer cable to cash drawer port at the back of printer.
(Use 12-24V/1A cash drawer only. Incompatible cash drawer will cause
damage to both the cash drawer and the printer.)
5. Make sure the AC power is unplugged and the printer is powered off
before connecting the power cord.
6. Connect DC power cord to printer and then AC power plug to wall socket.
7. Turn on the power switch on the printer side.
Paper Roll Recommendation
Paper Roll Specification Manufacturer
HPK-110 Hansol patech Co.,Ltd
AF50KS-E JUJO Paper Co.,Ltd
TF-50KS-E Nippon Paper Industries Co.,Ltd
PD-160R New Oji Paper Mfg,Co.,Ltd
F380 Kansaki Specialty Papers,Inc.
Logic Controls, Inc.
DC IN
LAN
CASH
DRAWER
www.logiccontrols.com

LOAD AND REPLACE PAPER ROLL

1. Press the Button to Open Paper Roll Cover
2. Remove the used paper roll to replace with a new roll
Press the Cover
Release Button
3. Load the paper roll as shown below:
Make sure the paper roll is loaded in the correct direction.
Correct Direction
4. Pull out the roll paper to the bottom front of the printer and then close the
cover as shown below.
5. Tear off extra paper roll with auto-cutter or with tear-cutter of the printer.
Improper paper roll may lead to critical fault on printer head and shortened
the machine life span. Thus be sure to use the recommended paper roll.
Any issue caused by using other branded paper roll will void the warranty,
even during the warranty period.
www.bematechus.com
Wrong Direction
Press down to
close cover
LR2000 Series
