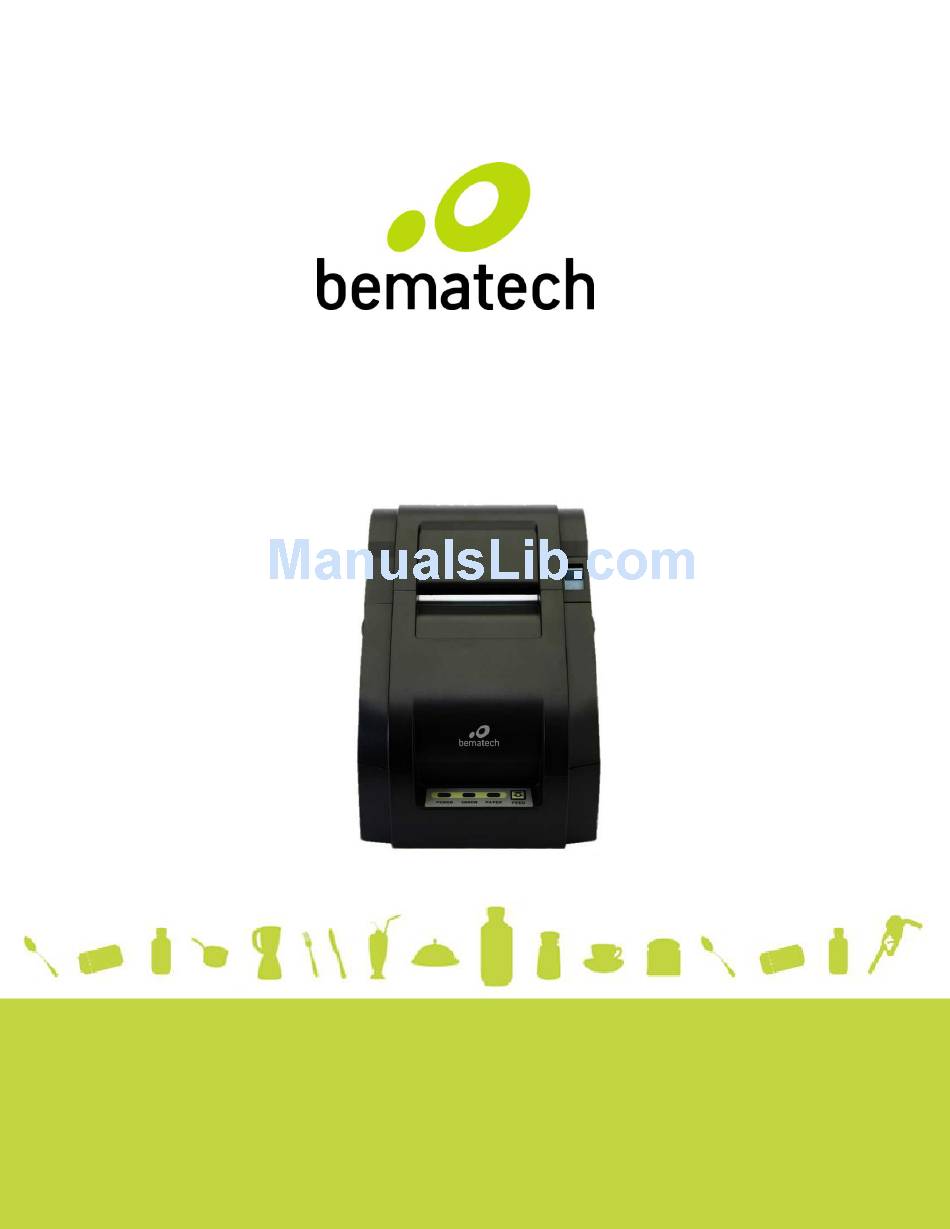

Page 1: User Manual

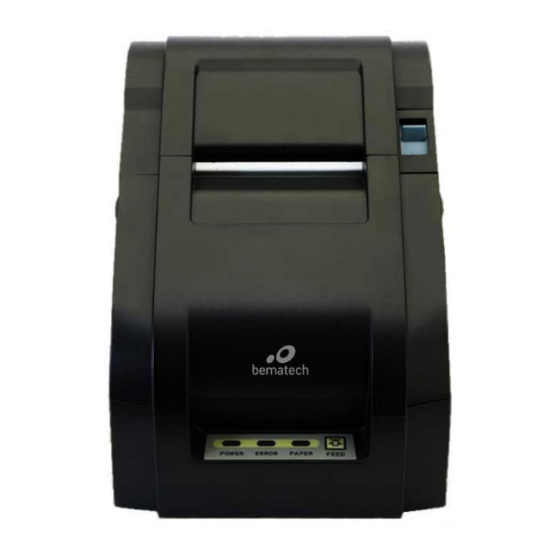

MP200 DOT MATRIX IMPACT PRINTER USER MANUAL... - Page 2 MP200 USER MANUAL All specifications are subject to change without notice Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 3: Table Of Contents
MP200 USER MANUAL Table of Contents Features Specifications Self Test User Switches Command List 5.1. EMULATION EPSON TM-U200 5.2. EMULATION CITIZEN iDP-3540 5.3. EMULATION STAR SP200 Interface Connectors Cash Drawer Connector Electrical Specifications Dip Switch Settings Page 3... -
Page 4: Features
Emulation mode, communications mode, baud rate, serial/parallel handshake, and head printing characteristics are all configured through dip switch settings. Data Buffer The MP200/MP200R printer has a built-in 48 Kilobyte I/O buffer allowing the host computer to free itself after sending the print data. User controls A power switch, a paper feed switch, power LED and Paper Low/Out error LED provide ease of use. -
Page 5: Specifications
MP200 USER MANUAL 2. Specifications MODEL MP200 PRINT METHOD 9-pin serial impact dot matrix PRINT DIRECTION Bi-directional (with logical seeking) NO. OF COLUMNS Epson Mode : 42/35, 40/33, Star Sp200 : 42/35 Other Modes : 40/33 FONT SIZE 7 x 9, 9 x 9 dots... - Page 6 MP200 USER MANUAL Overall dimensions Page 6...
-
Page 7: Self Test
MP200 USER MANUAL 3. Self Test While pressing the paper feed switch for more than 10 seconds after the printer in turned on, the self test mode is initiated. The printer self test includes a listing of the current default settings, read and write test of internal RAM, checksum test of internal program memory, loop back detection statement, a staggered dot line, a few lines of rotating character set, and a diagnostic report. -
Page 8: User Switches
A Power switch located on the lower left side of the printer is used to turn the printer on/off. Indicators This section explains the different patterns signaled by the two LED indicators located on the top cover of the MP200/MP200R. LED1 LED2... -
Page 9: Command List
MP200 USER MANUAL 5. Command List 5.1. EMULATION EPSON TM-U200 Command Hex Code Description <09>H Horizontal tab <0A>H Print and line feed <0D>H Carriage Return DLE EOT <10>H<04>H<n> Real-time status transmission DLE ENQ <10>H<05>H<n> Real-time request to printer ESC SP <1B>H<20>H<n>... -
Page 10: Emulation Citizen Idp-3540
MP200 USER MANUAL 5.2. EMULATION CITIZEN iDP-3540 Command Hex Code Description <07>H Drive pulse setting command for 1st drawer <18>H Clear data in buffer <0A>H Paper feed <0C>H<n> Paper feed n lines <0D>H Print command <0E>H Select expanded character mode <0F>H... -
Page 11: Emulation Star Sp200
MP200 USER MANUAL 5.3 EMULATION STAR SP200 Command Hex Code Description Differed drive command “A” for peripheral unit <07>H (Default setting) <18>H Cancel print data in buffer <0A>H Line feed <0D>H Line feed (same as LF) <0E>H Select expanded character mode <0F>H... -
Page 12: Interface Connectors
MP200 USER MANUAL 6. Interface Connectors Ethernet D-SUB 25 Female Serial Centronics Parallel Ethernet interface SIGNAL Data Out + Output Data + Data Out - Output Data + Ground Data IN + Input Data + Data IN - Input Data -... -
Page 13: Serial Interface
MP200 USER MANUAL Serial interface SIGNAL DESCRIPTION Output Printer transmit data line RS-232C level Input Printer receive data line RS-232C level 4, 20 Output Printer handshake to host line RS-232C level Input Data Send Ready 1, 7 System Ground Centronics Parallel Port... -
Page 14: Cash Drawer Connector
MP200 USER MANUAL 7. Cash Drawer Connector The MP200 can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A for 510 ms or less, when not printing. -
Page 15: Electrical Specifications
MP200 USER MANUAL 8. Electrical Specifications The MP200 requires a power supply with the following parameters. A DC power Adapter is included in the MP200/MP200R box. Power Supply Voltage : 24VDC±10% Power Supply Current : 2.5 A Power Supply Connector... -
Page 16: Dip Switch Settings
MP200 USER MANUAL 9. Dip Switch Settings Function Function Setting Epson TM-U200 Epson TM-U300 Emulation Citizen iDP3540 Star SP200 CR=CR Only Character CR=CR + LF 40/33 Char/Line 42/35 Char/Line Not Install Auto Cutter Install Not Install 2 Color Install Not Install... - Page 17 MP200 USER MANUAL Logic Controls, Inc. 999 S. Oyster Bay Rd Building #104 Bethpage, NY 11714 Tel: +1 516 248 0400 Fax: +1 516 495 4075 Page 17...
