mounting the swing arm & drive gear
HOLD
PUSH
FIT
3

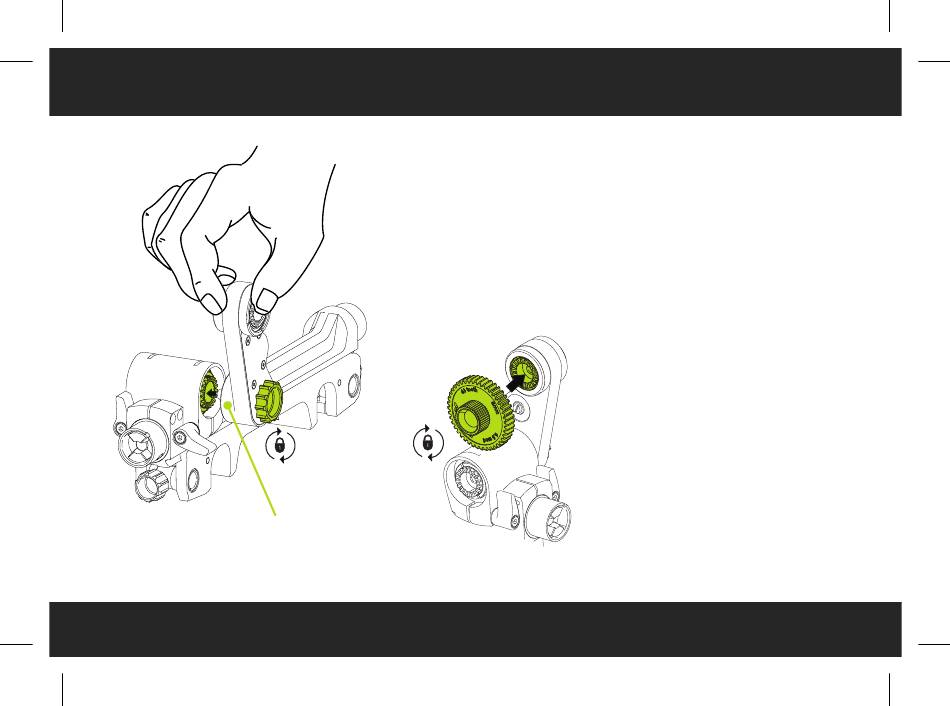

Ensure that the teeth on the swing arm and main
bridge interlock. Firmly hold the top of the swing
arm (where the drive gear fits) whilst tightening
the knurled screw.
Note: The swing arm can be mounted on either
side of the main bridge.
4
Select the correct gear for the lens in
use. Ensure that the teeth on the drive
gear and swing arm interlock. Secure
by tightening the knurled screw on the
drive gear.
Note: The drive gear can be mounted
on either side of the swing arm.
