repositioning the lock levers

1

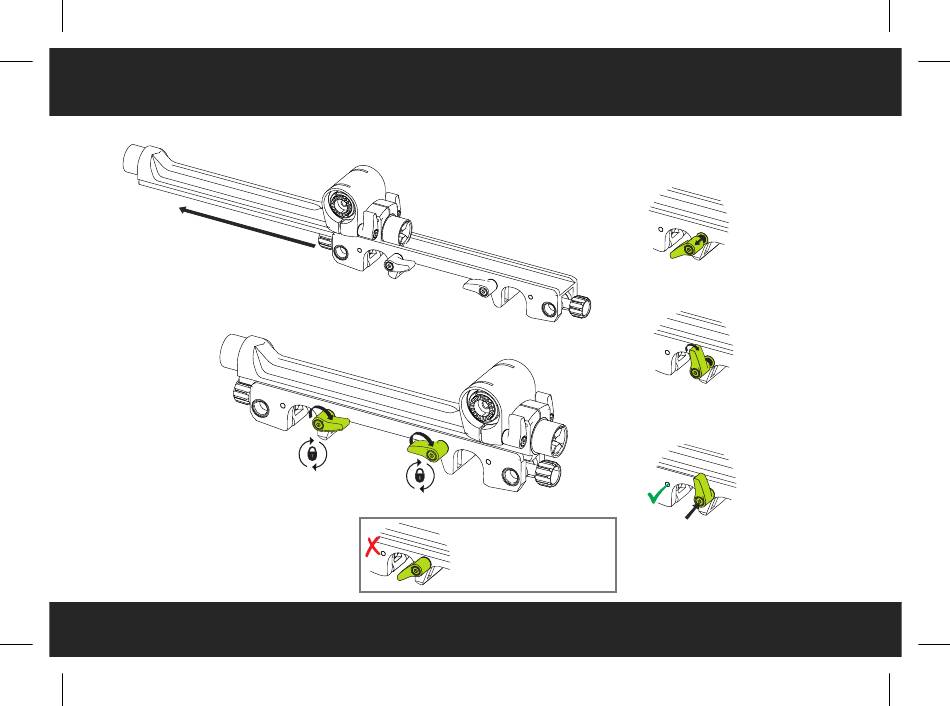

Slide the studio rod bridge*
onto the main bridge.
2
Secure the studio rod bridge
using the two lock levers.
* The studio rod bridge is displayed throughout
this user guide for illustrative purposes only.
12
To reposition the lock levers:
a
b
c
When locked, the lock
lever must not obscure
the path of the camera rod.
Pull the lock lever
towards you.
Rotate the lock lever
to the correct position.
Push the lock lever
to secure into position.
