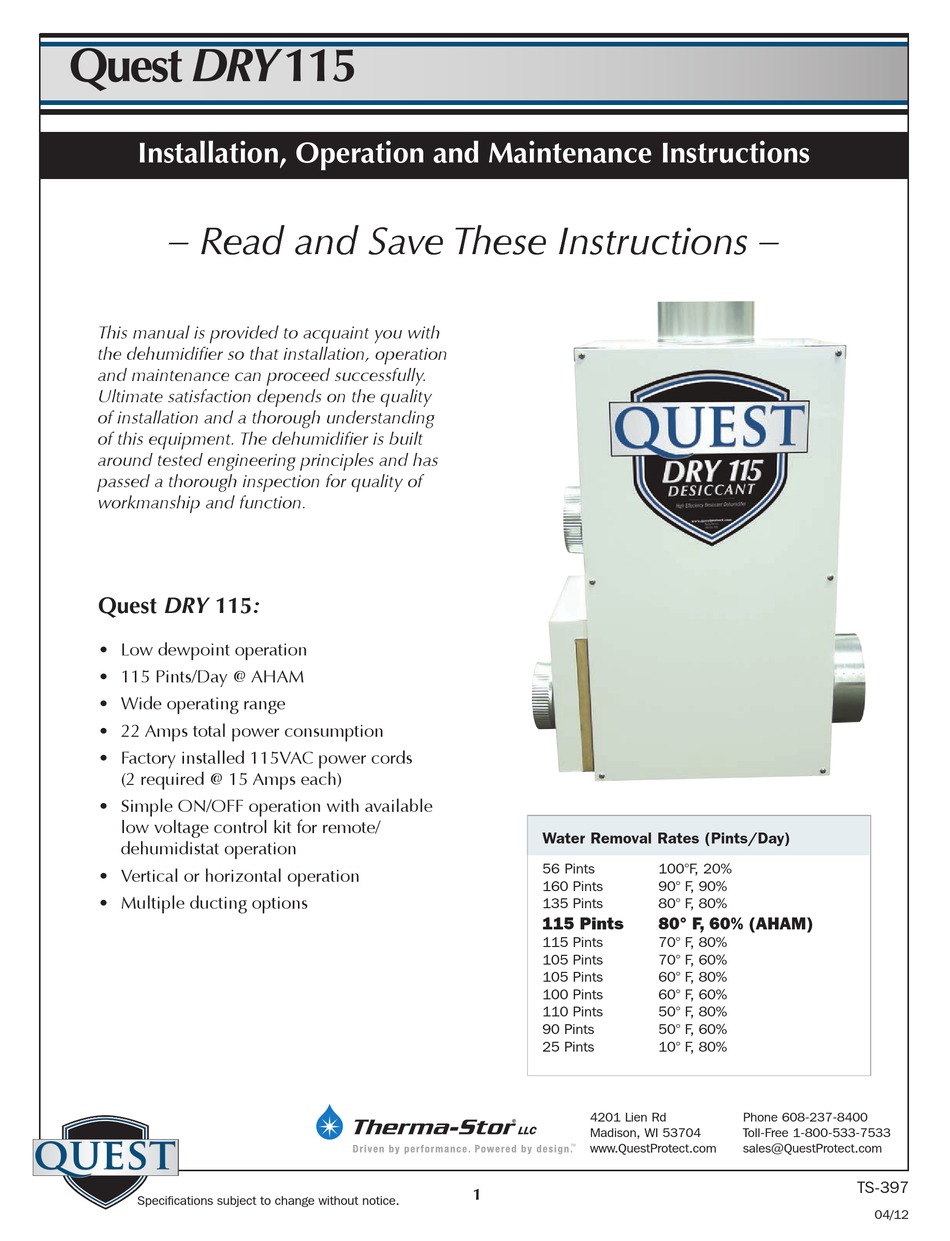

Quest DRY 115
Quest DRY 150
Installation, Operation and Maintenance Instructions
Installation, Operation and Maintenance Instructions
– Read and Save These Instructions –
– Read and Save These Instructions –
This manual is provided to acquaint you with
the dehumidifier so that installation, operation
and maintenance can proceed successfully.
Ultimate satisfaction depends on the quality
of installation and a thorough understanding
of this equipment. The dehumidifier is built
around tested engineering principles and has
passed a thorough inspection for quality of
workmanship and function.

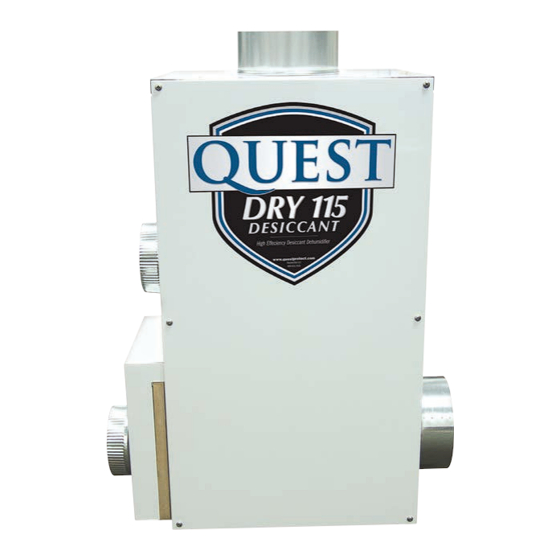

Quest DRY 115:
• Low dewpoint operation
• 115 Pints/Day @ AHAM
• Wide operating range
• 22 Amps total power consumption
• Factory installed 115VAC power cords
(2 required @ 15 Amps each)
• Simple ON/OFF operation with available
low voltage control kit for remote/
dehumidistat operation
• Vertical or horizontal operation
• Multiple ducting options
quest
quest
Specifications subject to change without notice.
Water Removal Rates (Pints/Day)
56 Pints
160 Pints
135 Pints
115 Pints
115 Pints
105 Pints
105 Pints
100 Pints
110 Pints
90 Pints
25 Pints
4201 Lien Rd
Madison, WI 53704
www.QuestProtect.com
1
100°F, 20%
90° F, 90%
80° F, 80%
80° F, 60% (AHAM)
70° F, 80%
70° F, 60%
60° F, 80%
60° F, 60%
50° F, 80%
50° F, 60%
10° F, 80%
Phone 608-237-8400
Toll-Free 1-800-533-7533
sales@QuestProtect.com
TS-397
04/12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Quest Engineering DRY 115
Summary of Contents for Quest Engineering DRY 115
- Page 1 Quest DRY 150 Quest DRY 115 Installation, Operation and Maintenance Instructions Installation, Operation and Maintenance Instructions – Read and Save These Instructions – – Read and Save These Instructions – This manual is provided to acquaint you with the dehumidifier so that installation, operation and maintenance can proceed successfully.
-
Page 2: Table Of Contents
Quest DRY 115 Installation, Operation and Maintenance Instructions Table of Contents Safety Precautions ........... 3 1. Specifications ............ 4 2. Installation ............5 2.1 E lectrical Requirements ....... 5 2.2 Inside Drying Space with ......5 Single Reactivation Outlet Duct 2.3 Inside Drying Space with ......5 Isolated Reactivation Outlet Duct 2.4 Outside Drying Space ........ 5 3. Operation ............5 4. Maintenance ............ 5 5. Wiring Diagram .......... -
Page 3: Safety Precautions
Quest DRY 115 Installation, Operation and Maintenance Instructions Safety Precautions Read the installation, operation and maintenance instructions carefully before installing and operating this device. Proper adherence to these instructions is essential to obtain maximum benefit from your Quest DRY 115. READ AND SAVE THESE INSTRUCTIONS The Quest DRY 115 can be installed in a variety of locations to meet the owner’s needs as listed below. In all cases, keep the following cautions in mind: • The Quest DRY 115 is designed to be installed INDOORS ONLY. • If used near water, the unit should be plugged into GFCI circuits • DO NOT use the Quest DRY 115 as a bench or table • Avoid discharging the process air directly at people • Reactivation outlet air MUST be discharged into a location that can tolerate high temperature, moist air. • If the reactivation outlet ductwork passes through a cold space, the duct must be insulated to prevent condensation from forming inside the duct. The Quest DRY 115 supports multi-position operation and multiple ducting options. In EVERY case the Reactivation Outlet air MUST be ducted out of the drying space and to a location tolerant of high temperature moist air (usually outside). -
Page 4: Specifications
Quest DRY 115 Installation, Operation and Maintenance Instructions 1. Specifications Part Number: 4027110 Power: 2 Circuits; 11Amps, 115VAC each 22 Amps total power consumption Kilowatts: 2.5 (63 KWh/Day) Capacity per Day: 115 Pints (80°F 60%RH) Blower: 385 CFM Process Ariflow @ 0” ESP 75 CFM Reactivation Airflow @ 0”ESP Temperature Range: 10°F to 140°F* Filters: Process Filter Size: 16” X 20” X 2” Reactivation Filter Size: 12” X 12” X 1” Reactivation Duct: 6” (Start collars included) Process Duct: 8” (Start collars included) Range: 10°F to 140°F* Warranty: 1 Year Parts and Labor *Low temperature performance is dependent on reactivation air source. -
Page 5: Installation
Quest DRY 115 Installation, Operation and Maintenance Instructions 2. Installation Moist Air 2.1 Electrical Requirements The Quest DRY 115 draws a total of 22 Amps at 115VAC. For convenience, this can be supplied by two standard 15 Amp outlets on Conditioned Space separate circuits (cords provided). The Quest DRY 115 also allows for direct wiring of electrical service, or the connection of either high or low voltage remote dehumidistat controls (sold separately). Drying Space 2.2 Inside Drying Space with Single Reactivation Outlet Duct (Simplest Hookup) • Reactivation air exhausts moisture, makeup air infiltrates uncontrolled into space Figure 2.2 Single Reactivation Outlet duct • Creates a slight negative pressure on drying space... -
Page 6: Wiring Diagram
Quest DRY 115 Installation, Operation and Maintenance Instructions 5. Wiring diagram quest quest 1-800-533-7533 www.QuestProtect.com sales@QuestProtect.com... -
Page 7: Service Parts List
Quest DRY 115 Installation, Operation and Maintenance Instructions Quest DRY 115 Installation, Operation and Maintenance Instructions 6. Service Parts List 6. Service Parts List Item Part No. Description Item Part No. Description 4025076 FAN, MOTORIZED IMPELLER, PROCESS AIR 4025076 FAN, MOTORIZED IMPELLER, PROCESS AIR... -
Page 8: Warranty
Quest DRY 115 Quest DRY 115 Installation, Operation and Maintenance Instructions Installation, Operation and Maintenance Instructions Quest DRY 115 Dehumidifier Limited Warranty Warrantor: Therma-Stor LLC 4201 Lien Rd Madison, WI 53704 Telephone: 1-800-533-7533 Who Is Covered: This warranty extends only to the original end-user of the Quest DRY 115 dehumidifier, and may not be assigned or transferred. One Year Warranty: Therma-Stor LLC warrants that, for one (1) year the Quest DRY 115 dehumidifier will operate free from any defects in materials and workmanship, or Therma-Stor LLC will, at its option, repair or replace the defective part(s), free of any charge. End-User Responsibilities: Warranty service must be performed by a Servicer authorized by Therma-Stor LLC. If the end-user is unable to locate or obtain warranty service from an authorized Servicer, the end-user should call Therma-Stor LLC at the above number and ask for the Therma-Stor Service Department., which will then arrange for covered warranty service. Warranty service will be performed during normal working...
