Opticon OPH-5000i Specification Manual

Handy terminal with bluetooth
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

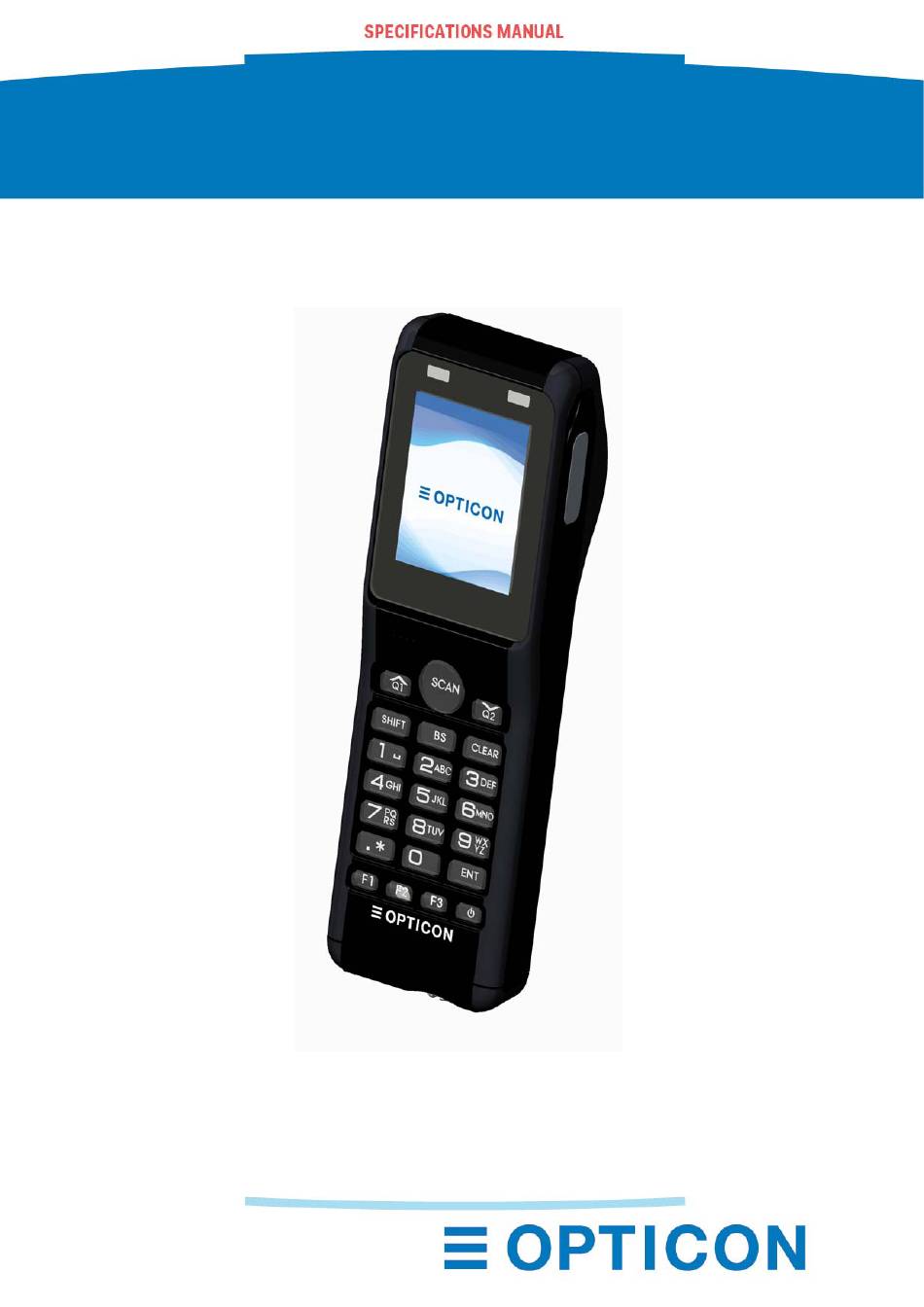

OPH-5000i
OPH-5000i
1st
Handy Terminal with Bluetooth
This manual provides specifications for the OPH-5000i Wireless
LAN Handy Terminal with imager scanner.
1
1st

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPH-5000i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Opticon OPH-5000i

Summary of Contents for Opticon OPH-5000i

  • Page 1 OPH-5000i OPH-5000i Handy Terminal with Bluetooth This manual provides specifications for the OPH-5000i Wireless LAN Handy Terminal with imager scanner.
  • Page 2 OR USING THE PRODUCT. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty.
  • Page 3 OPH-5000i Revision History Product Name : OPH-5000i Edition Date Page Section Description of Changes 2016/09/01...

  • Page 4: Table Of Contents

    OPH-5000i Contents Abstract ..........................6 Overview .......................... 6 Basic Specifications ....................... 7 Detailed View ......................... 10 Electrical Specifications ....................13 Electrical Specifications ......................13 Wireless Charging ........................13 Interface Specifications ....................13 USB Interface ......................... 13 6.1.1 Connector ........................13 6.1.2...
  • Page 5 OPH-5000i 10.1 LED Safety ..........................26 10.2 Product Safety ........................26 10.3 EMC ............................26 10.4 Other ............................28 11 RoHS ..........................28 12 Reliability ........................28 13 Precautions ........................28 13.1 Radio Law..........................29 13.2 Bluetooth ..........................29 13.3 Frequency Baud ........................

  • Page 6: Abstract

    Bluetooth. 2 Overview The OPH-5000i is compact imager scanner built-in and output scanned barcode and 2D code data to hostdevice conected by TCP/IP via wiress LAN. Bluetooth is also aveliable for output. ・ OPH-5000i is handy terminal with a numeric keypad and TFT color LCD display.

  • Page 7: Basic Specifications

    OPH-5000i 3 Basic Specifications Item Specification Note 32bit CISC/96MHz FROM 2Mbyte + 32KByte System area FROM 1Mbyte Application area It may be cleared by 16Mbyte the removal of the main battery. FROM (storage) 128Mbyte For data area only Number 10 key...
  • Page 8 OPH-5000i Item Specification Note TCP/IP, UDP, DHCP, ARP, Network stack SSL, DNS Frequency 2402 ~ 2480 MHz Specification Bluetooth Ver 2.1 compliant Communication Bluetooth 10 m Not guaranteed. distance Output level Class 2 Max output 4 dBm Profile SPP / HID...
  • Page 9 OPH-5000i Item Specification Note PDF417 : 0.169 mm Minimum resolution (mm) QR Code : 0.169 mm PCS 0.9 DataMatrix : 0.169 mm Resolution (0.169) 85~ 135 PDF417 Resolution (0.254) 65 ~ 180 Depth of field Resolution (0.212) 90 ~ 110 PCS 0.9...

  • Page 10: Detailed View

    OPH-5000i Item Specification Note Certification for Construction Design of Specified Radio Equipment Bluetooth logo certification Other MFi license Air discharge (direct): ±15 kV Conditions: distraction IEC61000-4-2 compliant Air discharge (direct): ±8 kV malfunction () is grip dimension Dimensions 136 × 44 × 30.3(22) (WDH mm)

  • Page 11: Figure 1: Detailed View

    OPH-5000i Figure 1: Detailed View...
  • Page 12 OPH-5000i Name Description Indicates operational status, such as scanning and communication. It is able to be controlled by user’s programs. Indicates scanned barcodes and operational items. MicroUSB Connecter Cap MicroUSB connector is stored. Buzzer Orifice Holes for buzzer. Strap Orifice Holes for attaching a hand strap.

  • Page 13: Electrical Specifications

    OPH-5000i 5 Ele ectrical S Specifica ations 5.1 E lectrical S Specificati ions upply Voltag : 4.5-5.5V us-power (Cl lass) : Hi-Powe er ( 500mA m max ) urrent consu umption : Less tha an 500mA 5.2 W Wireless C...

  • Page 14: Bluetooth

    OPH-5000i 6.2 Bluetooth The specifications of the OPH-5000i Bluetooth interface are as follows: Specification : Bluetooth Ver 2.1 compliant Frequency : 2402 MHz ~ 2480 MHz Communication distance : 10 m Output level : Class 2 (max 4 dBm) Implemented profile...

  • Page 15: Optical Specifications

    OPH-5000i Total 928 byte NDEF Record #1 type: ”application/vnd.bluetooth.ep.oob” OOB data length: 8 Byte MAC address: 00:12:6A:xx:xx:xx Recorded Contents: Record #2 type: ”T” TEXT data length: 15 Byte TEXT data: ”00126Axxxxxx” Free area Reserved area *xx differ depending on the product.

  • Page 16: Aiming Pattern

    OPH-5000i 7.2 A Aiming Pat ttern The aiming is s used for th e following p purpose: 1. Fill light to o recognize th he appropria ate reading ra ange. 2. Fill light w hen auto trig gger is used.

  • Page 17: Technical Specifications

    OPH-5000i 8 Technical Specifications Aim the laser light at the center of a code to scan it. For long distance scanning, ambient light entering the angle of view may affect the scanning performance. The conditions for technical specifications are as follows, unless otherwise specified in each section.
  • Page 18 OPH-5000i 2D Codes <PDF417> Resolution Error Correction Size (mm) No. of Character 0.169 mm (6.7 mil) 23 × 10 Level-3 0.254 mm (10 mil) 35 × 15 <QR Code: Model-2> Resolution Error Correction Size (mm) No. of Character 0.212 mm (8.4 mil) 5 ×...

  • Page 19: Scan Area And Depth Of Field

    OPH-5000i 8.2 Scan Area and Depth of Field The scan area is the depth of field range, measured from the front edge of the scanner, swept over the entire scan arc. Resolution 0 127mm Resolution 0 254mm Resolution 0 508mm...

  • Page 20: Printed Contrast Signal (Pcs)

    OPH-5000i 8.3 Printed Contrast Signal (PCS) 0.2 or higher <Conditions> : 32% and higher (70% or higher reflectivity of space and quiet zone) Distance : 125mm from the front edge of the scanner Barcode Sample : UPC specified in Chapter 8. (Resolution: 0.33 mm, PCS: 0.3) MRD = Minimum reflectance of white bar - Maximum reflectance of black bar Reflectance of white space –...

  • Page 21: Pitch, Skew And Tilt

    OPH-5000i 8.6 Pitch, Skew and Tilt Pitch : α = ±50° Skew : β = ±50° Tilt : γ = ±180° <Conditions> Barcode Sample : 0.33 mm Code 39 specified in Chapter 7.1 Distance : 125 mm from the front edge of the scanner Curvature : R = ∞...

  • Page 22: Motion Tolerance

    OPH-5000i 8.8 Motion Tolerance UPC 100% can be read when it is moving at 2m/s. <Conditions> Ambient Temperature and Humidity : Room temperature and Room humidity Ambient Light : 500 ~ 1000 lux Distance : 125 mm from the front edge of the scanner PCS (1D and 2D) : 0.9 or higher...

  • Page 23: Environmental Specifications

    OPH-5000i 9 Environmental Specifications 9.1 Temperature Scanning performance is guaranteed when the ambient temperature around the scanner is within the following ranges: Operating Temperature : -10 ~ 50 °C Storage Temperature : -20 ~ 60 °C Please charge when the temperature is between 0 and 40°C. When the temperature is over 40°C, charging may stop to prevent battery breakdown.

  • Page 24: Dust And Drip Proof

    OPH-5000i 9.4 Dust and Drip Proof IEC IP54 equivalent Protection against solid objects: Level 5 equivalent (Dust proof type) Prevent dust ingress to inside. Even if slight dust intrusion will not inhibit normal operation. Protection against liquids: Level 4 equivalent (Splash proof type) Protected against water splash from any direction.

  • Page 25: Drop Impact Strength (In Individual Packaging)

    OPH-5000i 9.8 Drop Impact Tolerance (in individual packaging) There shall be no sign of malfunction after the following drop test. Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges, and 6 faces, from a height of 150 cm onto a concrete floor.

  • Page 26: Regulatory Compliance

    OPH-5000i 10 Regulatory Compliance 10.1 LED Safety IEC 62471:2006 Exempt_Group 10.2 Product Safety EN60950-1:2005 IEC60950-1:2006 10.3 EMC ・EN 55024:2010 ・EN 55032:2012+AC: 2013 ・EN 301 489-1 V1.9.2 ・EN 301 489-17 V2.2.1 ・EN 300 328 V1.9.1 ・EN 302 291-2 V1.1.1 CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
  • Page 27 OPH-5000i FCC Part 15 Subpart C, Subpart B Class A Federal Communications Commission Notices This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 28: Other

    ・ Do not place pieces of metal such as coins, nor attach metallic foil to the area where the charging coil is located. Also, do not affix anything which prevent from placing OPH-5000i to cradle. ・ Although surface of LCD is tempered glass, but do not drop or hit any hard object on purpose.

  • Page 29: Radio Law

    OPH-5000i 13.1 Radio Law This product qualifies as specified radio equipment for radio stations of 2.4 GHz band data communication system and has obtained the Certification for Construction Design of Specified Radio Equipment. Therefore, radio station license is not required in Japan.

  • Page 30: Product Labels

    OPH-5000i 14 Product Labels The product labels are affixed to the scanner as shown below. Figure 11: Product Label Position...

  • Page 31: Packaging Specifications

    OPH-5000i 15 Packaging Specifications 15.1 Individual Packaging Assembled package size: 125 × 112 × 40 (WDH mm) Weight: Approx. xx kg Packing bag 梱包袋： Wrap twice 2回、巻き付ける Poly bag ﾈｯｸｽﾄﾗｯﾌﾟ Neck strap MicroUSB cable MicroUSBｹｰﾌﾞﾙ Place as the イラストの向きで drawing on top.
  • Page 32 OPH-5000i...

  • Page 33: Collective Packaging

    OPH-5000i 15.2 C Collective P Packaging 00pcs per bo ssembled pa ackage size : 595 × 520 0 × 245 (WD H mm) Weight: Appro ox. xx kg ote: ‘Ro mark’ on the trays a and boxes ind dicates that the...

  • Page 34: Physical Features

    OPH-5000i 16 Physical Features 16.1 Dimensions 136 × 44 × 30.3(22) (DWH mm) () is grip dimensions 16.2 Weight Approx. 120 g (excluding accessories) 16.3 Mechanical Drawing Unit: mm Figure 14: Mechanical Drawing...

  • Page 35: Supported Symbologies

    OPH-5000i 17 Supported Symbologies 17.1 Default Setting The scanner is set to default by reading the following menu label. Default @MENU_OPTO@ZZ@SO@ZZ@OTPO_UNEM@ 17.2 Supported Symbologies 17.2.1 1D Barcodes Minimum Code type Default Remarks length ○ UPC Add-on 2 UPC Add-on 5 EAN(JAN) ○...

  • Page 36: Gs1 Databar, Composite Code

    OPH-5000i 17.2.2 GS1 Databar, Composite Code Code type Default Remarks GS1 DataBar ・GS1 DataBar Omnidirectional ・GS1 DataBar Truncated ○ ・GS1 DataBar Stacked ・GS1 DataBar Stacked Omnidirectional GS1 conversion (setting required) GS1 DataBar Limited ○ GS1 DataBar Expanded ・GS1 DataBar Expanded ○...
