Opticon OPH-1003 Quick Start Manual

OPH-1003
• Read this quick start guide carefully before installing and/or using this product.
• Keep this quick start guide for future reference and store in a safe place.
• This quick start guide may be revised or withdrawn at any time without prior notice.
• This quick start guide may not, in whole or in part, be copied, photocopied, reproduced, translated or con-
verted to any electronic or machine readable form without prior written consent of Opticon.
• Trademarks used are property of their respective owners.
• Under no circumstances shall Opticon be held responsible for any special, incidental, consequential or
indirect damages howsoever caused.
Caution and Warning
1. Laser Safety
• Do not stare into the laser beam.
2. Handling Instructions
【 OPH-1003 OPH-1003 】 】 】
• Do not attempt to disassemble, modify or update this device.
• Operating the scanner while operating machinery or a vehicle can be distracting.
• Do not drop this product or put heavy items on this product.
• Do not insert foreign substances into the device.
• Do not use this product in the following areas:
- In areas exposed to direct sunlight for long periods of time.
- In dusty environments.
- Near water or other liquids, or in extremely high humidity.
- Near heat sources, such as radiators, heat registers, stoves, or other types of devices that produce heat.
- Near microwaves, medical devices, or low-power radio stations.
• When cleaning this product, rub gently with either a soft dry cloth or a damp cloth with mild detergent.
Battery Pack Battery Pack
【 】 】 】
• Do not attempt to disassemble this battery.
• Do not expose the battery pack to liquids or allow the battery contacts to get wet.
• Do not expose the battery pack to heat sources including other devices that produce heat.
• Do not short the power leads on the battery pack. If the (+) and (-) terminals come in contact with metals
(such as a necklace or hairpin), a short-circuit will occur.
• Do not load the battery pack with its (+) and (-) terminals reversed.
• Check the local regulations for proper battery disposal.
Before Getting Started
What's in the Box
■
Confirm that you have the following items before getting started:
No. Item
1 Portable Terminal A laser portable terminal with a barcode scanning feature.
2 Lithium-ion Battery Pack Designated battery pack for the OPH-1003.
3 Strap
4 Quick Start Guide Provides product information and instruction guide.
* The number of accessories may differ depending on the product specification.
Please contact the nearest dealer if accessories are damaged or missing.
Copyright
Quick Start Guide
Introduction
Notice
(Please refer to the specification manual and instruction guide for details.)
Function
©
2007, Opticon All rights reserved.
OPH-1003 Basic Specifications
■
Parameter Specifications
Physical Size (W) 55 × (D) 23 × (H) 136 mm Max
Features
Weight 140g Max (excluding battery)
Color
Black
Control 32bit RISC CPU
Section Built-in ROM : N/A
MAIN CPU
Built-in RAM : 64KB
Clock frequency : 24MHz, 12MHz, STOP
External FLASH ROM 2MB
Memory
SRAM 2MB
ExtendedFLASHROM 64MB
LCD Material FSTN semi-transparent LCD
Section
Backlight White LEDs
Active Area
33.58mm × 8.38mm
Number of 112 dots × 128 dots
Dots Dot pitch : 0.30mm
Other Display
LED Bi-color LED (Red and Green)
Section
Buzzer Tone and loudness can be configured.
Operation Section Keys 22 keys
Scanning
Light Source Red laser diode
Section
Wavelength 650 ± 10nm
Light Output 1mW or less
Scan Rate
100scan / sec
JAN/UPC/EAN (WPC) incl. add on,
Chinese Post, Codabar/NW-7, Code
11, Code 39, Code 93, Code 128,
Supported IATA, Industrial 2of5, Interleaved
Symbologies 2of5, ISBN-ISMN-ISSN, Korean Postal
Authority code, Matrix 2of5, MSI/
Plessey-UK/Plessey, RSS, S-Code,
Telepen, Tri-Optic, Composite codes
Power Main Power Supply Lithium-ion battery (3.7V, 1100mAh)
Supply
Backup Power Supply Lithium secondary battery
Section
Operating Time 50 hours
Data Retention Time 7 days
Comm. IrDA Ver1.2
IrDA
Section Baud rate : 2400bps to 115.2kbps
Clock Real Time
Support year, month, day, hour,
Section Clock (RTC) minute, second. (leap year supported)
Durability Operating Temp. -10 deg. C to 50 deg. C
Operating Humidity 20% to 85% (non-condensing)
Storage Temp. -20 deg. C to 60 deg. C
Storage Humidity 20% to 85% (non-condensing)
Charging Temp. 0 deg. C to +40 deg. C
Ambient Incandescent Light : 4,000 lx
Light Immu- Fluorescent Light : 4,000 lx
nity Sunlight : 80,000 lx
Dust- and Drip-proof IP54
Shock En- Dropped 18 times onto concrete from a
durance height of 150cm with no defects found.

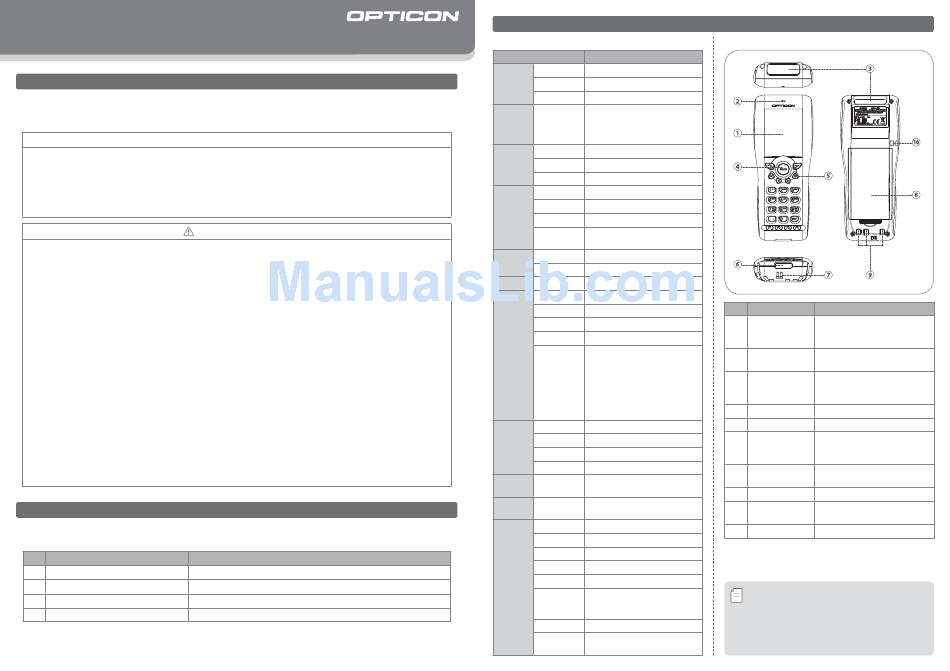

Overview
Detailed View
■
No. Part Function
Indicates the status of program
① LCD execution, scanned data and so
on.
Status LED Alerts users the status of scanning
②
(Red and Green)
operation and data communication.
The scan engine emits a laser beam
③ Optical Window through the optical window while
scanning a barcode.
④ SCAN Key Starts a barcode scanning operation.
POWER Key Turns ON or OFF the power.
⑤
IrDA This portable terminal communicates
Communication with the designated cradle through
⑥
Window the IrDA communication window.
Buzzer sounds through the buzzer
Buzzer Hole
⑦
hole.
⑧ Battery Cover Protects the battery pack.
Charging Electrical terminals for power distri-
⑨
Terminals bution and power management.
⑩ Strap Hook
・ To avoid communication problems between the portable
terminal and a cradle, keep the IrDA communication
Memo
window clean.
・ The IrDA communication performance may decline The IrDA communication performance may decline
due to excessive ambient light especially under
strong sunlight or inverted fluorescent light.
