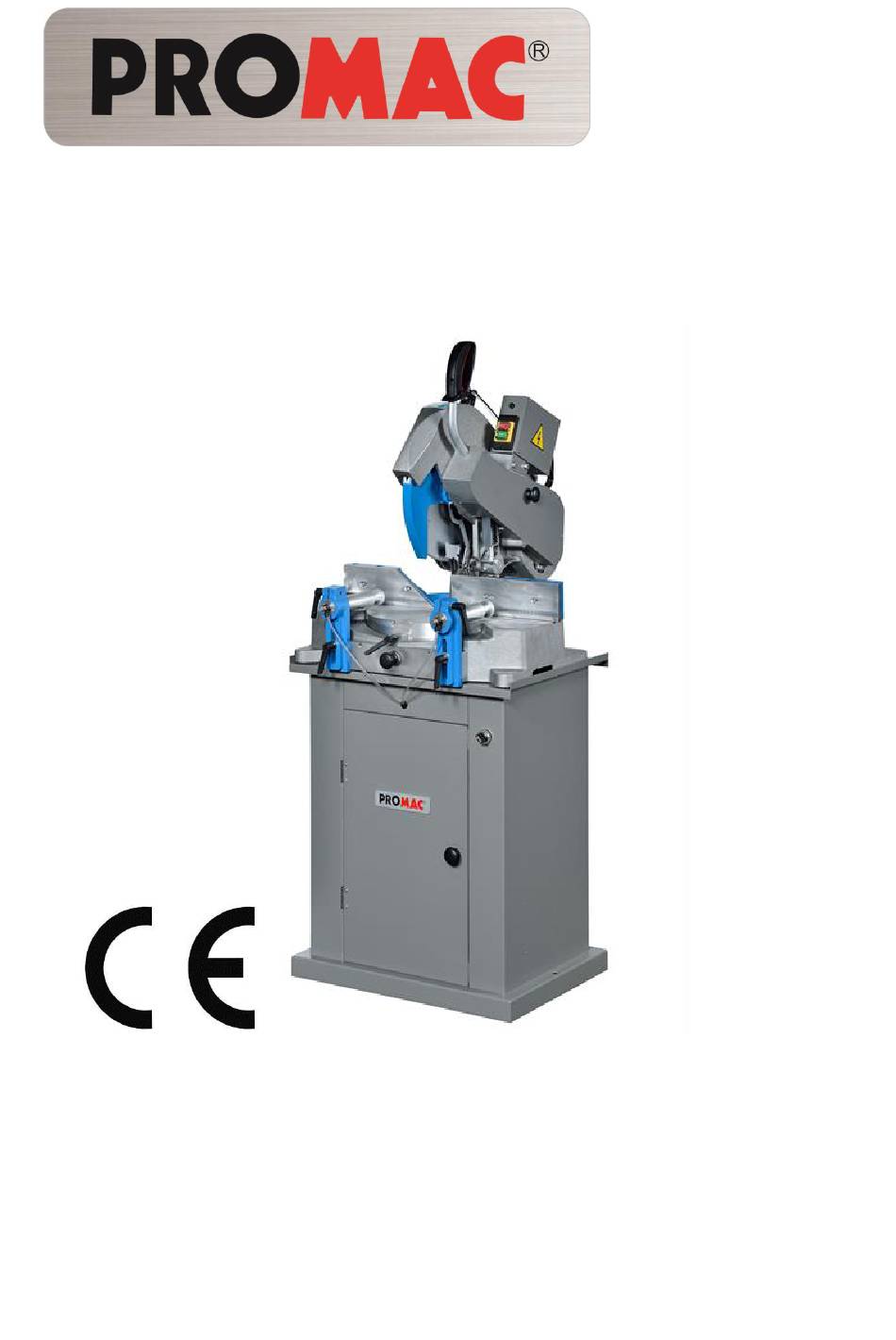

Operating Instructions and Parts Manual
Miter Circle Saw
Model SY-350-ALU
Schweiz / Suisse
JPW (TOOL) AG.
Tämperlistrasse 5
CH-8117 Fällanden Switzerland
www.promac.ch
France
TOOL France / PROMAC
57, rue du Bois Chaland, Z.I. du Bois Chaland
case postale 2935 FR-91029 Evry Cedex
www.promac.fr
1
2016.03
Advertisement
Table of Contents
Related Manuals for Promac SY-350-ALU
Summary of Contents for Promac SY-350-ALU
- Page 1 Operating Instructions and Parts Manual Miter Circle Saw 2016.03 Model SY-350-ALU Schweiz / Suisse France JPW (TOOL) AG. TOOL France / PROMAC Tämperlistrasse 5 57, rue du Bois Chaland, Z.I. du Bois Chaland CH-8117 Fällanden Switzerland case postale 2935 FR-91029 Evry Cedex www.promac.ch www.promac.fr...
- Page 2 CE-Conformity Declaration Product: Miter Circle Saw SY-350-ALU Brand: PROMAC Manufacturer: JPW (Tool) AG, Tämperlistrasse 5, CH-8117 Fällanden, Switzerland On our own responsibility we hereby declare that this product complies with the regulations * 2006/42/EC Machinery Directive * 2014/35/EU Low Voltage Directive...
-
Page 3: Table Of Contents
Table of Contents Table of Contents……………………….…………………………………………………3 Warning………………………………………………..…………………………………4~5 Specifications………………………………………………..…………………………..6 Shipping Contents…………………………..……………………………………………..7 Contents of the Carton…………….……………………………………………………7 Assembly……………………………………………….…………………………………..7 Assembly…………………………………………………………………………………7 Controls and Indicators……………………………………………………………………8 Foreword…………………………………………………………………………………8 Warranty…………………………………………………………………………………8 Communication…………….……………………………………………………………8 Machine identification…………..………………………………………………………8 Use and limitations to use…………………...…………………………………………8 Expected machine life……………….…………………………………………………8 Machine disposal………………..………………………………………………………8 Operations………………………………………………………………………………….9 Cutting operation……………………………………………………………..…………9 Setting and Adjustments…………………………………………………………………10 Adjustment of the table angle……………………………………………….…………10 Adjusting the arm angle……………………………………….………………………11 Blade mounting and/or replacement……………………………….……………12~13... -
Page 4: Warning
5. Do not use this band saw for other than its intended use. If used for other purposes, PROMAC, disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use. - Page 5 17. Provide for adequate space surrounding work area and non-glare, overhead lighting. 18. Keep the floor around the machine clean and free of scrap material, oil and grease. 19. Keep visitors a safe distance from the work area. Keep children away. 20.
-
Page 6: Specifications
- - SAVE THESE INSTRUCTIONS - - Specifications Model ............................SY-350-ALU Stock Number ..........................SY-350-ALU Cutting Capacity Round at 90° (mm) ..........................100 Round at 45° (mm) ..........................100 Square at 90° (mm) ..........................100 Square at 45° (mm) ..........................100 Rectangle at 90°... -
Page 7: Shipping Contents
Shipping Contents Contents of the Carton Machine body (A) FIG 2 Backgage Seat Right Plate (B) FIG 3 Operating Instructions/Parts List (not shown) Fig 3 Fig 2 Assembly Assembly You will replacement an vise plate as a parts in side of machine stand. Attention: The vise plate only service for 90 degree cutting (saw arm angle). -
Page 8: Controls And Indicators
Controls and Indicators Voltage & frequency of the machine Keep this manual in a good state and Name of the dealer from which the available at a close distance from the machine was purchased. machine. Description of the defect found, if any description of the type of operation carried out working hours per day. -
Page 9: Operations
Operations Cutting operation 1. Connect the pressure-air supply on the plug C (Fig 5). 2. Clamp the material to be cut firmly to the working base by turn on the switch D (Fig 6) keeping it pressed against the fence so that it cannot move during the cutting operation. -
Page 10: Setting And Adjustments
Setting and Adjustment Adjustment of the table angle The turntable can be turned right or left. It is semi automatically blocked at 15 degree, 22-1/2 degree, 30 degree, 45 degree and in center position at 90 degree. In order to turn the table to these positions, first release knob H (Fig 8) if it is tightened. -
Page 11: Adjusting The Arm Angle
Adjusting the arm angle The saw-motor arm can only be tilted leftwards to a maximum angle of 45° (end of the stroke), but the turntable can be tilted to any angle. The arm is tilted as follows: 1. Unlock the screw, L (Fig 10), at the back of the machine. -
Page 12: Blade Mounting And/Or Replacement
Blade mounting and/or replacement For this operation, wear work gloves and always pull the plug out of its socket before beginning your work (Fig 12). The blades are mounted or replaced as follows: 1. If the arm is locked in its lowered Fig12 position, release it by unlocking knob M (Fig 13) and guide it to its... - Page 13 3. Block the drive shaft from its end by fitting a 6 mm setscrew P (Fig 16) wrench inside the center hole of the belt guard and loosen the left screw S (Fig 17) with the 8 mm hex wrench Q (Fig 16). 4.
-
Page 14: Maintenance
Maintenance Other risks Maintenance must be carried out by qualified staff. The various operations In spite of the adopted security for the ordinary and extra ordinary directions, some other risks could maintenance are indicated in the last remain. pages of this manual. 1. -
Page 15: Troubleshooting
Troubleshooting Problem Probable Cause Solution Incorrect lubricant/coolant Ensure proper coolant flow. fluid Check the cutting speed, feed speed and air Material too hard pressure parameters and the type of blade you are using. With a new blade it is necessary to start cutting at half feeding speed. - Page 16 Troubleshooting Check: the cables, plug and socket. Also check Electrical power supply that the motor connections are in place. Check that the voltages are present both on the Transformer input and output. Otherwise replace. Check that the phases in it are present both on the input and output, that it is not jammed, that it Contactor closes when powered and that it is not causing...
-
Page 17: Saw Assembly Drawing (1~2)
Saw Bow Assembly Drawing-1... - Page 18 Saw Bow Assembly Drawing-2...
-
Page 19: Stand Assembly Drawing
Stand Assembly Drawing... -
Page 20: Saw And Stand Assembly Parts
5 ....SY-350-ALU-05 ..Screw ..............M5x16 ......4 6 ....SY-350-ALU-06 ..Backgage Seat Left Plate ................ 1 7 ....SY-350-ALU-07 ..Backgage Seat Right Plate ........45 degree ....1 7-1 .... SY-350-ALU-07-1 ..Backgage Seat Right Plate ........90 degree ....1 8 .... - Page 21 92 ..... SY-350-ALU-92 ..Blade Outer Cover ................... 1 93 ..... SY-350-ALU-93 ..Blade Outer Cover Support ..............1 94 ..... SY-350-ALU-94 ..Blade Outer Cover Support Spring ............1 95 ..... SY-350-ALU-95 ..Washer ..................... 1 96 .....
- Page 22 113 ... SY-350-ALU-113 ..Machine Stand ..................1 114 ... SY-350-ALU-114 ..Power Knob....................1 115 ... SY-350-ALU-115 ..Oil Mist Bottle ................... 1 116 ... SY-350-ALU-116 ..Oil Mist Bottle Holder ................1 117 ... SY-350-ALU-117 ..Machine Stand Door ................1...
-
Page 23: Wiring Diagram And Parts
Wiring Diagram and Parts BRAND ITEM DESCRIPTION SPECIFICATION AC 600V AZ1=1TH=20A 2KM1 Magnetic Switch For Motor S-P09-S/AC24V (Shihlin) AC3-7.5A AC-15-6A 2QM1 Main Power Switch KJD-18 400V (Kedu) AC-1-13.5A UI:380V ITH:10A 2SB1 Trigger Switch CMV100D AC-15 DC-13 CE Motor 3Ph 400V 50Hz 2HL1 Pilot light 24V DC...
