B. Battery Installation
Press button to see
Battery charge level.
4 LED 100% charge
3 LED 75%
2 LED 50%
1 LED 25%
Use Bay Chargers or
AC/DC Power
Adapter to charge.
Please contact your Printek
Sales representative for price
and availability.
C. Charge Battery
Uncover the printer ports and plug in your AC power adapter to the Power port (must be a Dascom-
supplied accessory). The yellow LED will show solid ON while the printer battery is charging.
D. Power On
Depress the Power button on the control panel. The green LED and the red LED will both be lit while
the printer is going through its startup sequence (about 10 seconds). The red LED will go off, leaving
the green LED on to indicate the printer is ready to print.
5
www.dascom.com

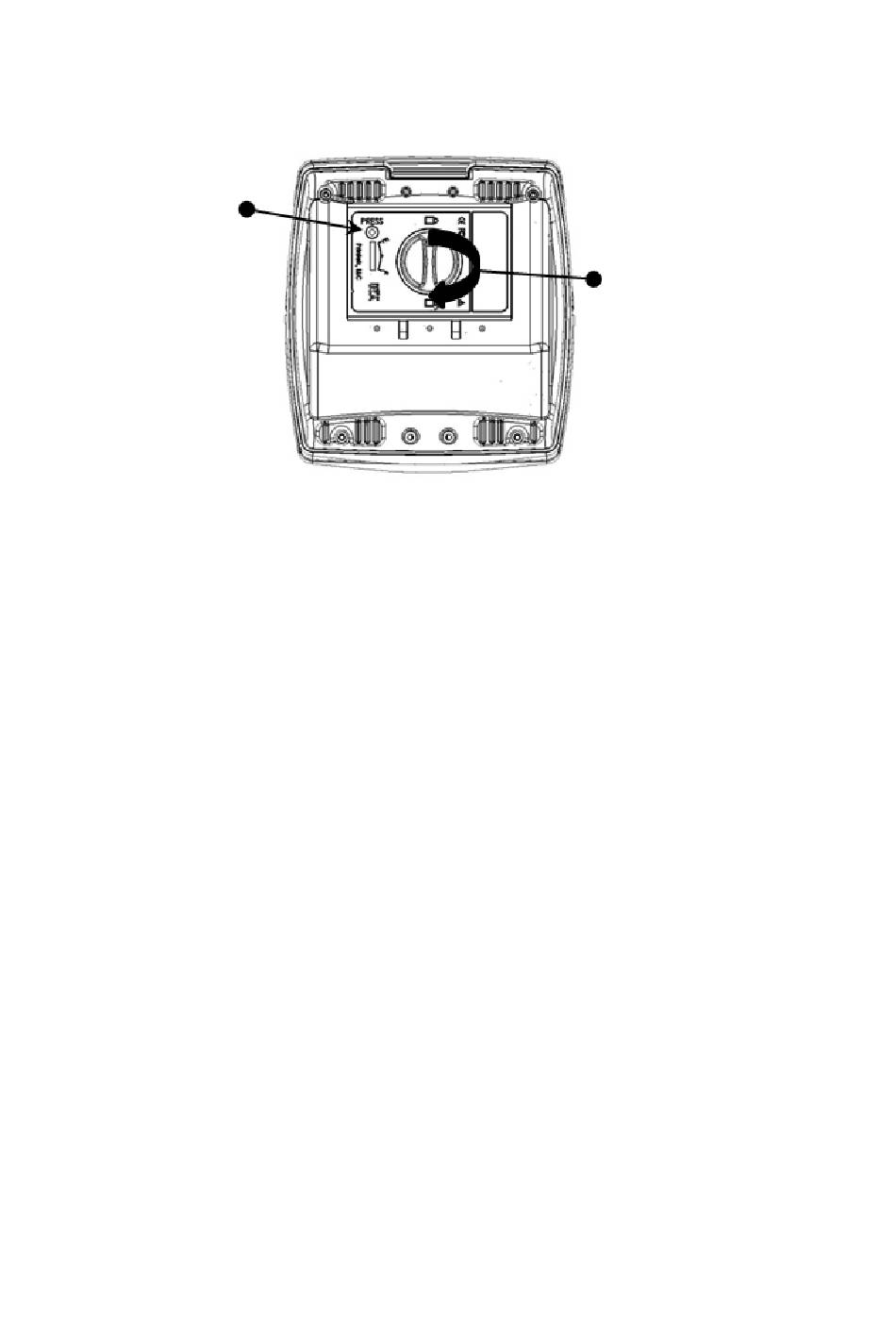

Loosen hand strap
(not pictured) to
access battery
door.
0
Rotate knob 180
to unlock battery
door.
Drop in battery.
Close battery door
and rotate knob
0
180 to lock.
