Overview
This product is designed to mount a Hitachi projector on a wall.
Installation Precautions
Installation of this product requires special technical skills. Ask your dealer or service center (for details, see the
User's Manual supplied with the projector) to handle the installation work.
Be sure to observe the following instructions when installing an projector.
1. Considerable care is required in planning and performing the installation so that it will support the weight of the
projector and wall mount unit. Refer to the table listing applicable models.
2. If the temperature inside the projector gets too high, the temperature sensor will activate and turn off the projector
to prevent damage. Do the following to avoid an abnormally high temperature.
(1) Use the projector within the operating temperature range shown in the User's Manual.
Projector User's Manual.
location where cleaning is easy.
(4) To improve the ventilation at the exhaust port, leave a space of 30cm or more at the sides of the projector.
(5) Do not install the projector in a location exposed to sudden temperature changes, for example near air
conditioners, or where the temperature rises above 40°C.
settle on the optics and lower performance.
4. Do not install the projector in a location where the remote control sensor will be exposed to direct sunlight, other
Tools needed for installation
elongated 11mm x 41mm (0.43 × 1.61-inch) holes and 16 elongated 11mm x 33mm (0.43 × 1.61-inch) holes. The
pull-out strength required of the bolts is at least 2,000N per bolt, so determine the appropriate length of bolts
for the strength and thickness of the wall surface in order to meet this standard, and if necessary, increase the
number of bolts.

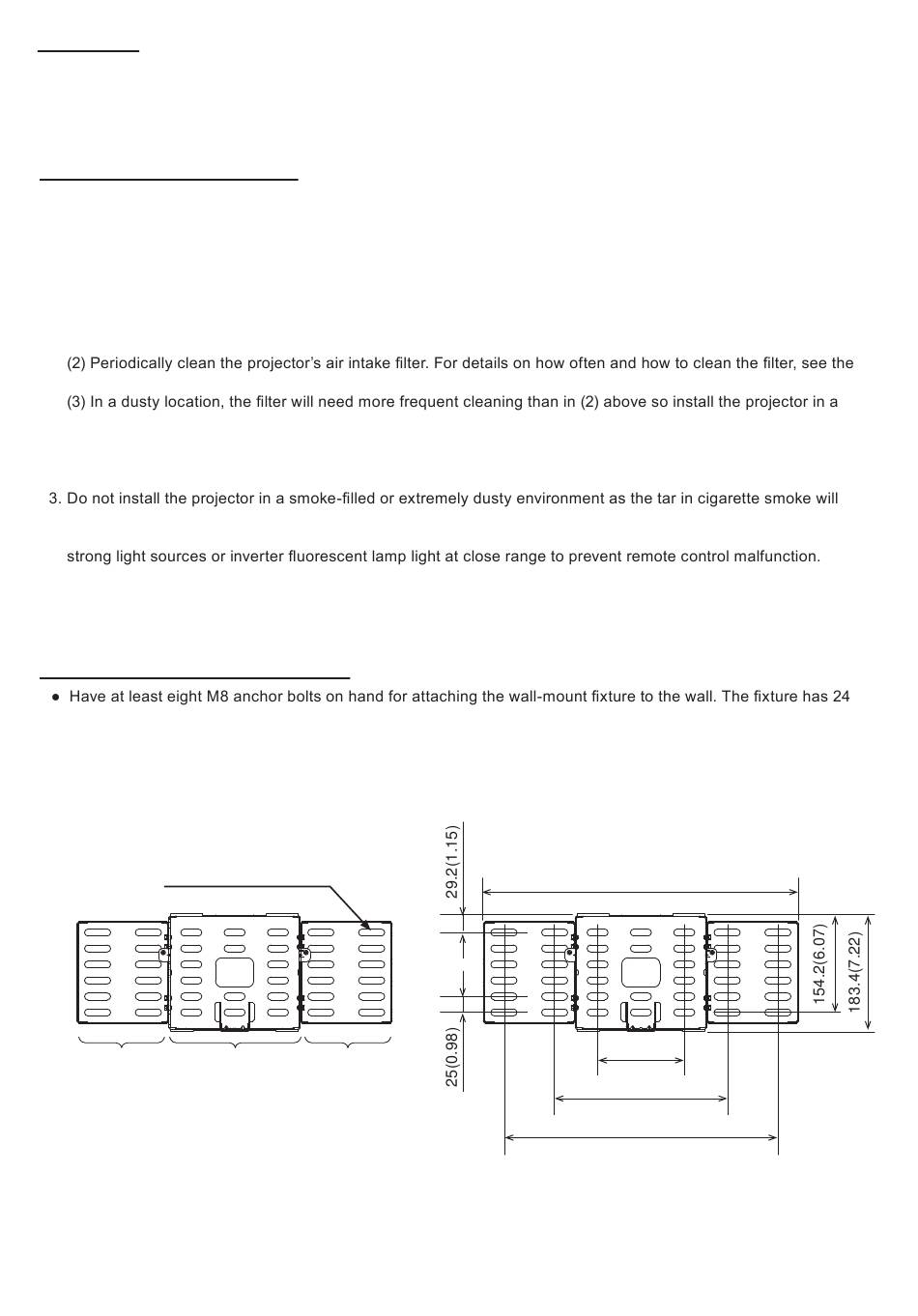

Mounting holes
11 × 41
11 × 33
oval holes
oval holes
(12 locations)
(16 locations)
(0.43 × 1.61)
(0.43 × 1.29)
HAS-WM06
11 × 41
oval holes
(12 locations)
(0.43 × 1.61)
2
Unit: mm (inches)
494.6(19.47)
136(5.35)
270.6(10.65)
430(16.93)
