Summary of Contents for Rohde & Schwarz RT-ZP1X

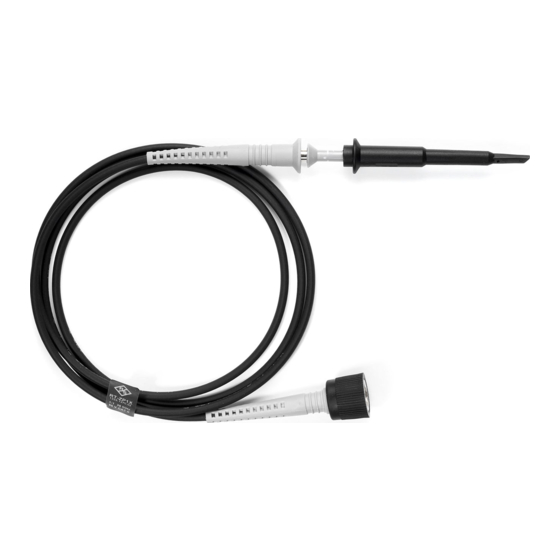

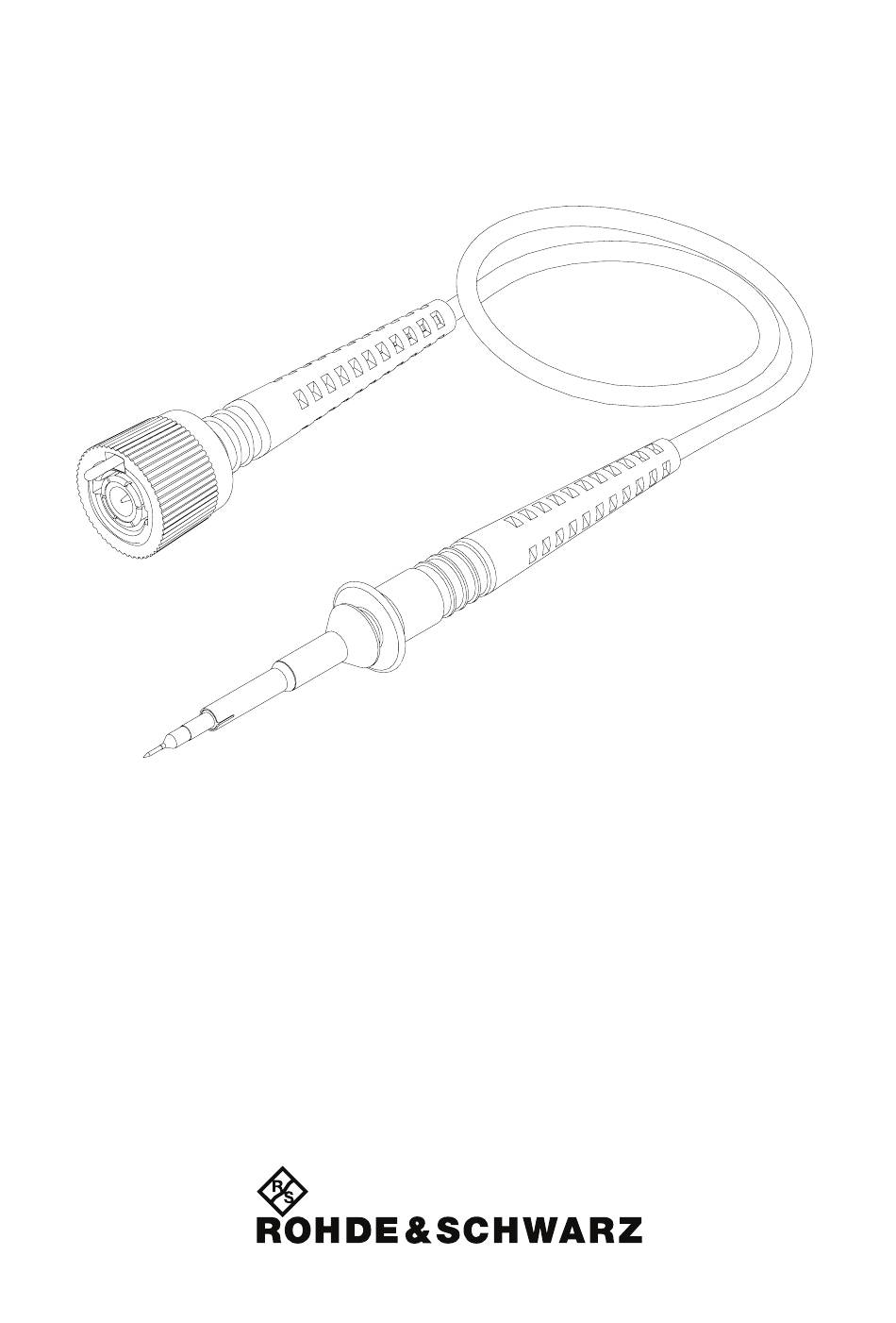

- Page 1 Manual 38 MHz Passive Voltage Probe ® R&S RT-ZP1X 1333.1370.02 Printed in Germany Test and Measurement...
-
Page 3: Declaration Of Conformity
Manufacturer R&S RT-ZP1X ROHDE & SCHWARZ For comprehensive information about Rohde and Schwarz, please visit our homepage on the R&S Internet (http://www.rohde-schwarz.com). For queries regarding technical aspects of our products, please contact our customer support at http://www.customersupport.rohde-schwarz.com. For international services, please contact our service partners at http://www.service.rohde-schwarz.com. - Page 4 IEC Measurement Categories R&S RT-ZP1X Definitions and examples (Clause 6.5.2 ) Measurement Category I Definition: Measurement category I is for measurements performed on circuits not directly connected to a mains supply. Examples: Measurements in circuits not derived from a mains supply and specially protected ( internal ) circuits derived from a mains supply.
-
Page 5: Safety Information
Safety Information R&S RT-ZP1X To avoid personal injury and to prevent fire or damage to this product or products connected to it, review and comply with the following safety precautions. Be aware that if you use this probe assembly in a manner not specified the protection this product provides may be impaired. -
Page 6: Specifications
Specifications R&S RT-ZP1X Specifications that are not defined to be guaranteed are typical and are published as general information to the user. The instrument should have warmed-up for at least 20 minutes and the environmental conditions do not exceed the probe's specified limits. -
Page 7: Probe Accessories
Probe Accessories R&S RT-ZP1X Probe Accessories for R&S RT-ZP1X Coding Rings (set) 3x4 colors IC-Cap 2.5 Spring Tip BNC Adapter 2.5 0.5 mm pitch; green gold plated 0.5 mm IC-Cap 2.5 Solid Tip Sprung Hook 2.5 0.65 mm pitch; blue CuBe 0.5 mm... -
Page 8: Scope Of Delivery
Scope of Delivery R&S RT-ZP1X The following items are included in the scope of delivery. Please check the delivery for completeness. RT-ZP1X 38 MHz passive voltage probe (Order No. 1333.1370.02) Item BNC Adapter 2.5 Coding Rings (set) 3x4 Colors Ground Blade 2.5 Copper Pad, self adhesive (2 x 2 cm) [0.79"... -
Page 9: Optional Accessories
Optional Accessories R&S RT-ZP1X The following accessory sets can be ordered separately. RT-ZA1 Accessory Kit (Order No. 1409.7566.02) Item Adjustment Tool BNC Adapter 2.5 Coding Rings (set) 3x4 Colors Copper Pad; self adhesive (2 x 2 cm) [0.79" x 0.79") Dual Adapter 2.5 to 0.8 mm sockets... - Page 10 Handling R&S RT-ZP1X Handle with care especially when fitted with the extra thin and sharp spring contact tip to avoid any injury. Note that the probe cable is a sensitive part of the probe. Do not damage through excessive bending or pulling. Avoid mechanical shock to this product in general to guarantee accurate performance and protection.
-
Page 12: All Rights Reserved
Copyright ® 2016 ROHDE & SCHWARZ All rights reserved. Information in this publication supersedes that in all previously published material. Specifications are subject to change without notice. M-RT-ZP1X Revision A-Juli 2016...
