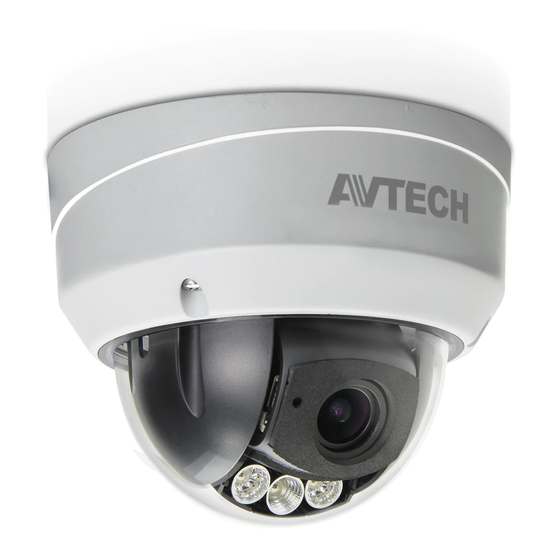

IR Dome Camera User Manual
The product image shown above may differ from the actual product.
Please use this camera with a DVR which supports HD video recording.
Please read the instructions thoroughly before using the product.
C
A
U
T
I
O
N
:
C
A
U
T
I
O
N
:
To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.
Only operate this apparatus from the type of power source indicated on the label.
The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of
such damages.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ROHS Announcement
All lead-free products offered by the company comply with the requirements of the European law on the Restriction
of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly
"lead-free" and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected
separately at the product end-of-life. This applies to your product and any peripherals marked with this symbol. Do
not dispose of these products as unsorted municipal waste.
CE Mark
This apparatus is manufactured to comply with the radio interference.
The company does not warrant that this manual will be uninterrupted or error-free. We reserve the right to revise or
remove any content in this manual at any time.
C
A
U
T
I
O
N
C
A
U
T
I
O
N
R
R
I
I
S
S
K
K
O
O
F
F
E
E
L
L
E
E
C
C
T
T
R
R
I
I
C
C
S
S
H
H
O
O
C
C
K
K
712Z
t543_V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVT543 and is the answer not in the manual?

Questions and answers

Related Manuals for Avtech AVT543

Summary of Contents for Avtech AVT543

  • Page 1 712Z IR Dome Camera User Manual The product image shown above may differ from the actual product. Please use this camera with a DVR which supports HD video recording. Please read the instructions thoroughly before using the product. To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label.

  • Page 2: Package Content

    FEATURES 1/2.8” CMOS Sensor with 1080P video output Motorized vari-focal lens for focal length and focus adjustment directly from HD CCTV DVR External alarm I/O device connection WDR to increase image recognizability in overexposure and dark areas IK10 rated, vandal-resistant case to withstand attempts to open or damage the camera IR effective distance up to 50 meters for 24-hour surveillance PACKAGE CONTENT IR dome camera...

  • Page 3: Specifications

    SPECIFICATIONS* Pick-up Element 1/2.8" SONY CMOS image sensor Number of Pixels 1936(H) × 1096(V) Video Frame Rate 1080P@30fps / 1080P@25fps Min. Illumination 0.1 Lux / F1.4 ~ F2.8, 0 Lux (IR LED ON) S/N Ratio More than 48dB (AGC OFF) Shutter Speed 1/10,000 ~ 1/7.5 (Slow shutter) Lens...

  • Page 4: Installation

    INSTALLATION Step 1: Find the installation sticker on the sales package, and paste it to where you want to install this camera. Then, drill screw holes as indicated on the sticker. Step 2: Arrange the cables to be connected as shown in depending on the installation location for Figure 2 installation later.
  • Page 5 Step 5: Adjust the viewing angle of the camera. Figure 5 To adjust the angle vertically, remove the black shield as indicated in , and rotate the knobs Figure 6 on both sides to loosen the tile mechanism and move the lens. Then, secure the tilt mechanism by fasten the knobs to fix the angle.
  • Page 6 WATERPROOF KIT FOR COAXIAL CABLE NOTE: The waterproof kit is optional. Please purchase separately. rubber bend waterproof kit for coaxial cable coaxial cable FOCAL LENGTH & FOCUS ADJUSTMENT This camera supports remote focal length and focal adjustment remotely from our HD CCTV DVR. On the DVR live view, click the channel which connects this camera to display in the full screen mode, and select to show the functions:...

  • Page 7: Camera Parameters

    CAMERA PARAMETERS On the DVR, right-click to show the main menu, and go to “ADVANCED CONFIG”  “DCCS”. In “DCCS”, select the channel which connects this camera, and click “SETUP” to enter the menu of camera parameters. ADVANCED CONFIG CAMERA DETECTION MENU SETUP...
  • Page 8 Item Description Select ON to enable the defog function in poor weather conditions such as fog, smog or smoke. The DEFOG captured image can be improved. ANGLE OF VIEW This function is used to slightly calibrate the viewing angle when the focal length and focus adjustment is completed.
