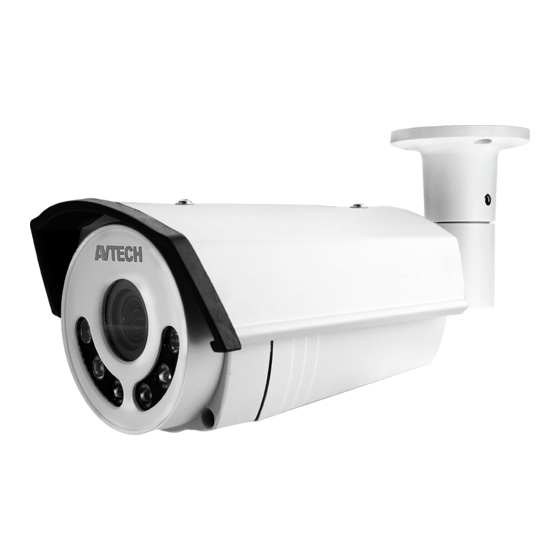

IR Bullet Camera User Manual
The product image shown above may differ from the actual product.
Please use this camera with a DVR which supports HD video recording.
Please read the instructions thoroughly before using the product.
C
C
A
A
U
U
T
T
I
I
O
O
N
N
:
:
To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.
Only operate this apparatus from the type of power source indicated on the label.
The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of
such damages.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ROHS Announcement
All lead-free products offered by the company comply with the requirements of the European law on the Restriction
of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly
"lead-free" and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected
separately at the product end-of-life. This applies to your product and any peripherals marked with this symbol. Do
not dispose of these products as unsorted municipal waste.
CE Mark
This apparatus is manufactured to comply with the radio interference.
The company does not warrant that this manual will be uninterrupted or error-free. We reserve the right to revise or
remove any content in this manual at any time.
C
C
A
A
U
U
T
T
I
I
O
O
N
N
R
I
S
K
O
F
E
L
E
C
T
R
I
C
S
H
O
R
I
S
K
O
F
E
L
E
C
T
R
I
C
S
H
C
K
O
C
K
817Z
t2406_V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVT2406 and is the answer not in the manual?

Questions and answers

みたけ食品工務
January 30, 2025

avt2406の互換カメラはどれですか

Summary of Contents for Avtech AVT2406

  • Page 1 817Z IR Bullet Camera User Manual The product image shown above may differ from the actual product. Please use this camera with a DVR which supports HD video recording. Please read the instructions thoroughly before using the product. To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label.
  • Page 2 2. Low light sensitivity of 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON) 3. EZUM series to support focus and camera parameters adjustment remotely from AVTECH HD CCTV DVR 4. Manual adjustment of the brightness of the IR LEDs 5.
  • Page 3 INSTALLATION Step 1: Loosen the screw as indicated below to move down the camera lens. Then, fasten the camera to the ceiling or wall where you want to install. 1. loosen a bit 2. Move down a bit Step 2: Adjust the viewing angle of the camera as indicated below. Vertical Rotate Horizontal...
  • Page 5 CONNECTION 1. DC12V Input Terminal Connect the power terminal of the camera to a DC 12V regulated power supply. Note: Please use the correct power adaptor, DC12V (regulated), to operate this unit. The power tolerance of this unit is DC12V ± 10%. Over maximum DC 12V power input will damage this unit. 2.
  • Page 6 FREQUENTLY-USED CAMERA PARAMETERS Note: The icons described below are available only when the camera is used with our brand’s HD CCTV DVR, and you might need to upgrade your DVR to see these icons. Click on the bottom left side of the channel, and you’ll see the icons below: Day &...
  • Page 7 MENU REMARK IRIS auto light control electronic light control EXPOSURE BRIGHTNESS 0 ~ 20 SHUTTER MANUAL FLICKER AUTO NORMAL / DEBLUR SENS-UP Used as slow shutter x2 / x4 / x8 / x16 / x32 0 ~ 10 BACKLIGHT The lower the value, the Level more light area will be covered.
  • Page 8 MENU REMARK IMAGE DEFOG MODE MANUAL / AUTO LEVEL LOW / MIDDLE / HIGH PRIVACY 16 zones could be moved to where you want to cover. ZONE NUM Choose the zone number to move and change its size. ZONE DISP H-POS Horizontal position V-POS...
