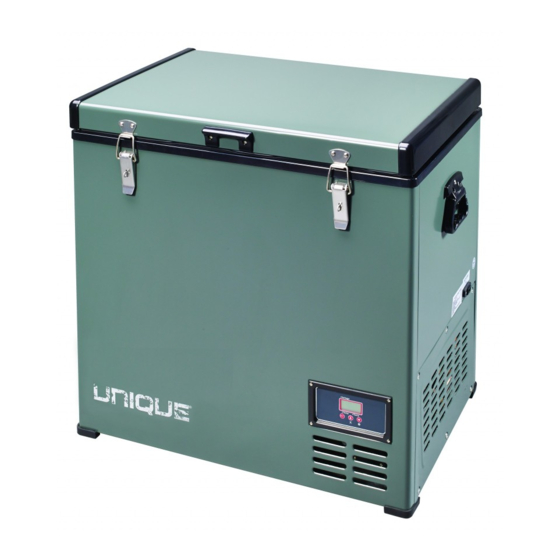

- Page 1 80L / 2.8 cu/ft AC/DC PORTABLE FRIDGE/FREEZER UGP-80L1 W OWNER’S GUIDE serial number: APR18V1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Installation and operation of your Unique portable AC/DC fridge/freezer Defrosting the cabinet UGP-80L1 W Portable fridge/freezer: features Power requirements AC power connection DC power connection Emergency overide Replacing the fuse Operation Error codes Bluetooth APP Connecting to a battery... -
Page 3: Installation And Operation Of Your Unique Portable Ac/Dc
INSTALLATION AND OPERATION OF YOUR UNIQUE PORTABLE AC/DC FRIDGE/FREEZER IMPORTANT: After transit where the fridge/freezer is on its side or back, ensure fridge/freezer is in a level, up- right position for 3-4 hours to allow compressor fluids to redistribute evenly before use. -
Page 4: Defrosting The Cabinet
INSTALLATION AND OPERATION OF YOUR UNIQUE PORTABLE AC/DC FRIDGE/FREEZER continued IMPORTANT This fridge/freezer is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under supervision or instruction concerning the use of the fridge/freezer by a person responsible for their safety. -
Page 5: Ugp-80L1 W Portable Fridge/Freezer: Features
UGP-80L PORTABLE FRIDGE/FREEZER FEATURES Internal LED light Sturdy side handles Powder coated steel exterior Stainless steel lid latches 1 x 12V Protective socket corners (40W Max) 2 x Drain plugs 2 x USB 2.1A 3 x Storage Baskets Emergency overide Digital control panel... -
Page 6: Power Requirements
POWER REQUIREMENTS The Unique UGP-80L1 W portable fridge/freezers are designed to operate on AC and DC voltage inputs. AC input Voltage is required to be 110V AC at 50 - 60 Hz DC input Voltage is required to be 12 or 24 DC +/- 10%... -
Page 7: Replacing The Fuse
IT IS NOT FOR EVERYDAY USE - ONLY FOR EMERGENCIES REPLACING THE FUSE The Unique UGP-80L1 W portable fridge/freezers are supplied with 2 additional replacement 10A fuses for the adaptor. These can be found in a plastic bag attached to the cord. If the indicator light on the DC power cord is not illuminated, it could mean that the fuse has blown. - Page 8 REPLACING THE FUSE continued IN-LINE FUSE A 15A in-line fuse is provided with this fridge in order to protect the wiring. For 12V/24V operation, use a 15A fuse. A standard automo- bile fuse is recommended - A 15A fuse is provided with this fridge/ freezer.
-
Page 9: Operation
OPERATION CO MPRE SS OR RU N LEFT BIN RI GHT BI N HIG H QUI CK NOR M USB 2 .1A BATT ERY PROTECTI ON ON/OFF COOL ING S PEE D COMPARTMENT CONTROL Individual temperature controlled compartments enable a variety of fridge/freezer combinations and also allow either compartment to COM P RE SSOR RU N... - Page 10 CO M PRESSO R RU N OPERATION L EFT BIN R IG HT BIN HIGH Q UICK R UN CO M PRESSOR Battery Protection: press and hold the voltage setting button M ED N O RM RU N CO M P RE SSOR RU N 3 seconds to adjust the Low, Middle , High voltage.
-
Page 11: Error Codes
ERROR CODE Error type can be read out on the Error Code control display Thermostat failure Err 7 (If the NTC thermistor is short- Err 6 circuit or has no connection). Thermal cut-out of electronic unit (If the refrigeration system has Err 5 been too heavily loaded, or if the ambient tempreature is high, the... -
Page 12: Connecting To A Battery
The power consumption and efficiency of your Unique UGP-80L1 W portable fridge/freezer makes it ideal to be used in conjunction with solar panels to provide recharging of the DC supply. The Unique Por- table Solar Panel system (UGP-100WSPB and/or UGP-120WSP) was designed for easy use with the fridge/freezer’s DC supply. -
Page 13: Using Portable Generators
USING PORTABLE GENERATORS It is important that the correct generator is used with your UGP- UGP-80L1 W portable fridge/freezer. An incorrect generator may result in reduced performance or damage to your appliance which may void your appliance’s warranty. If connecting directly to an AC generator, ensure that only a digital or inverter type generator is used. -
Page 14: Tips And Suggestions
• To improve the efficiency of your UGP-80L1 W portable fridge/ freezer it is better to have the cabinet as full as possible at all times. -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL UGP-80L1 W GROSS CAPACITY 80 L / 2.8 cubic feet ZONE Dual RUN TEMPERATURE -22˚C/-7.6˚F to +20˚C/68˚F (in ambient temperature between +1˚C/34˚F to +43˚C/109˚F) POWER CONSUMPTION 33 W (power consumption varies based on temp. setting) AVERAGE RUN CURRENT 2.7 amps on 12V DC... -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION THE COMPRESSOR DOES NOT The polarity of the positive and the Switch off the power and check the negative have been reversed. polarity of the connections. Check your in-line fuse within the cigarette lighter plug. The voltage is insufficient or Switch off power. -
Page 17: Wiring Diagram
UGP-80L1 W WIRING DIAGRAM... -
Page 18: Parts Diagram And List
UGP-80L1 W PARTS DIAGRAM AND LIST... - Page 19 PARTS DIAGRAM AND LIST continued ITEM # PART # DESCRIPTION UGP-80L1 W 1 Door UGP-80L1 W 2 Upper Latch UGP-80L1 W 3 Door Handle UGP-80L1 W 4 M4x8 Screw UGP-80L1 W 5 Small lid UGP-80L1 W 6 Big lid UGP-80L1 W 7...
-
Page 20: Appliance Information
APPLIANCE INFORMATION (manual copy - keep with your records) To make care and servicing of your fridge/freezer easy and efficient, please record the following information for future reference: Model: Serial Number: Purchased From: Date Purchased: NOTES... -
Page 21: Contact Us
Unique Gas Products Ltd. and by the Seller. 2. Any part of this fridge/freezer returned to the Seller or Unique Gas Products Ltd., which upon examina- tion is determined by them to have been defective in material or workmanship, will at their option be either repaired or replaced under this warranty, within 14 days from date of return to Unique Gas Products Ltd., without charge for materials/parts. - Page 22 © 2018 Unique Gas Products Ltd., 2245 Wyecroft Road, Oakville, Ontario, Canada, L6L 5L7 www.uniqueoffgrid.com...
