Summary of Contents for Unique UGP-80L1
- Page 1 80L / 120L AC/DC PORTABLE FRIDGE/FREEZER 80L / 2.8 cu. ft. 120L / 4.2 cu. ft. UGP-80L1 UGP-120L1 OWNER’S GUIDE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Installation and operation of your Unique portable AC/DC fridge/freezer Defrosting the cabinet UGP-80L Portable fridge/freezer: features UGP-120L Portable fridge/freezer: features Power requirements Using the connection guards AC power connection DC power connection Replacing the fuse Temperature settings and LCD display... -
Page 3: Installation And Operation Of Your Unique Portable Ac/Dc
INSTALLATION AND OPERATION OF YOUR UNIQUE PORTABLE AC/DC FRIDGE/FREEZER IMPORTANT: After transit where the fridge/freezer is on its side or back, ensure fridge/freezer is in a level, up- right position for 3-4 hours to allow compressor fluids to redistribute evenly before use. -
Page 4: Defrosting The Cabinet
INSTALLATION AND OPERATION OF YOUR UNIQUE PORTABLE AC/DC FRIDGE/FREEZER continued IMPORTANT This fridge/freezer is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under supervision or instruction concerning the use of the fridge/freezer by a person responsible for their safety. -
Page 5: Ugp-80L Portable Fridge/Freezer Features
UGP-80L PORTABLE FRIDGE/FREEZER FEATURES Powder coated steel exterior Stainless steel lid latches Sturdy side handles Digital control panel Protective corners Protective insulated Interior insulated cover compartment lids DC power cord Battery alligator with 10 amp fuse clips Wireless remote AC power cord... -
Page 6: Ugp-120L Portable Fridge/Freezer Features
UGP-120L PORTABLE FRIDGE/FREEZER FEATURES Dual insulated compartment lids Powder coated steel exterior Stainless steel lid latches Sturdy side handles Digital control panel Protective corners Internal LED light Protective insulated cover DC power cord Battery alligator with 10 amp fuse clips Wireless remote AC power cord... -
Page 7: Power Requirements
USING THE VELCRO CONNECTION GUARDS To ensure a secure connection between the DC power cord and the battery alligator clips or AC power cord, the ends of the Unique UGP-80L and UGP-120L power cords are supplied with velcro con- nection guards. -
Page 8: Dc Power Connection
DC POWER CONNECTION The Unique UGP-80L and UGP-120L portable fridge/freezers are supplied with a vehicle DC plug (cigarette lighter plug). It is recom- mended that this cord is not lengthened as this may result in a volt- age drop and reduced performance. -
Page 9: Temperature Settings And Lcd Display
TEMPERATURE SETTINGS AND LCD DISPLAY Both the fridge/freezer control panel and the wireless remote read- out display the following information: • the current set temperature • the actual internal cabinet temperature • the supply voltage at the inlet connection to the fridge/freezer Follow the same steps when using either the on the fridge/freezer control panel or the wireless remote read-out. - Page 10 TEMPERATURE SETTINGS AND LCD DISPLAY continued TO SET THE TEMPERATURE TO SET THE TEMPERATURE IN THE LEFT CHAMBER IN THE RIGHT CHAMBER STEP 1 STEP 1 Push the SET button once, the Push the SET button twice, the digital display on the left will digital display on the right will start to flash with the tempera- start to flash with the tempera-...
-
Page 11: 12/24V Dc Battery Management Settings
12/24V DC BATTERY MANAGEMENT SETTINGS The Unique UGP-80L and UGP-120L portable fridge/freezers are equipped with a multi-level INPUT VOLTAGE battery setting that protects your vehicle battery from excessive discharge (draining) when the fridge/freezer is connected to the 12V/24V DC input power source. - Page 12 TURNING OFF A COMPARTMENT Each compartment of the Unique UGP-80L and UGP-120L portable fridge/freezers can be turned off when not in use to save energy. To turn off the temperature in the left compartment: Push the SET button once.
-
Page 13: Connecting To A Battery
(black) to the negative terminal on the battery. Please ensure that your deep cycle battery is fully charged and is properly connected to the Unique Portable Solar Panel system (UGP-100WSP) or a power generator. -
Page 14: Using Portable Generators
USING PORTABLE GENERATORS It is important that the correct generator is used with your UGP- 80L/UGP-120L portable fridge/freezer. An incorrect generator may result in reduced performance or damage to your appliance which may void your appliance’s warranty. If connecting directly to an AC generator, ensure that only a digital or inverter type generator is used. -
Page 15: Tips And Suggestions
TIPS AND SUGGESTIONS • Fresh and frozen foods should not be stored together. Frozen surfaces can cause frost damage on fresh foods which can then lead to spoilage. It is best to put an insulating layer between these goods or to organize them into separate compartments. •... -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL UGP-80L UGP-120L GROSS CAPACITY 80 L / 2.8 cubic feet 120 L / 4.2 cubic feet ZONE Dual Dual RUN TEMPERATURE -18˚C/-1˚F to +20˚C/68˚F -18˚C/-1˚F to +20˚C/68˚F (in ambient temperature (in ambient temperature between +1˚C/34˚F to between +1˚C/34˚F to +43˚C/109˚F) +43˚C/109˚F) POWER CONSUMPTION... -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION THE COMPRESSOR DOES The polarity of the positive and the Switch off the power and check the negative have been reversed. polarity of the connections. NOT RUN Check your in-line fuse within the cigarette lighter plug. The voltage is insufficient or Switch off power. -
Page 18: Appliance Information
APPLIANCE INFORMATION (manual copy - keep with your records) To make care and servicing of your fridge/freezer easy and efficient, please record the following information for future reference: Model: Serial Number: Purchased From: Date Purchased: NOTES... -
Page 19: Contact Us
Unique Gas Products Ltd. and by the Seller. 2. Any part of this fridge/freezer returned to the Seller or Unique Gas Products Ltd., which upon examina- tion is determined by them to have been defective in material or workmanship, will at their option be either repaired or replaced under this warranty, within 14 days from date of return to Unique Gas Products Ltd., without charge for materials/parts. - Page 20 © 2015 Unique Gas Products Ltd., 2245 Wyecroft Road, Oakville, Ontario, Canada, L6L 5L7 www.uniqueoffgrid.com...
Need help?
Do you have a question about the UGP-80L1 and is the answer not in the manual?
Questions and answers

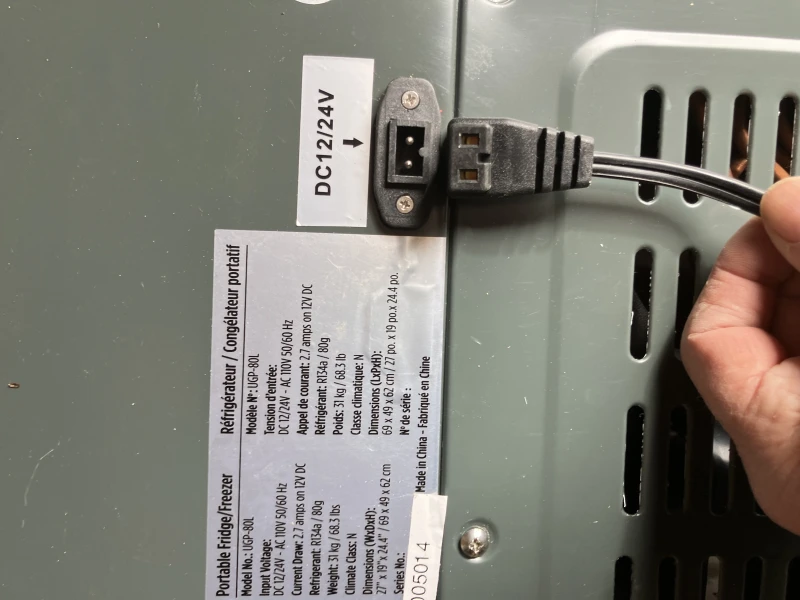

The power cord was lost and I ordered another but the plug to fridge was incorrect. I have photos.
