IntesisBox IBOX-BAC-DALI Installation Sheet page 2

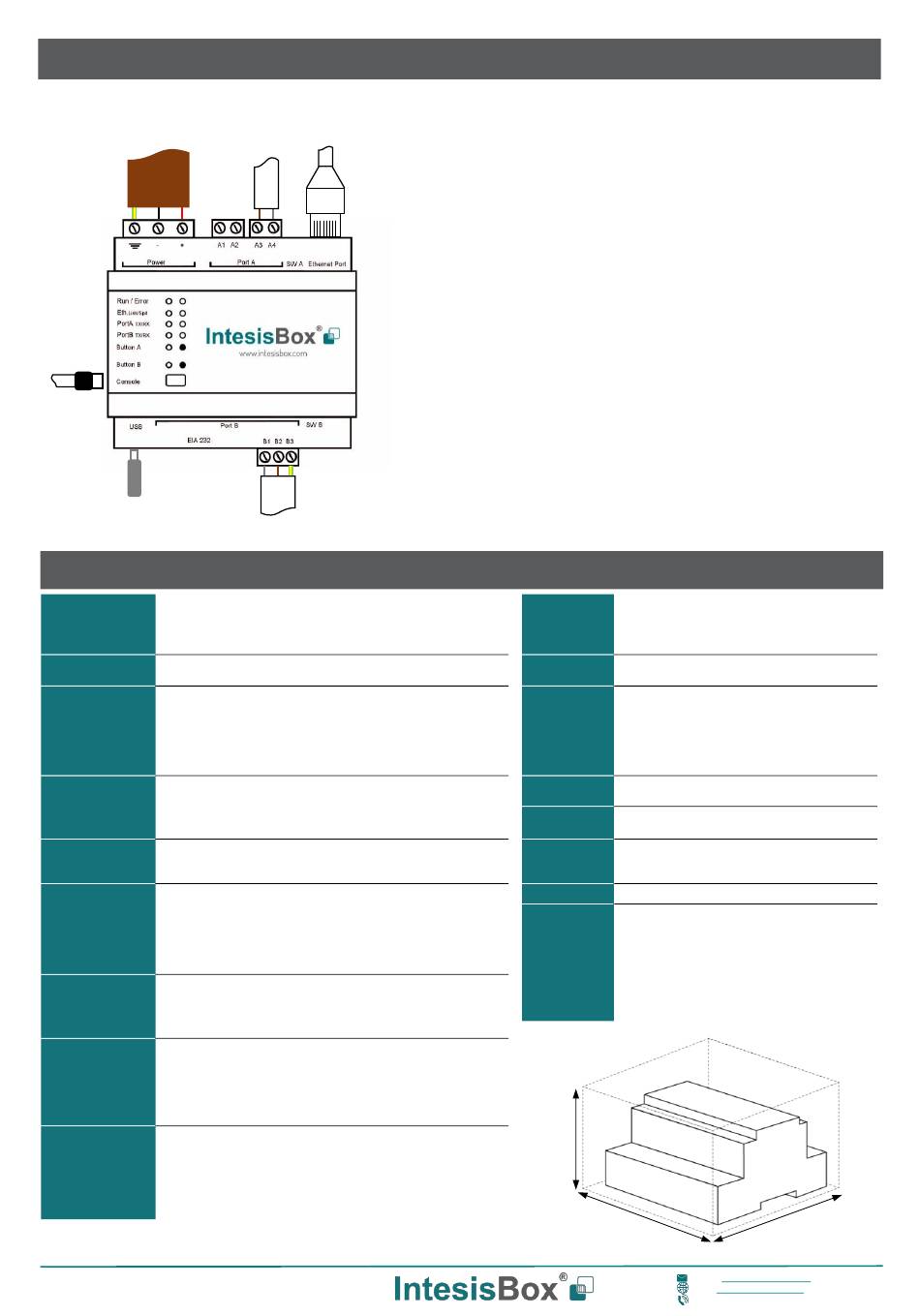

CONNECTIONS
Power Supply
Console
Port
USB
storage
ELECTRICAL & MECHANICAL FEATURES
Plastic, type PC (UL 94 V-0)
Net dimensions (d
Enclosure
Recommended space for installation (d
Color: Light Grey. RAL 7035
Wall.
Mounting
DIN rail EN60715 TH35.
Per terminal: solid wires or stranded wires (twisted or with
ferrule)
Terminal Wiring
1 core: 0.5mm
(for power supply and
2 cores: 0.5mm
low-voltage signals)
3 cores: not permitted
If cables are more than 3.05 meters long, Class 2 cable is required.
1 x Plug-in screw terminal block (3 poles)
Power Positive, Negative, Earth
24VDC
1 x Ethernet 10/100 Mbps RJ45
Ethernet
2 x Ethernet LED: port link and activity
1 x DALI port (Plug-in screw terminal block orange 2 poles)
1500VDC isolation from other ports
DALI power consumption: 240mA
Port A
Voltage rating: 16VDC
1 x Plug-in screw terminal block green (2 poles)
Reserved for future use
1 x DIP-Switch for serial EIA485 configuration:
Switch A
Reserved for future use
(SWA)
1 x Serial EIA232 (SUB-D9 male connector)
Reserved for future use
1 x Serial EIA485 Plug-in screw terminal block (3 poles)
PORT B
A, B, SGND (Reference ground or shield)
1500VDC isolation from other ports
(except PORT B: EIA232)
1 x DIP-Switch for serial EIA485 configuration:
Position 1:
ON: 120 Ω termination active
Switch B
Off: 120 Ω termination inactive
(SWB)
Position 2-3:
ON: Polarization active
Off: Polarization inactive
This information is subject to change without prior notice
IntesisBox is a registered trademark of Intesis Software S.L.U.
Power Supply
Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply.
Ethernet
If using DC power supply:
BACnet IP
DALI
Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted
(check table below). The power supply can be connected to earth but only through the negative terminal,
never through the positive terminal.
If using AC power supply:
Make sure the voltage applied is of the value admitted (24 Vac). Do not connect any of the terminals of the
AC power supply to earth, and make sure the same power supply is not supplying any other device.
Ethernet / BACnet IP (UDP) / Console (UDP & TCP)
Connect the cable coming from the IP network to the connector ETH of the gateway. Use an Ethernet CAT5
cable. If communicating through the LAN of the building, contact the network administrator and make sure traffic
on the port used is allowed through all the LAN path (check the gateway user manual for more information).
DHCP is enabled by default. When disabled, default IP is 192.168.100.246.
PortA / DALI
Connect the DALI bus to connectors A4 (+), A3 (-) of gateway's PortA. IntesisBox provides 16VDC (+/-
2%) DALI voltage to the bus.
PortB / BACnet MSTP
Connect the EIA485 bus to connectors B1 (-), B2 (+) and B3 (SNGD) of gateway's PortB. Respect the polarity.
Remember the characteristics of the standard EIA485 bus: maximum distance of 1200 meters, maximum 32
devices connected to the bus, and in each end of the bus it must be a termination resistor of 120 Ω. The gateway
has an internal bus biasing circuit that incorporates the termination resistor. If you install the gateway in one of
the ends of the bus, then do not install an additional termination resistor in that end.
Console Port
Connect a mini-type B USB cable from your computer to the gateway to allow communication between the
Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check the user
manual for more information.
USB
Connect a USB storage device (not a HDD) if required. Check the user manual for more information.
BACnet MSTP
w h): 90x88x56 mm
x x
w h): 130x100x100mm
x x
... 2.5mm
2 2
... 1.5mm
2 2
Size: Coin 20mm x 3.2mm
Battery Capacity: 3V / 225mAh
Type: Manganese Dioxide Lithium
Mini Type-B USB 2.0 compliant
Console Port
1500VDC isolation
Type-A USB 2.0 compliant
Only for USB flash storage device
USB port
(USB pen drive)
Power consumption limited to 150mA
(HDD connection not allowed)
Button A: Check the user manual
Push Button
Button B: Check the user manual
Operation
0°C to +60°C
Temperature
Operational
5 to 95%, no condensation
Humidity
Protection
IP20 (IEC60529)
10 x Onboard LED indicators
2 x Run (Power)/Error
2 x Ethernet Link/Speed
LED
2 x Port A TX/RX
Indicators
2 x Port B TX/RX
1 x Button A indicator
1 x Button B indicator
100 mm (h)
100 mm (w)
email:
web:
phone: +34 938047134
130 mm (d)
