Behringer MODEL D Quick Start Manual page 7

12 MODEL D

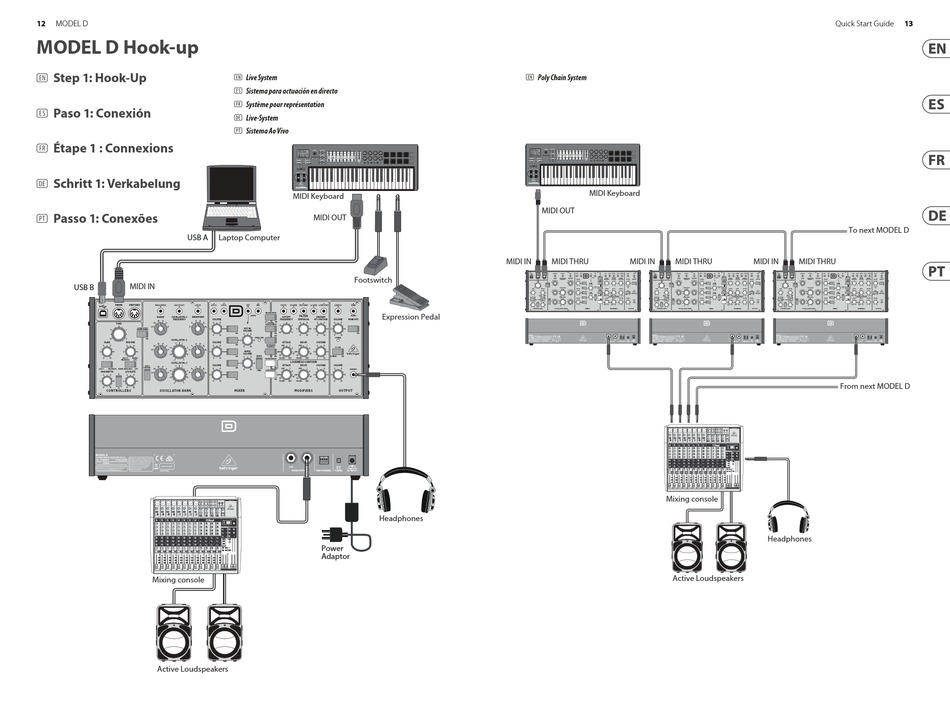

MODEL D Hook-up
Step 1: Hook-Up
(EN)
(ES) Paso 1: Conexión
(FR) Étape 1 : Connexions
(DE) Schritt 1: Verkabelung
Passo 1: Conexões
(PT)
USB A
MIDI IN
USB B
Mixing console
Active Loudspeakers
(EN) Live System
(ES) Sistema para actuación en directo
(FR) Système pour représentation
(DE) Live-System
(PT) Sistema Ao Vivo
MIDI Keyboard
MIDI OUT
Laptop Computer
Footswitch
Expression Pedal
Headphones
Power
Adaptor
(EN) Poly Chain System
MIDI Keyboard
MIDI OUT
MIDI IN MIDI THRU MIDI IN MIDI THRU
Mixing console
Active Loudspeakers
Quick Start Guide 13
To next MODEL D
MIDI IN MIDI THRU
From next MODEL D
Headphones
