POWER ZONE™ GEN CONTROLLER
The Power Zone™ Gen controller is an auto start controller that monitors the unit and indicates operational status
and fault conditions. The controller can be programmed to automatically start or stop based on time schedule, fault
condition, or load demand.
The controller constantly monitors vital generator and engine functions for a number of preprogrammed alarm and
fault conditions. When a fault condition occurs, the engine can be shut down automatically and the LCD window will
show the fault that caused the shut down; to resume operation, the fault condition must be resolved.
This controller also records a history of unit performance which may be viewed at any time and will not be lost when
the controller is powered down.
11
10
9
8
7
6
1. LCD window
2. Navigation buttons
3. Engine start (manual mode) button
4. Engine stop/reset button
5. Control power switch
6.
Auto/manual mode button

Controller Features and Functions

Operator Screens
These buttons are used to enter the various operator screens from any other screen. The operator screens consists
of four screens: Home (
screens, refer to Operator
Alarm Mute
The Alarm Mute ( ) button silences the audible alarm. Additional action will be required to fully disable the active
alarm.
14
1
5

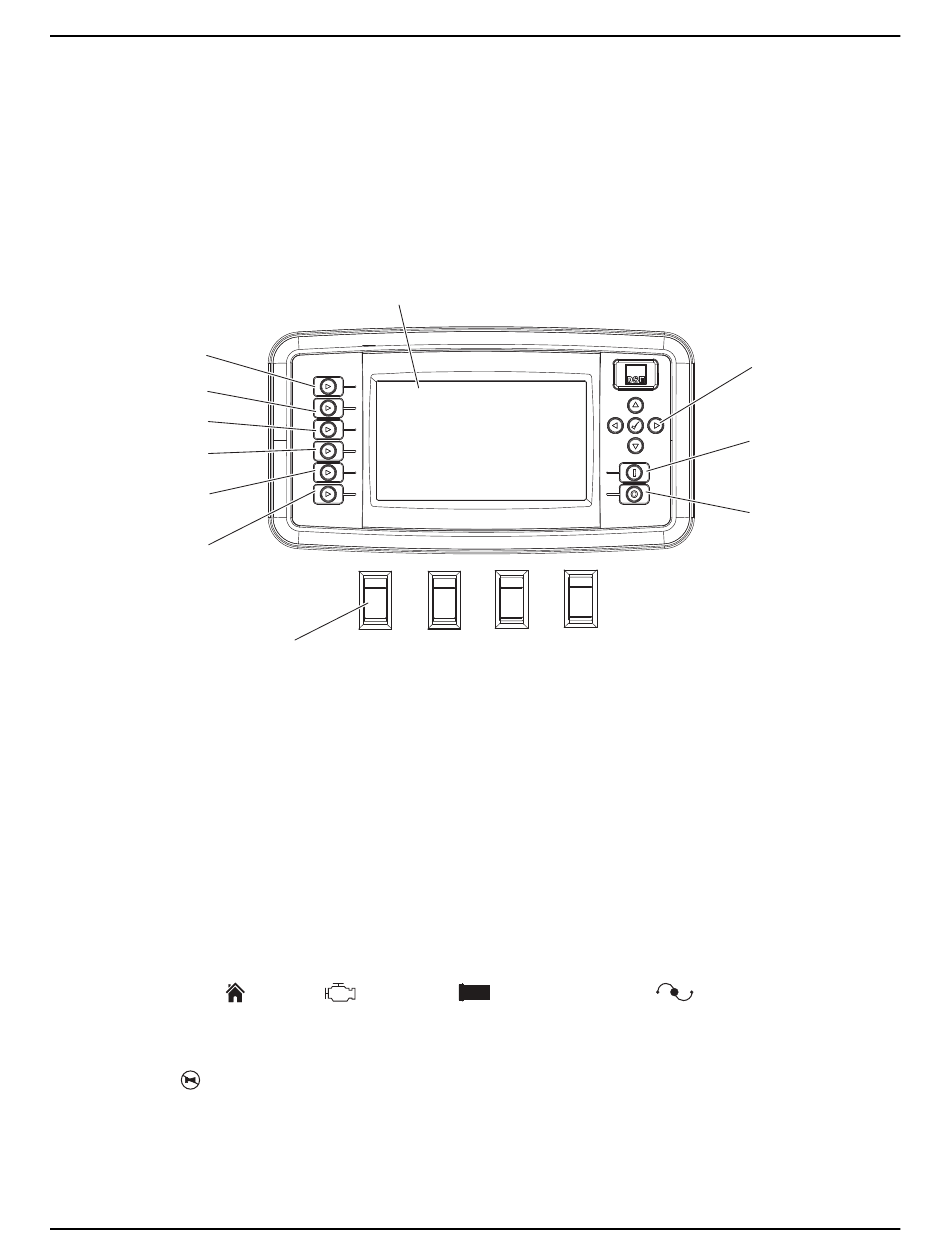

Figure 2-6. Power Zone™ Gen Controller Layout
), Engine ( ), Generator (
Screens.
MMG25I-35D-45I-55DF4 Operating Manual
7. Alarm mute button
8. Voltage screen button
9. Generator screen button
10. Engine screen button
11. Home screen button
), and Voltage Adjust (
