Summary of Contents for SmartRG SR570ac
-
Page 1: Quick Start Guide

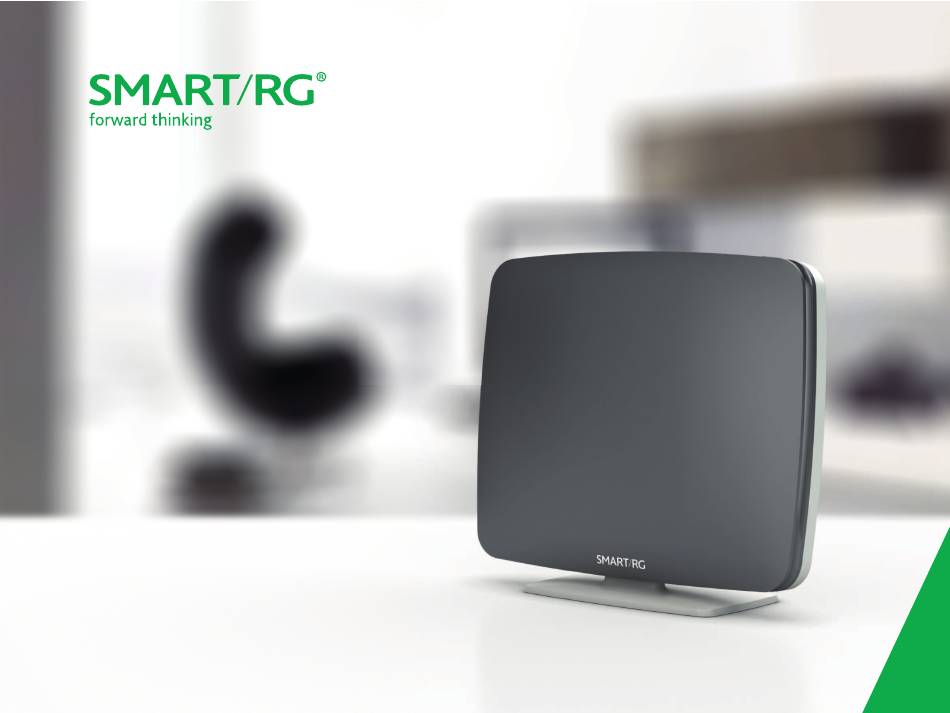

Quick Start Guide SR570ac This Quick Start Guide shows you how to set up and start using your new gateway. -
Page 2: Installation
INSTALLATION Locate the splitter cable that is included with your SmartRG gateway. It has three ports. 1. Connect one end of an Ethernet cable to the wall jack installed by your service provider. Connect the other end to the WAN port on the gateway. -
Page 4: Led Indicators
LED INDICATORS The LEDs on the front of the SR70n gateway can help you understand the current state of your adapter. Legend: White White blinking Green Green blinking Action Explanation All LEDs except Feature enabled &/or working correctly those listed below Data being transferred Device in CFE mode POWER... -
Page 5: Quick Gateway Configuration
QUICK GATEWAY CONFIGURATION Warning: Do not press the Reset button unless you want to clear the current settings. The Reset button is in a small circular hole on the rear panel. If you want to restore the default settings, insert a thin wire (such as a paper clip) into the hole, press the Reset button gently for 1 second, and then release the button. -
Page 6: Configuring The Wan Manually
(advanced). The gateway interface appears, showing the Device Info summary page. Configuring the WAN manually If the automatic connect process is unsuccessful, refer to the Advanced Setup > Layer 2 Interface Services sections of the SmartRG SR570ac Gateway User Manual to manually establish a connection. -
Page 7: Wifi Setup
WiFi Setup Two methods, WPS and Manual, are available for configuring your wireless connection. Perform the steps on this page first, and then follow the instructions for the applicable method. 1. In the left menu, click Wireless. The Wireless Basic page appears. 2. -
Page 8: Wps Method
WPS Method If the device you wish to connect to the Internet via your gateway supports the WPS secure WiFi connection method, follow these steps. 1. In the left menu, click Wireless. Click the wireless band that you want to configure and then click Security. 2. -
Page 9: Manual Method
Manual Method You can manually configure a wireless connection. Once your gateway’s other parameters are set up, follow these steps. 1. In the left menu, click Wireless. Click the wireless band that you want to configure and then click Security. 2. -
Page 10: Optional Wall Mount
OPTIONAL WALL MOUNT Using a Phillips-head screwdriver, remove the mount Gateway from the bottom of the gateway. Front Using the template below, attach the two screws to the wall. Using wall anchors is recommended. 1/16” (2-3mm) Wall Anchor 4 1/8” (104mm) Slide the back of the gateway down on the screws. -
Page 11: Record Your Sr570Ac Wifi Settings
Record your SR570ac WiFi Settings Predefined wireless settings If you change the preset wireless settings WiFi network name (SSID) Network key (password) Additional Support If you require further instructions, please contact your local ISP Support. SMARTRG INC. ALL RIGHTS RESERVED. COPYRIGHT 2017 ©... -
Page 12: Important Safety Instructions
Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. -
Page 13: Fcc Statements
2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil sans fil) pendant un orage électrique. Ceci peut présenter un risque de choc électrique causé par la foudre. 3. Ne pas utiliser l’appareil téléphonique pour signaler une fuite de gaz s’il est situé près de la fuite. ATTENTION - Pour réduire les risques d’incendie, utiliser uniquement des conducteurs de télécommunications 26 AWG au de section supérleure. - Page 14 The Ringer Equivalence Number (REN) indicates the maximum number of devices allowed to be connected to a telephone interface. The termination of an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices not exceed five. L'indice d'équivalence de la sonnerie (IES) sert à...
- Page 15 If trouble is experienced with this equipment, for repair or warranty information, please contact SmartRG,Inc. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
- Page 16 residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
- Page 17 Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Canada Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 18 Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps. This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.
