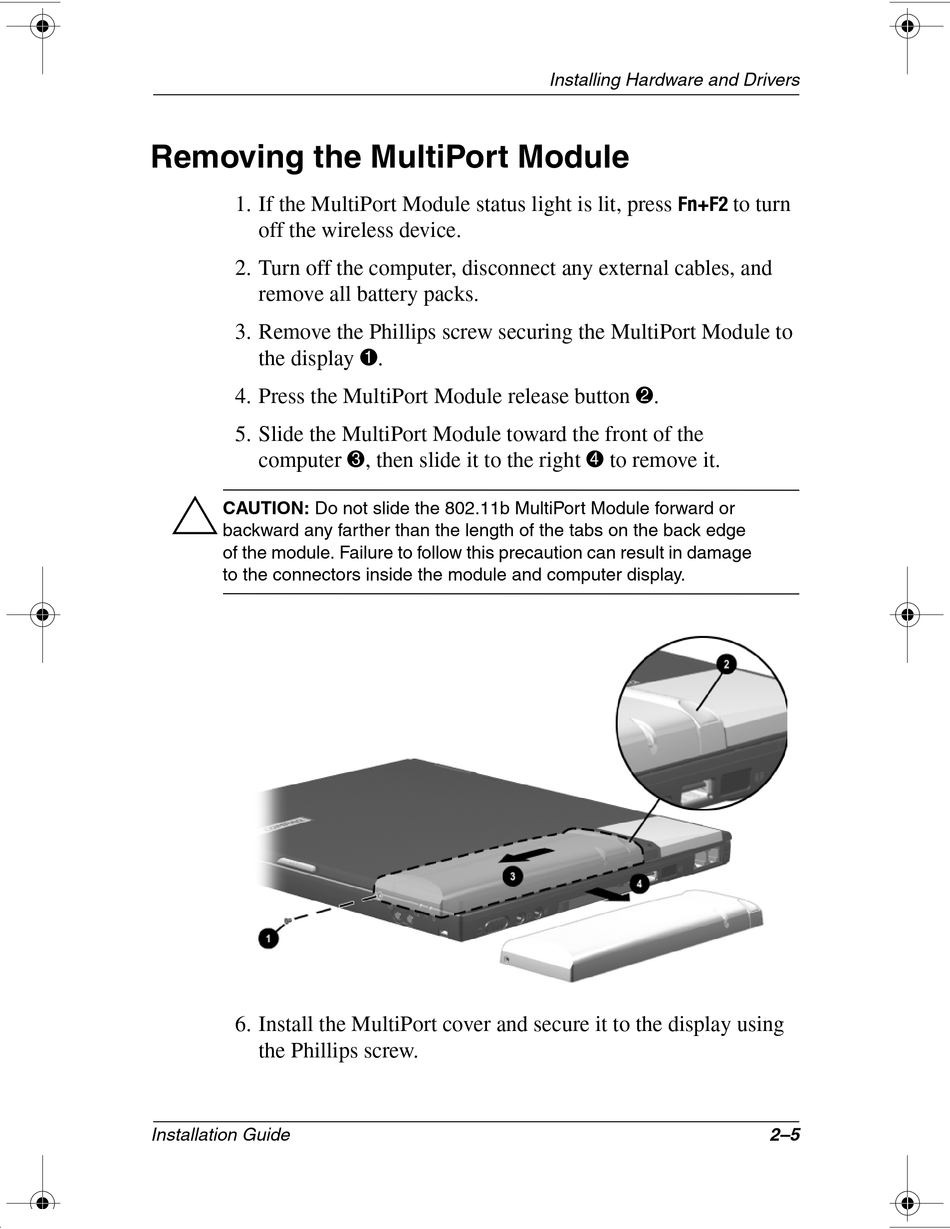

Removing the MultiPort Module

1. If the MultiPort Module status light is lit, press
off the wireless device.
2. Turn off the computer, disconnect any external cables, and
remove all battery packs.
3. Remove the Phillips screw securing the MultiPort Module to
the display 1 .
4. Press the MultiPort Module release button 2 .
5. Slide the MultiPort Module toward the front of the
computer 3 , then slide it to the right 4 to remove it.
Ä
CAUTION: Do not slide the 802.11b MultiPort Module forward or
backward any farther than the length of the tabs on the back edge
of the module. Failure to follow this precaution can result in damage
to the connectors inside the module and computer display.
6. Install the MultiPort cover and secure it to the display using
the Phillips screw.
Installation Guide
Installing Hardware and Drivers
to turn
Fn+F2
2–5
