Compaq KN310 Installation Card

EK–KN310–IN. B01
KN310 CPU INSTALLATION CARD
Use this card as a quick reference to install the
KN310 CPU module in an AlphaServer DS20 or an
AlphaServer / AlphaStation DS20E system.
WARNING: CPU modules and memory modules
have parts that operate at high temperatures. Wait
2 minutes after power is removed before touching
any module.
CAUTION: Wear an antistatic wrist strap when
working on this system.
Overview
•
Open the cabinet.
•
Locate the CPU slot.
•
Install the CPU module.
•
Verify the installation.
© Compaq Computer Corporation 1999.
All rights reserved.
Open the Cabinet
DS20 Systems
1. Shut down the operating system and power
down the system.
2. Unplug the power cord.
3. Remove the covers to gain access to the system
card cage. See Figure 1.
a. Unlock and open the front door.
b. Pull the top cover latch down to release the
latch.
c. Using the groove at the rear of the top
cover, pull the cover back about two
inches, and lift off.
d. Pull the card cage panel back and lift it
away from the cabinet.

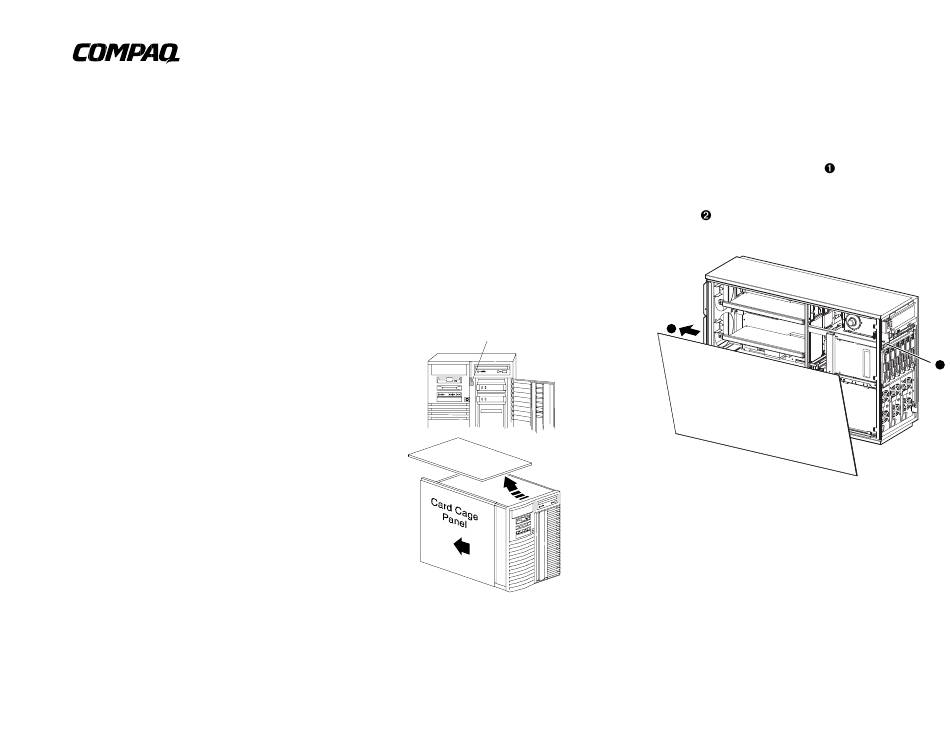

Figure 1 Opening the DS20 Cabinet
Top Cover
Release Latch
PK1476-98
1
DS20E Systems
1. Shut down the operating system and power
down the system.
2. Unplug the power cord(s).
3. Remove the cover to gain access to the system
card cage. See Figure 2.
a. Open the front bezel.
b. Loosen the captive screw
side panel to the chassis.
c. Remove the panel with a rearward motion
.
Figure 2 Opening the DS20E Cabinet
2
attaching the
1
CAT0034A
