Continental Hydraulics F Design Series Service Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
CAUTION - Before performing any service
operation on any pump, be sure that all
pressure has been relieved from BOTH
SIDES of the system.
CAUTION - Before performing any service
operation on any pump, disconnect or lock
off power supply.
CAUTION - Before starting pump, be sure
that any resulting machine function will not
endanger persons or equipment.

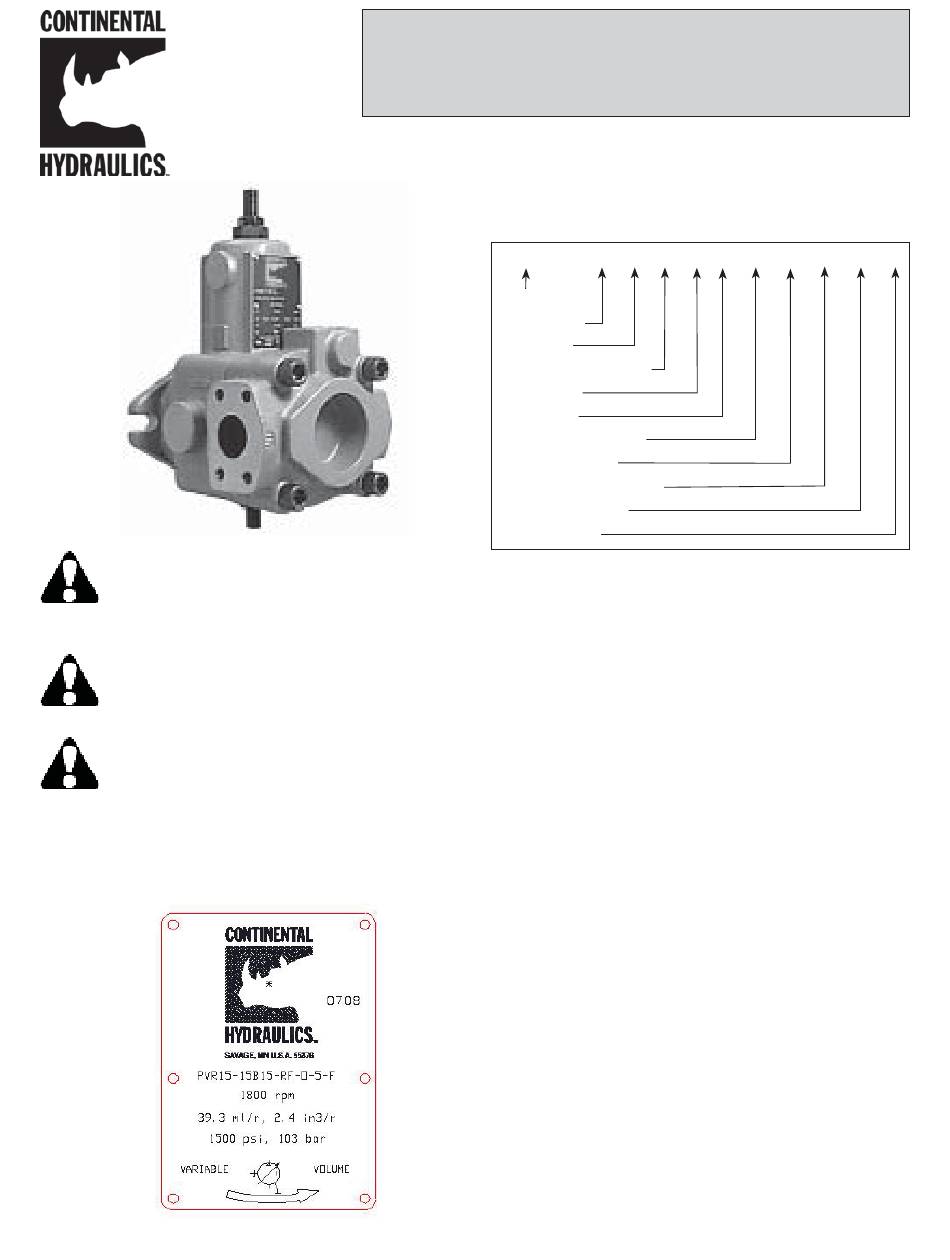

PRODUCT IDENTIFICATION
Each pump has an Ordering Code stamped on its
nameplate. See below for the location of the Ordering
Code.
SERVICE MANUAL
Installation, Startup, Operating Instructions, Parts Pages, Repair Procedures
This service manual applies to products with Ordering
Codes like the sample below.
PVR15 - _ _ _ - _ _ RF - _ - 5 - _ _ _ _ _ _ _ _ - F
Basic Pump
Pump Size
Pressure
Rotation & Mounting
Fluid Type
Seal Type
Mechanical Options
Control Options
Electrical Box Options
Solenoid Options
Design Letter
INSTALLATION
PUMP DRIVE AND MOUNTING
When mounting the pump and motor, care must be
taken to align the pump and motor shafts within .003
T.I.R. (0.076 mm) direct inline through a jaw type/
flexible web coupling. This is recommended for all
pumps. Tire-type flexing elements and chain-type
drives are not recommended. With belt drives, please
consult factory.
To avoid axial and radical end loading of the pump
shaft, do not couple the pump and motor shafts
rigidly. Allow freedom at the coupling for the two
shafts to ride independently.
To prevent end loading, the space between the pump
and motor shaft ends should be 3/4 inch (19.05 mm)
for PVR15 pumps, or as the coupling manufacturer
specifies.
PIPING AND RESERVOIR
The pump should be mounted with a minimum
number of elbows or fittings. The pump suction
should be at least 1-1/4 inch (31.75 mm) tube/pipe for
PVR15 pumps.
For any system and combination of piping except
High Water Based Fluids (HWBF), the vacuum at the
pump inlet must not exceed seven inches of Mercury,
(5 inch Hg. for fire resistant fluids). HWBF Pumps are
Form No. 265294
Rev. 07/08
PVR15 Flanged Series Pump
"F" Design Series
1
