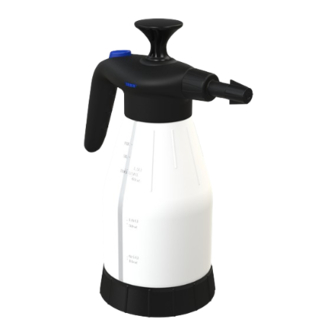

- Page 1 USER MANUAL MODEL NUMBER: SP1.5L SP1.5LBK and related units 1.5 Liter Pump-Up Spray Unit English (Original Instructions)
- Page 2 • Do not modify or remove pressure relief valve. Do not Pump seals Viton use unit if pressure relief valve is not operational. Run time on full tank 30 seconds to 1 minute and 45 • Always flush the unit with fresh water when switching seconds, depending on nozzle setting from an alkaline to an acid or an acid to an alkaline. • Always carry unit by the carrying handle. Never lift or carry the unit by the pump handle or the wand. • Never use unit with hydrocarbons or flammable products. • Do not exceed a fluid temperature of 100˚F (37˚C). PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations. Always remember to recycle. *Specifications and parts are subject to change without notice. Model Number: SP1.5L, SP1.5LBK and related units Page 2 of 4 | 11162018...
- Page 3 • Periodically lubricate the pump seal with a food safe 4. Securely hold the tank (TANK1.5L) and screw the pump lubricant. To lubricate the pump seal, raise pump handle assembly (LC-PA-SP1.5L) on. and apply 5 to 10 drops of food safe lubricant between 5. Pressurize the tank by pumping approximately 20 to 25 pump and pump sleeve. times, or until it becomes difficult to pump. Note: NEVER USE LUBRICANTS SUCH AS WD40. Note: Do not overfill tank with air. The pressure relief valve will leak if the air pressure is too high. 6. To start spraying, point the wand assembly at the area you wish to spray and press down on the On/Off control to discharge solution. Release On/Off control to stop spraying. 7. Spray nozzle can be adjusted by rotating it. Rotate clockwise to narrow pattern. Rotate counterclockwise for wider pattern After Use Instructions: 1. Release air pressure from unit after each use by activating the pressure relief valve (located on the side of the pump assembly (LC-PA-SP1.5L)). 2. Empty all solution in tank and run fresh water through unit to rinse parts thoroughly. Model Number: SP1.5L, SP1.5LBK and related units Page 3 of 4 | 11162018...
-
Page 4: Exploded View
ITEM NUMBER DESCRIPTION ITEM NUMBERS: TANK1.5L, TANK1.5LBK LC-PA-SP1.5L PUMP ASSEMBLY FOR 1.5L SPRAY UNIT LC-PST-1.5L-FLEX FLEXIBLE POLY SUPPLY TUBE FOR 1.5L PUMP UP TANK1.5L 1.5L TANK-WHITE TANK1.5LBK 1.5L TANK-BLACK TANK1.5L (white tank) LC-WA-SP1.5L WAND ASSEMBLY FOR SP1.5L PUMP UP TANK1.5LBK (black tank) Liquid level viewing stripe Model Number: SP1.5L, SP1.5LBK and related units Page 4 of 4 | 11162018...
