Recommended Altronix Sfp Modules; Technical Specifications - Altronix NetWaySP8A Installation Manual

Altronix P1MM and P1SM10 are hot-pluggable SFP fiber transceiver modules and are readily usable with all
Altronix Spectrum fiber optic equipment for 1Gb transmission rates.
P1MM - For use with Multi-Mode Fiber for distances up to 550m.
P1SM10 - For use with Single-Mode Fiber for distances up to 10km.
Fig. 2
Data & PoE
30W/60W
NetWaySP16A - Front Panel
NetWaySP16A - Rear Panel
1
9
Parameter
Number of Ports
(SFP / Ethernet)
Input Power
Requirements
Environmental
Conditions
Regulatory
Compliance
Weights (approx.)
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence
of an insulated DANGEROUS VOLTAGE within the product's enclosure that may be of sufficient magnitude to
constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the appliance.
NetWaySP8A / NetWaySP16A

Recommended Altronix SFP Modules:

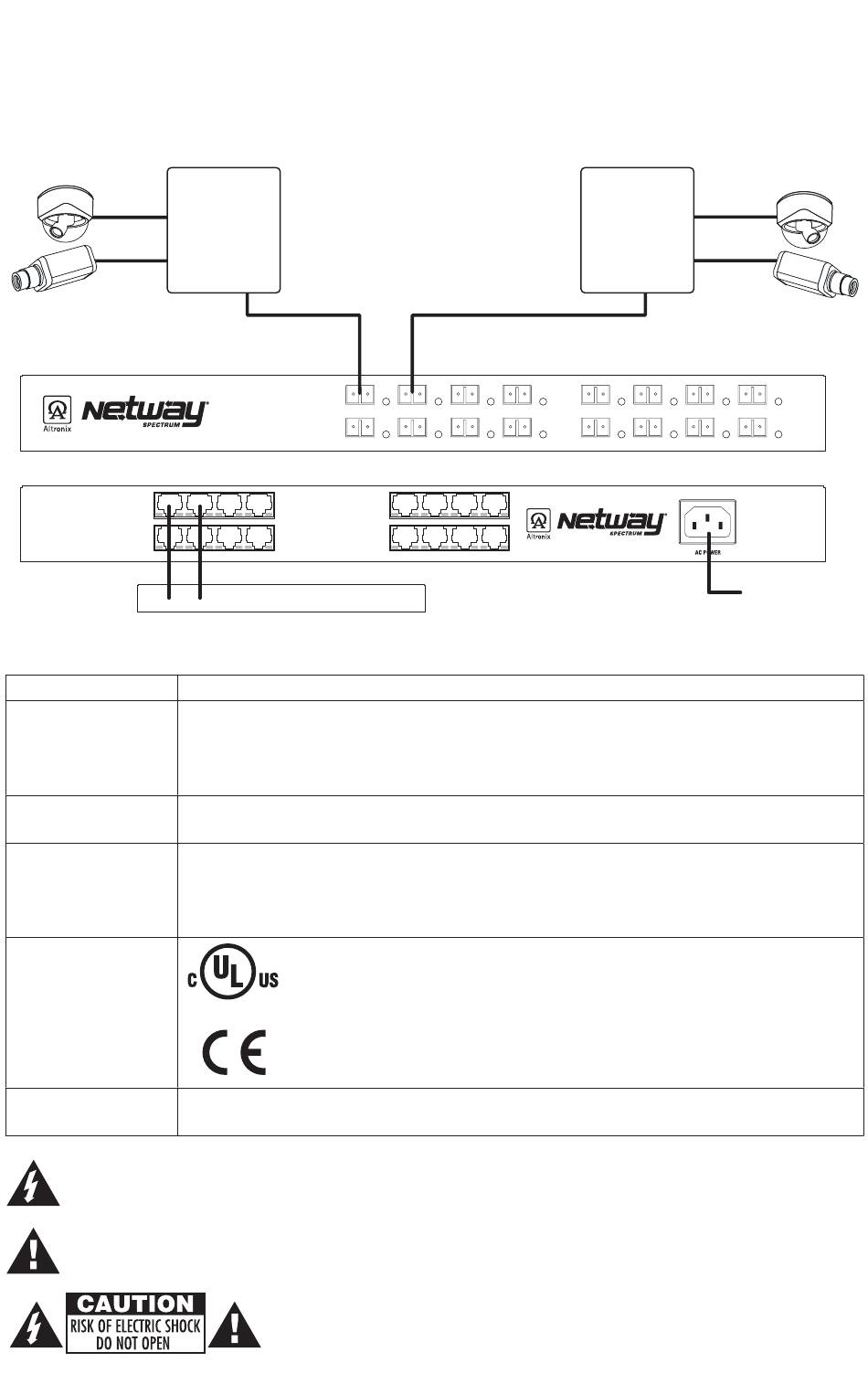

Typical Application:
NetWay Spectrum
Ethernet over Fiber
PoE Switch
or
Media Converter
Fiber from
NetWaySP16A
2 3 4
10 11 12
Switch

Technical Specifications:

Description
NetWaySP8A: Eight (8) Gigabit SFP Ports.
Eight (8) ports 10/100/1000Mbps Ethernet ports.
NetWaySP16A: Sixteen (16) Gigabit SFP Ports.
Sixteen (16) ports 10/100/1000Mbps Ethernet ports.
NetWaySP8A: 115VAC, 60Hz, 0.5A or 230VAC, 50/60Hz, 0.3A.
NetWaySP16A: 115VAC, 60Hz, 1.0A or 230VAC, 50/60Hz, 0.5A.
Operating Ambient Temperature (50W): – 40ºC to 50ºC (– 40ºF to 122ºF)
Relative Humidity: 85%, +/– 5%
Storage Temperature: – 40ºC to 85ºC (– 40ºF to 185ºF).
Operating Altitude: – 304.8 to 2,000m.
UL/cUL Listed for Information Technology Equipment (UL 60950-1)
I.T.E. 43KC
CE European Conformity.
NetWaySP8A: Product: 3.81 lb. (1.72kg)
NetWaySP16A: Product: 4.5 lb. (2.04kg)
CAUTION: To reduce the risk of electric shock do not open enclosure.
There are no user serviceable parts inside. Refer servicing to qualified service personnel.
Fiber from
NetWaySP16A
SFP 1 SFP 2 SFP 3 SFP 4
SFP 9 SFP 10 SFP 11 SFP 12
5 6 7 8
13 14 15 16
NetWay Spectrum
Ethernet over Fiber
Data & PoE
PoE Switch
or 30W/60W
Media Converter
SFP 5 SFP 6 SFP 7
SFP 13 SFP 14 SFP 15
| Shipping: 6.00 lb. (2.72kg)
| Shipping: 6.69 lb. (3.03kg)
SFP 8
SFP 16
115/230VAC Input
- 3 -
