- Page 1 SB-E-2-510 ISS.04 Operation Manual SRi – Gravity Spray Gun P 2 – 8...
-
Page 2: Ec Declaration Of Conformity

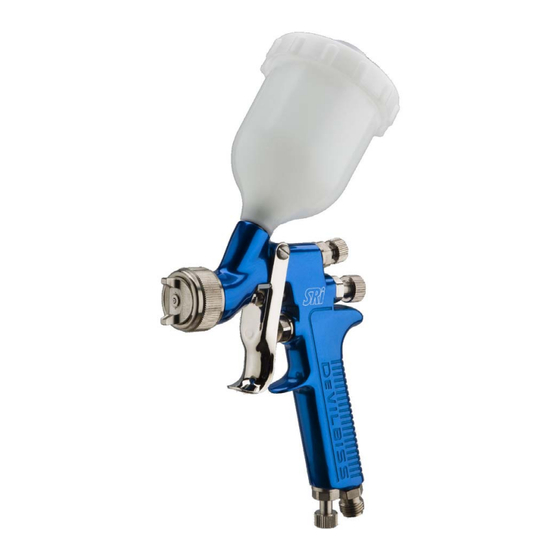

Description The Devilbiss SRi is a small gravity-fed spray gun designed for spraying spot repairs and small areas. It is approved to ATEX regulations 94/9/EC, protection level; II 2 G X. Suitable for use in Zones 1 and 2 Important: These spray guns are suitable for use with both water-based and solvent-based coating materials. -
Page 3: Safety Warnings
SAFETY WARNINGS Fire and explosion Solvents and coating materials can be highly flammable or combustible when sprayed. ALWAYS refer to the coating material suppliers instructions and COSHH sheets before using this equipment. Users must comply with all local and national codes of practice and insurance company requirements governing ventilation, fire precautions, operation and house-keeping of working areas. -
Page 4: Parts List
Parts List Ref. No Description Part Number Air cap/Retaining ring HVLP SRi-407-205 Air cap/Retaining ring compliant SRi-407-210 Nozzle 0.7 mm seal SRi-2-07-K Nozzle 0.8 mm seal SRi-2-08-K Nozzle 1.0 mm seal SRi-2-10-K Nozzle 1.2 mm seal SRi-2-12-K Needle for 1.0 and 1.2 mm nozzle SRi-3-K Needle for 0.7 and 0.8 mm nozzle... -
Page 5: Specification
Patent No 2372465 (GB) Specification Air supply connection - Universal ¼” BSP and NPS (M) Maximum static air inlet pressure - P1 = 9 bar (130 psi) Nominal gun air inlet pressure with gun triggered - 2 bar (29 psi) Gun weight (with cup and lid) - 390 g Maximum service temperature -... -
Page 6: Installation
1. Mix coating material to manufacturers instructions. 2. Screw cup (19) to gun. Do not over tighten. 3. Place the filter (24) in the cup and fill to required level with paint, or use funnel (SRI-17) and use paper filter. Screw on lid. -
Page 7: Preventative Maintenance
Preventative Maintenance 1. Turn off air supply and relieve pressure in the airline or, if using QD system, disconnect from airline. 2. Empty coating material into a suitable container and clean the gun and cup, preferably in a gun wash machine. 3. - Page 8 Accessories Air cap, tip and needle set – SRi-450-***-** (*** = Air cap No, ** = Tip size) Spanner – SRi-50-K2 Cleaning brush – SRi-65-K2 Service kit – SRi-416 Gun-mounted regulator with mini QD – HAV-601 Lubricant – GL-1-K10 SRi-478-K3 Black cup and lid set (3 sets) – suitable for use with UV curing paints.
