V RM IR N
Illico
INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Illico and is the answer not in the manual?

Questions and answers

Related Manuals for Vermeiren Illico

Summary of Contents for Vermeiren Illico

  • Page 1 V RM IR N Illico INSTALLATION MANUAL...
  • Page 2 Version: B, 2018-07 systems. © Vermeiren Group, 2018 Instructions pour les distributeurs Ce manuel d'instructions fait partie du produit et doit accompagner chaque produit vendu.

  • Page 3: Table Of Contents

    Illico 2018-07 Contents Contents Preface........................2 This product ....................3 Scope of delivery ..................4 Transport ....................... 5 Dimensions ..................... 5 Loading of transport trolley ................6 Stacking beds for transport or storage ............8 Assembly and disassembly ............... 10 Tools ......................

  • Page 4: Preface

    To support you on the installation and repairs of this nursing bed, this installation manual is offered. Please read it carefully. If you still have questions after reading this manual, do not hesitate to contact Vermeiren. The information in this manual applies to next bed(s): •...

  • Page 5: This Product

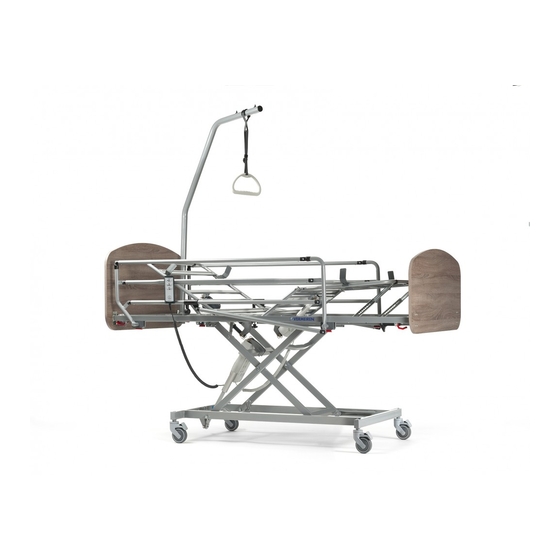

    Illico 2018-07 This product This product Read the complete Instruction manual before operating the bed. Important parts Headboard 11. Location of identification plate Lifting pole / Trapeze handle (on bed frame, at head end) Side rail, foldable 12. Strap Footboard 16.

  • Page 6: Scope Of Delivery

    Scope of delivery CAUTION Risk of injuries or damage • Only use parts described in this manual. For more information contact Vermeiren. A list of Vermeiren facilities can be found on the cover page. Risk of unsafe settings • The Illico bed has two configuration options, one with a complete metal mattress support and one with a mattress frame with plastic supports.

  • Page 7: Transport

    Illico 2018-07 Transport Transport CAUTION Risk of injuries or damage Attach all bed parts and transport trolley firmly to the vehicle, to prevent them from moving during transport. Dimensions CAUTION Risk of injuries or damage For transport and storage, you should take next dimensions into account.

  • Page 8: Loading Of Transport Trolley

    Illico 2018-07 Transport Description Dimension Value Undercarriage, with control box, power cable and Mass 30,4 kg handset Head section frame, with Mass 20,2 kg head support, motor Foot section frame, with leg Mass 21,3 kg support, motor Headboard Mass 7,3 kg...
  • Page 9 Illico 2018-07 Transport Place the lower frame of >Insert at No. 1< >Insert at No. 2< transport trolley on level Leg section, with strap at the Undercarriage with motor on bottom, motor inwards. bottom side. ground with brakes applied. Lower castor wheels turned inwards and locked.

  • Page 10: Stacking Beds For Transport Or Storage

    Illico 2018-07 Transport Footboard in trolley upper After folding, each side bar is mounted vertically: • part L&R. Lock the footboard with its lower shaft in rotation point (f) of leg section; • with red lever (g). with top part in plastic mount (e) on upper connector.
  • Page 11 Illico 2018-07 Transport • Put a stacking connector (i) in the strike hole (k) at each of the upper connectors (4x): on the inside of the frame tube (i1), on the outside (i2). • Place the trolley with the second bed on top of the first by means of lifting equipment.

  • Page 12: Assembly And Disassembly

    Illico 2018-07 Assembly and disassembly Assembly and disassembly CAUTION Risk of injuries or damage • The bed needs to be (dis)assembled by a specialist dealer according to the instructions in this chapter. • Prevent bystanders from accessing the (dis)assembling area.
  • Page 13 Illico 2018-07 Assembly and disassembly Motor and handset connections • Make sure that each cable lies in a notch of the housing before closing the cover of the control box. • Close the cover after connecting the cables. Installation manual...

  • Page 14: Assembly

    Illico 2018-07 Assembly and disassembly Assembly • • Place the undercarriage with the four Open the control box with the control-box wheels on a flat and level floor. opener (see §4.1), by pressing the two • locking clips simultaneously. Apply the brake on the four castor wheels •...
  • Page 15 Illico 2018-07 Assembly and disassembly • • While resting on the roller wheels, lay the Take the head section and roll it to the leg section with the frame cut-out (20) undercarriage, on the side of the control over the rollers (19) of the undercarriage.
  • Page 16 Illico 2018-07 Assembly and disassembly [10] • • Slide the leg-section frame tubes over Slide the leg section further till the outer the protruding inner tubes of the head frame tubes touch. • section. Turn star knob (23) in the hole of the tube and tighten it.
  • Page 17 Illico 2018-07 Assembly and disassembly [13] [14] • Take the left or right side-rail and hold it Finally, make sure that all assembled next to the frame of the mattress support. parts are locked in place. Make sure that the canted corner is located on the headboard-side.

  • Page 18: Disassembly

    Illico 2018-07 Assembly and disassembly Disassembly • Apply the brakes on the castor wheels CAUTION Risk of damage (position B). Before operating the handset, make sure that cables won’t get crushed by moving parts. • Use the handset to lower the head and leg section till they are flat.
  • Page 19 Illico 2018-07 Assembly and disassembly • • Use the handset to raise the cross of the Loosen star knob (23) and remove it from undercarriage to its assembly position C. the frame tube. • Repeat this on the other side of the mattress support.
  • Page 20 Illico 2018-07 Assembly and disassembly [10] • Open the control box with the control-box CAUTION Risk of entrapment opener (see §4.1), by pressing the two Prevent fingers getting entrapped by the locking clips simultaneously. frame-cross locking system. • Unplug the motor cables of head and leg •...

  • Page 21: Installing Motor

    Illico 2018-07 Assembly and disassembly Installing motor • • Disassemble the bed according to the Install the motor of the leg section instructions in §4.4, up to step [11], to according to the mounting instructions create some space to work.
  • Page 22 This page is intentionally left blank...
  • Page 23 Service registration form Service registration form This product (name): …………………………………….. was inspected (I), serviced (S), repaired (R) or disinfected (D): By (stamp): By (stamp): By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date:...
  • Page 24 Poland Spain / Portugal Vermeiren Polska Sp. z o.o. Vermeiren Iberica, S.L. ul. Łączna 1 Carratera de Cartellà, Km 0,5 PL-55-100 Trzebnica Sant Gregori Parc Industrial Edifici A 17150 Sant Gregori (Girona) phone: +48(0)71 387 42 00...
