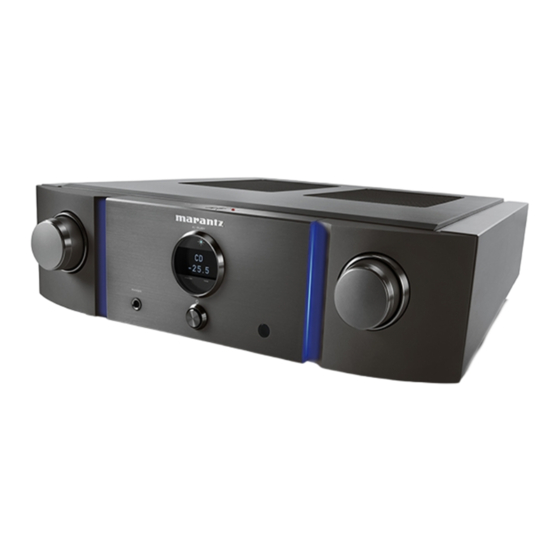

Model PM-KI RUBY Owner's Manual
Integrated Amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-KI RUBY and is the answer not in the manual?

Questions and answers

Related Manuals for Marantz PM-KI RUBY

Summary of Contents for Marantz PM-KI RUBY

  • Page 1 Model PM-KI RUBY Owner’s Manual Integrated Amplifier...

  • Page 2: Table Of Contents

    Connecting a playback device ............. 9 Menu operation ................19 Connecting a recording device ............ 9 PHONO ..................20 Connecting multiple PM-KI RUBY units (F.C.B.S. connection) AUTO STBY (Auto Standby) ............20 ......................10 ATT LEVEL (Attenuation Level) ..........20 Preparation for F.C.B.S.

  • Page 3: Accessories

    ENGLISH Operating range of the remote About the remote control Thank you for purchasing this Marantz product. To ensure proper operation, please read this owner’s manual control unit carefully before using the product. Inserting the batteries After reading this manual, be sure to keep it for future Point the remote control unit at the remote sensor when reference.

  • Page 4: Features

    The HDAM ® SA3 is a key amplifier module for current to connect up to four PM-KI RUBY units, making a diversity feedback amplifiers. It is installed in the voltage to current of applications possible with complete bi-amp and converter, the most crucial component, to improve the multichannel connections.

  • Page 5: Part Names And Functions

    ENGLISH Part names and functions Front panel A INPUT SELECTOR knob E STANDBY indicator I Power operation button (X) This selects the input source. (v p. 16) This is lit as follows according to the power status: This turns the power on/off. (v p. 16) Power on : Off B Illumination lamp J Remote control sensor...

  • Page 6: Rear Panel

    Connecting to a device with analog audio output Used to connect a high quality playback system using two connectors. Used to connect to a Marantz audio device that is or more of PM-KI RUBY units. (v p. 10) compatible with the remote control function. (v p. 15) “Connecting a playback device”...

  • Page 7: Remote Control Unit

    ENGLISH Remote control unit The supplied remote control can be used to control a Marantz A Remote control signal transmitter CD player in addition to this unit. This transmits signals from the remote control unit. “CD player operations” (v p. 7) (v p.
  • Page 8 CD player operations A Power operation button (X CD) B Remote mode select button (REMOTE MODE CD) To operate a Marantz CD player, press the REMOTE MODE CD button to switch the remote control to the CD C Cursor buttons (uio p) player operation mode.

  • Page 9: Connections

    Peel off about 3/8 inch (10 mm) of sheathing from the Connecting multiple PM-KI RUBY units (F.C.B.S. Connect so that the speaker cable core wires do not tip of the speaker cable, then either twist the core wire connection) protrude from the speaker terminal.

  • Page 10: Speaker Connection

    ENGLISH Speaker connection Connecting a playback Connecting a recording device device SPEAKERS SPEAKERS LINE-1 LINE-1 LINE-2 LINE-2 RECORDER- RECORDER-1 RECORDER- RECORDER-2 RECORDER- RECORDER-1 RECORDER- RECORDER-2 STEREO STEREO BI-AMP BI-AMP You can connect turntables, tuners, CD players and network REMOTE CONTROL REMOTE CONTROL AMP MODE AMP MODE...

  • Page 11: Connecting Multiple Pm-Ki Ruby Units (F.c.b.s. Connection)

    Connecting multiple PM-KI RUBY units (F.C.B.S. connection) The Marantz F.C.B.S. (Floating Control Bus System) is the high quality sound system for link control between multiple PM-KI RUBY units (up to 4 units). Each unit is controlled via its ID number registered beforehand.

  • Page 12: Stereo Complete Bi-Amp Connection

    RECORDER-1 RECORDER- RECORDER-2 STEREO STEREO BI-AMP BI-AMP F.C.B.S. connected PM-KI RUBY units are required. REMOTE CONTROL REMOTE CONTROL AMP MODE AMP MODE Turn INPUT SELECTOR on the unit to select To switch the mode, use the AMP MODE switch on the rear F .C.B.S.
  • Page 13 PHONO SIGNAL SIGNAL PHONO PHONO AUDIO IN AUDIO IN AUDIO IN AUDIO IN Set PM-KI RUBY Set PM-KI RUBY for R channel to for L channel to ID 2 ID 1 To power outlet. To power outlet. MF / HF...

  • Page 14: Connection For 5.1 Multi-Channel Playback

    Connection for 5.1 Multi-channel Playback Three PM-KI RUBY units can be connected by F.C.B.S. and used through linked operation. For details on F.C.B.S. connection, see “Examples of Connections” ( (v p. 10)). Connect the outputs of players that have 5.1 channel analog outputs to each of the three units.

  • Page 15: Connecting A Pre-Amplifier

    ENGLISH Connecting a pre-amplifier n Speaker Positioning for Super Audio Multi-channel Sound Center Subwoofer speaker If you use a pre-amplifier, connect it as shown below, and In order to enjoy Super Audio CD multi-channel sound Front speaker Front speaker then you can use this unit as a power amplifier. with the best possible acoustics, it is recommended to (Right) (Left)

  • Page 16: Connecting Devices With Remote Control Connectors

    You can transmit remote control signals simply by connecting Performing operations by RC on a Marantz audio device to the REMOTE CONTROL IN/OUT this unit without visual contact connectors using the remote connection cable provided with the device.

  • Page 17: Playback

    ENGLISH Playback n Contents Turning the power on Selecting the input source Turning the power on Selecting the input source Use INPUT df to select the input source to be Press X on the main unit to turn the power on. played back.

  • Page 18: Adjusting The Volume Balance (Level) And Sound Quality

    ENGLISH Adjusting the volume balance (LEVEL) and sound quality (BASS/TREBLE) n Adjusting LEVEL n Adjusting BASS n Adjusting TREBLE The volume level of the left and right channels can be The bass volume can be adjusted in 1 dB steps across a The treble volume can be adjusted in 1 dB steps across a trimmed in 0.5 dB steps across a 0.0 - -9.0 dB range.

  • Page 19: Switching The Display's Brightness

    ENGLISH Switching the display’s brightness Playing CDs Recording The display brightness can be adjusted between four levels. This section uses playback from a CD as an example. Audio signals input into this unit can be output to an external Switching the display off reduces a source of noise that recording device.

  • Page 20: Settings

    ENGLISH Settings Menu map By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences. Setting items Description Page PHONO Sets the phono equalizer of this unit according to the type of the turntable cartridge to be connected. AUTO STBY Sets whether to automatically switch the unit to the standby mode when there is no audio input and no operations are (Auto Standby)

  • Page 21: Phono

    ENGLISH PHONO AUTO STBY (Auto Standby) ATT LEVEL (Attenuation Level) Sets the phono equalizer of this unit according to the type of Sets whether to automatically switch the unit to the standby the turntable cartridge to be connected. mode when there is no input signal and operation for 30 Sets how far the volume is decreased when the MUTE button minutes.

  • Page 22: Tips

    Desired sound does not come out unit main panel off Sound is interrupted or noise occurs I want to use two or more of PM-KI RUBY units for high quality playback Error messages I want to use this unit’s remote control to operate a...

  • Page 23: Tips

    I want to turn the illumination lamps on both sides of the unit main panel off Set the illumination lamp to off. (v p. 18) I want to use two or more of PM-KI RUBY units for high quality playback Use the stereo complete bi-amp connections. (v p. 11) Use the multi-channel playback connections.

  • Page 24: Troubleshooting

    ENGLISH Troubleshooting If a problem should arise, first check the following: 1. Are the connections correct? 2. Is the set being operated as described in the owner’s manual? 3. Are the other devices operating properly? If this unit does not operate properly, check the corresponding symptoms in this section. If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit.
  • Page 25 ENGLISH n Operations cannot be performed through the remote control unit Symptom Cause / Solution Page Operations cannot be performed Batteries are worn out. Replace with new batteries. through the remote control unit. Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. Remove any obstacle between this unit and the remote control unit.

  • Page 26: Error Messages

    Error messages When multiple PM-KI RUBY units are connected by F.C.B.S., the error messages described in the table below may be displayed on the display. In such a case, ID number setting or remote cable connection may be in failure. Check the ID number or remote cable connection, referring to the table below. For details on ID number setting, see “How to set ID number for F.C.B.S.” (v p. 11).

  • Page 27: Appendix

    ENGLISH Appendix Explanation of terms MM/MC cartridge There are two types--MM (Moving Magnet) and MC (Moving Coil)--of cartridges for turntable. As the output levels for these two types of cartridges differ, the setting of the phono equalizer that is mounted in this unit must be switched according to the type of cartridge for your turntable.

  • Page 28: Specifications

    AC 120 V, 60 Hz Power consumption : 130 W Power consumption in standby mode : 0.2 W For the purpose of improvement, the specifications and design are subject to change without notice. Product Name : Integrated Amplifier Model Number : PM-KI RUBY...
  • Page 29 ENGLISH n Dimensions (Unit : in. (mm)) 17 3/8 (440) 2 3/4 (67) 2 3/4(69) 12 (302) 2 3/4 (69) n Weight : 34 lbs 10 oz (15.7 kg)

  • Page 30: Index

    ENGLISH Index Auto Standby mode ............. 20 Menu map ................19 Speaker impedance ............26 Muting ................. 16 Speakers ................8 CD player ................ 9, 18 Network audio player ............. 9 Tips ..................22 Troubleshooting ..............23 Display’s brightness ............18 Tuner ..................
  • Page 32 Printed in Japan 5411 11685 00AM Copyright © 2018 D&M Holdings Inc. All Rights Reserved.
