to know your
e.: Adjust 45 ° stop in the same manner,
NOTE: Tilt scale will not require adjustment if it
was adjusted for 90 ° position.
HEAD
OF
SQUARE
FENCE
\
/
/ CUTTER
GUARD
INFEED
TABLE

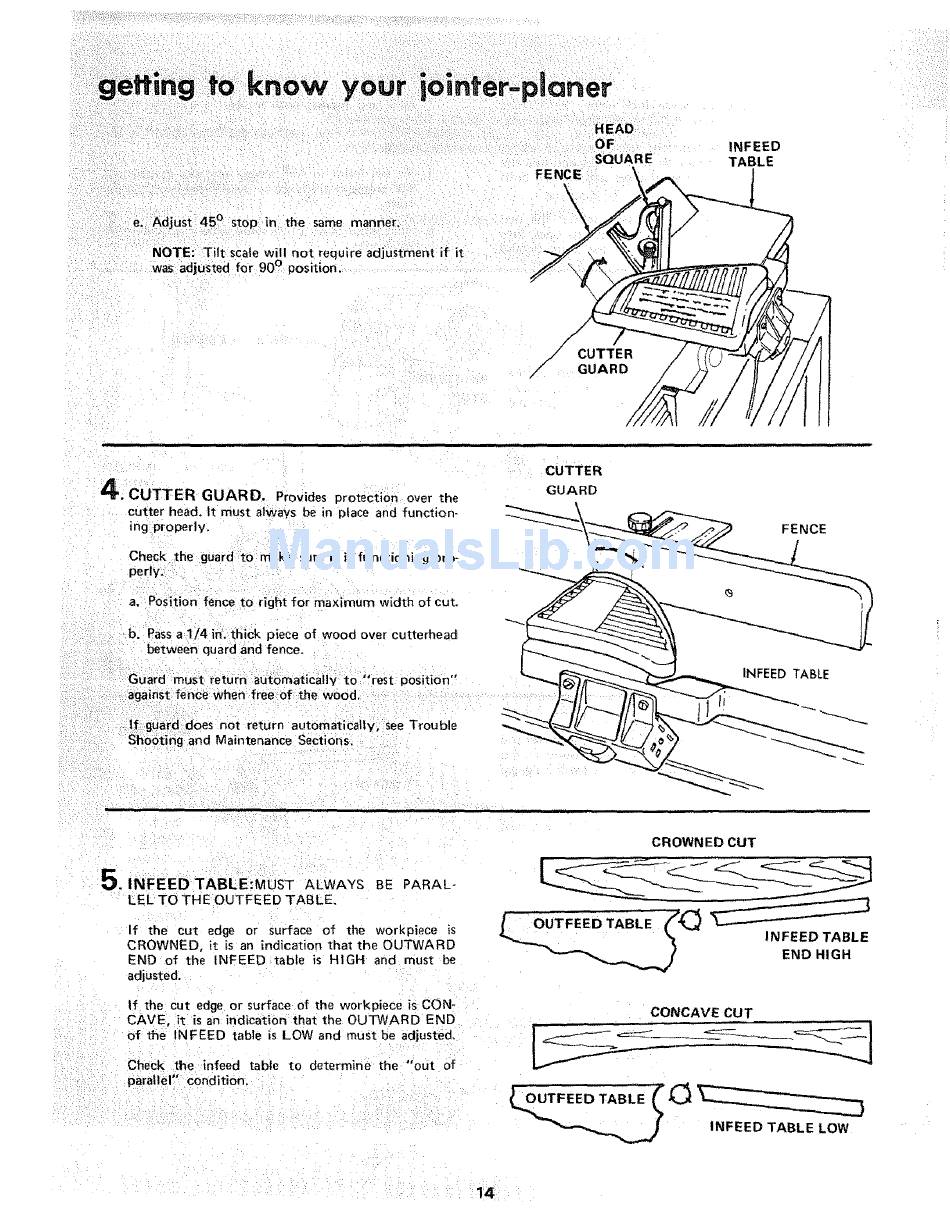

4. CUTTER GUARD,
Provides protection over the
cutter head. It must always be in place and function-
ing properly.
Check the guard to make sure it is functioning pro-
perI¥.
a. Position fence to right for maximum width of cut.
b. Pass a 1/4 in, thick piece of wood over cutterhead
between quard and fence,
Guard must return automatically to="rest position'"
against: fence when free of: the wood.
If gt_ard:does not return automatically, see Trouble
Shooting and Maintenance Sections.
i i
CUTTER
GUARD
CROWNED CUT
_. INFEEDTABLE:MUST
ALWAYS BE PARAL-
LEL TO THE OUTFEED TABLE,
If the cut edge or Surface of the workpiece is
CROWNED, it is an indication that the OUTWARD
END of the tNFEED table is HIGH and must be
adjusted.
If the cut edge or surface of the workpiece is CON-
CAVE, it is an indication that the OUTWARD END
of the INFEED table is LOW and must be adjusted,
Check the infeed table to determine the "out of
parallel" condition.
CONCAVE CUT
INFEED TABLE
END HIGH
14
