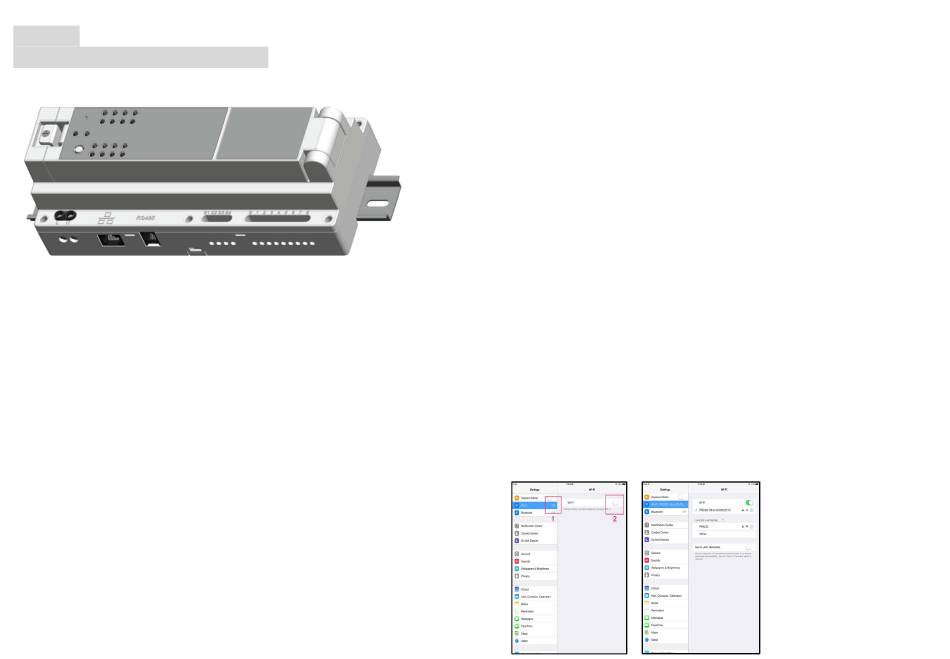

Philio PAN27 Manual

PAN27
Smart Home DIN Rail box
Note: The power cord must meet 1.25mm² or 16AWG or better
This Smart home din rail mounted box with dongles is "simply fabulous"
Smart home DIN rail box looks ok, but it's really one lean mean machine
boasting 8 output slots that can control just about anything with plug n'
play dongles. The 8 outputs correspond to 8 inputs, so the unit can be
used from the start without programming. Four additional inputs can be
used to run scenarios without the app, and the input method can also be
easily changed from push button to switch.
•
On/Off
•
Dimmer
•
Dry contact
Compatible with just about anything
By default Smart home din rail box communicates via RJ11 or RJ45 (WiFi). By simply
adding a dongle to one of the two USB ports, the box supports Z-Wave and ZigBee.
( Note: For FCC ID: RHHPAN27, it supports WLAN 2.4G mode only without Z-Wave and
Zigbee function.) A one-time installation of the all-in-one box ensures support and
compatibility with just about any system or device from any manufacturer.
Safety Precautions and Installation
•
Disconnect from supply before removing
•
Avoid installing the unit in storming or raining weather.
•
Be sure to isolate or switch off power source before installing or
maintenance.
•
Do ensure that the power supply circuit protected by a 16A circuit breaker or
suitable equivalent fuse.
•
Make sure to protect each external power circuit 5A (relay dongle) by using
either circuit breaker or equivalent suitable fuse.
IMPORTANT
•
Installation and any maintenance must be performed by skilled technicians
who are informed about the standards and technical requirements of the ap-
pliance and its proper installation. Installing or changing dongle shall also be
performed by skilled technicians. Disconnect from supply before any mainte-
nance or serving. The accessible parts to user is LED display plate after in-
stallation.
•
Check your local codes as they apply to your situation. If the house wiring is
of aluminum, consult with an electrician about proper wiring methods.
Before proceeding with the installation, TURN OFF THE POWER TO THE LIGHTING
CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID ELECTRICAL
SHOCK.
Security
Before making any connections, please read these instructions carefully.
Never remove the plastic base from DIN rail.
Do not touch live parts. High voltages present in module.
To access the interior of this equipment must first be disconnected from the mains.
Connect to the internet.
• Go to Settings, Wi-Fi, choose your own Wi-Fi SSID, and connect it.
• Once you connect to Wi-Fi, open the app
1
