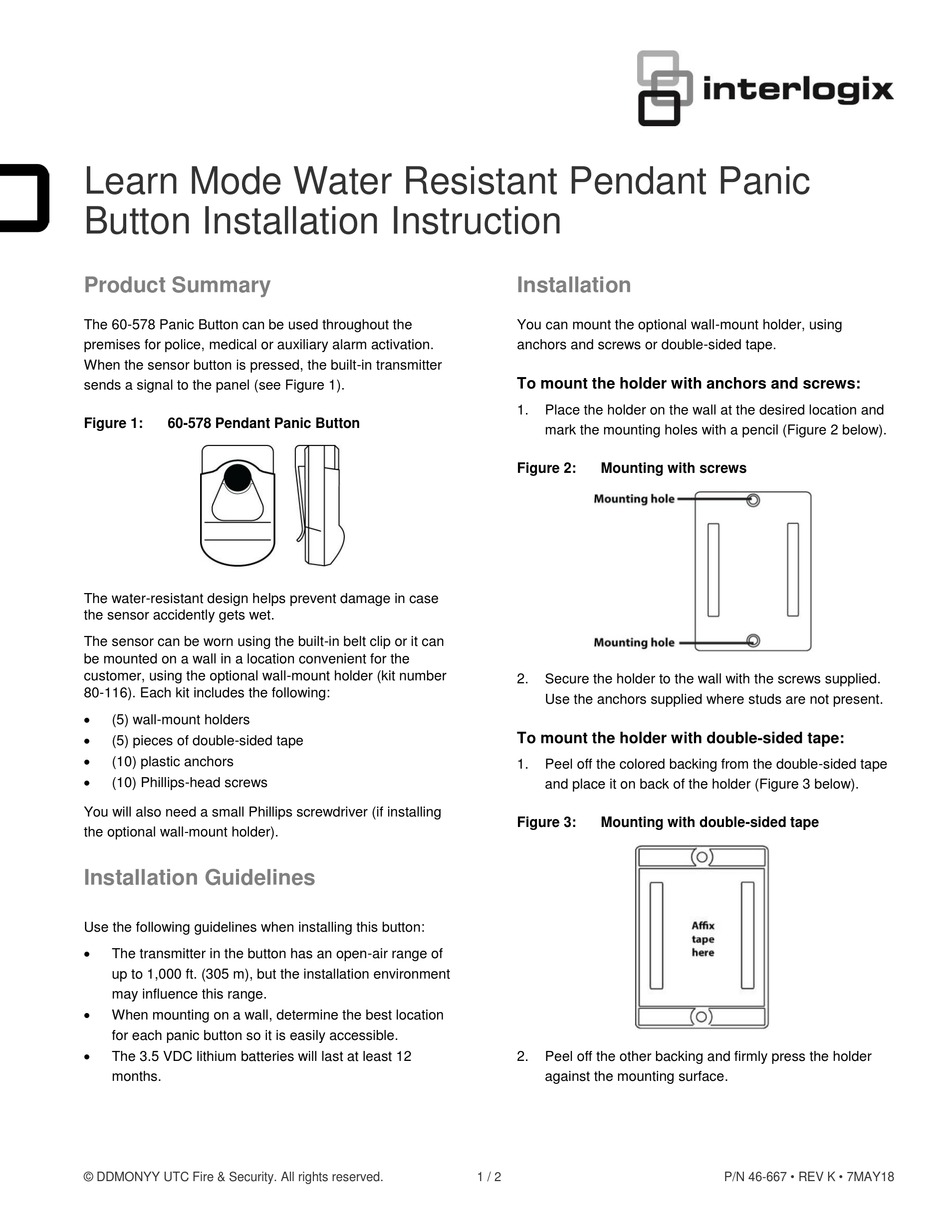

Interlogix 60-578 Installation Instruction

Learn Mode Water Resistant Pendant Panic
Button Installation Instruction
Product Summary
The 60-578 Panic Button can be used throughout the
premises for police, medical or auxiliary alarm activation.
When the sensor button is pressed, the built-in transmitter
sends a signal to the panel (see Figure 1).

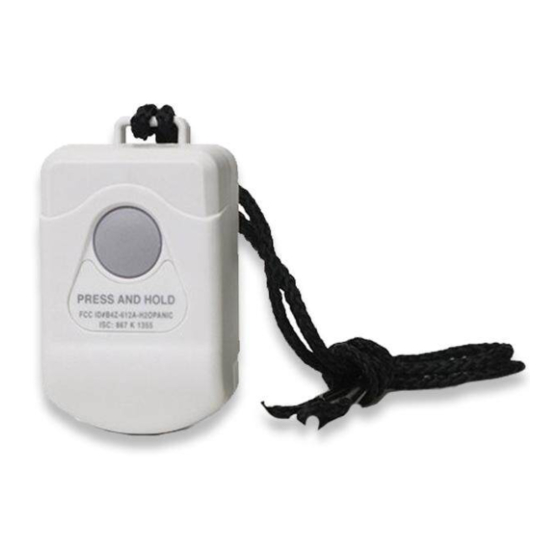

Figure 1: 60-578 Pendant Panic Button
The water-resistant design helps prevent damage in case
the sensor accidently gets wet.
The sensor can be worn using the built-in belt clip or it can
be mounted on a wall in a location convenient for the
customer, using the optional wall-mount holder (kit number
80-116). Each kit includes the following:

(5) wall-mount holders

(5) pieces of double-sided tape

(10) plastic anchors

(10) Phillips-head screws
You will also need a small Phillips screwdriver (if installing
the optional wall-mount holder).

Installation Guidelines

Use the following guidelines when installing this button:

The transmitter in the button has an open-air range of
up to 1,000 ft. (305 m), but the installation environment
may influence this range.

When mounting on a wall, determine the best location
for each panic button so it is easily accessible.

The 3.5 VDC lithium batteries will last at least 12
months.
© DDMONYY UTC Fire & Security. All rights reserved.
Installation
You can mount the optional wall-mount holder, using
anchors and screws or double-sided tape.
To mount the holder with anchors and screws:
1. Place the holder on the wall at the desired location and
mark the mounting holes with a pencil (Figure 2 below).
Figure 2: Mounting with screws
2. Secure the holder to the wall with the screws supplied.
Use the anchors supplied where studs are not present.
To mount the holder with double-sided tape:
1. Peel off the colored backing from the double-sided tape
and place it on back of the holder (Figure 3 below).
Figure 3: Mounting with double-sided tape
2. Peel off the other backing and firmly press the holder
against the mounting surface.
