Hoist Fitness H2200-B Owner's Manual

Multi-function gym
Hide thumbs

Advertisement

Table of Contents

H2200-B
MULTI-FUNCTION GYM
**WARNING!**
TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE
FLOOR USING MINIMUM 4-1/2" LENGTH BOLTS. FAILURE TO DO SO
MAY RESULT IN SERIOUS INJURY OR DEATH.
A10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H2200-B and is the answer not in the manual?

Questions and answers

Related Manuals for Hoist Fitness H2200-B

Summary of Contents for Hoist Fitness H2200-B

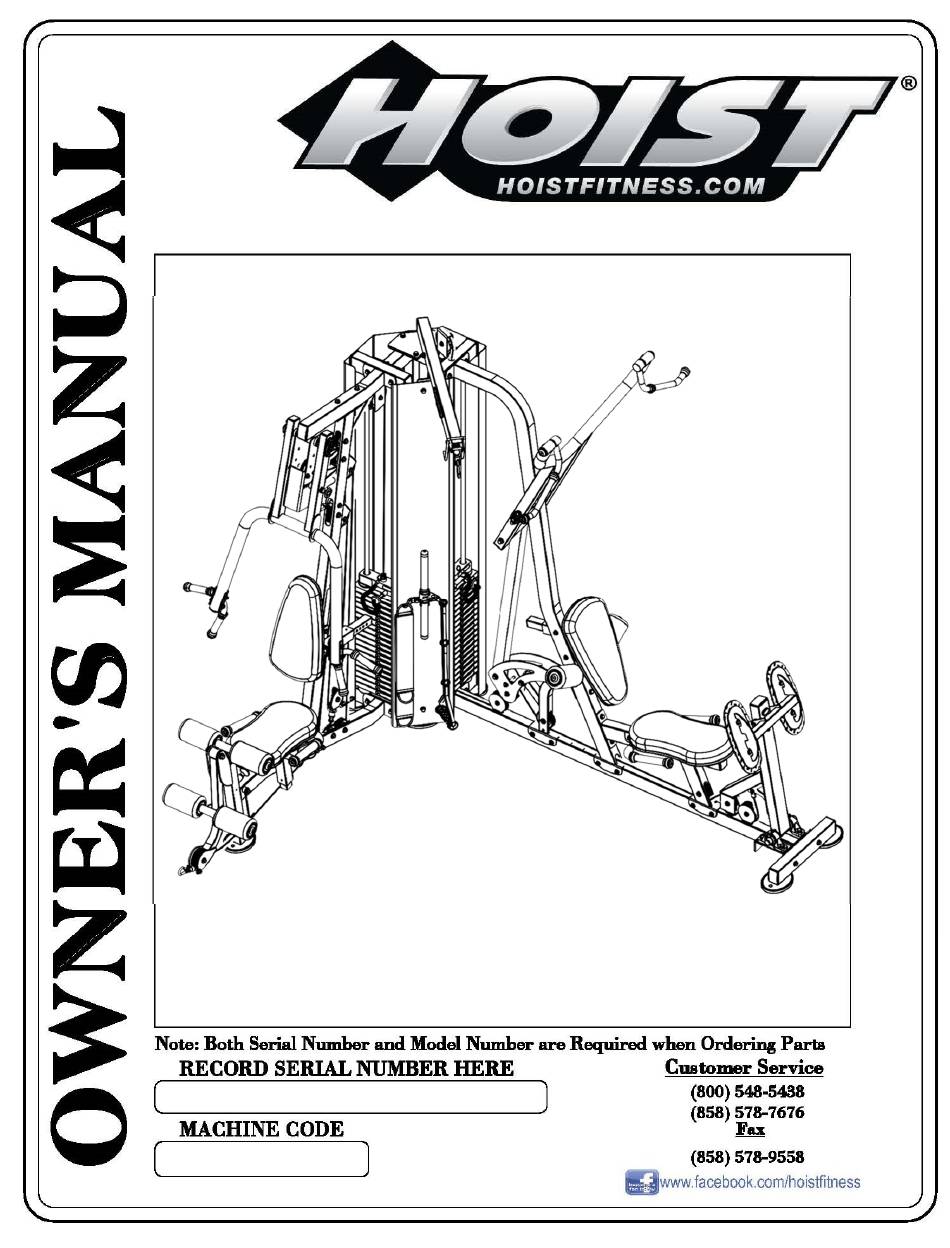

  • Page 1 H2200-B MULTI-FUNCTION GYM **WARNING!** TO PREVENT POSSIBLE TIPPING, BOLT THIS UNIT TO THE EXERCISE FLOOR USING MINIMUM 4-1/2” LENGTH BOLTS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH.

  • Page 2: Table Of Contents

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL CONTENTS INSTRUCTIONS……………………………..…………………... FRAME ASSEMBLY……………………..………..………….… PRE-ASSEMBLY………………………………..………………. DECAL PLACEMENT………………………..……………….. ACCESSORIES………………………..………………………. DECAL REFERENCE………………...….………….……. PART LIST…………………………..……….…….…………..… ABBREVIATIONS……………………..……….………….…….. BOLT SIZING CHART…………………………………………... WASHER SIZING CHART…………….….…….……………..MAINTANENCE SCHEDULE…………..………….………..…. GENERAL MAINTANENCE INFORMATION.....…….… WEIGHT TRAINING TIPS…………………….……….……….. EXERCISE LOG…………………………………..……………... LIMITED WARRANTY…………………………..………………. PAGE 01 H2200-B ASSEMBLY...

  • Page 3: Instructions

    Be sure to have your serial number and this manual when calling. When all parts have been accounted for, continue on. TOOLS REQUIRED Ratchet Wrench 1/2", 9/16" and 3/4" Sockets Adjustable Wrench Rubber Mallet Tape Measure Level SAE Hex Key Wrench Set Two People H2200-B ASSEMBLY PAGE 02...
  • Page 4 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL ***THIS PAGE WAS INTENTIONALLY LEFT BLANK*** PAGE 03 H2200-B ASSEMBLY...

  • Page 5: Frame Assembly

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY H2200-B ASSEMBLY PAGE 04...
  • Page 6 UNTIL (9) AND (21) PIVOT FREELY -REST (36) ON GUIDE RODS. DO NOT SECURE TO CENTER COLUMN AT THIS TIME - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. ADD LUBRICANT (136) TO GUIDE RODS (46) PAGE 05 H2200-B ASSEMBLY...
  • Page 7 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 06...
  • Page 8 NOTE: - HAND TIGHTEN HARDWARE -ITEMS MARKED WITH A (*) ARE INCLUDED WITH THE HPA-1 PRESS ARM OPTION. PLEASE REFER TO HPA-1 MANUAL FOR FURTHER ASSEMBLY INSTRUCTIONS - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 07 H2200-B ASSEMBLY...
  • Page 9 NOTE: - HAND TIGHTEN HARDWARE -ITEMS MARKED WITH A (*) ARE INCLUDED WITH THE HPA-2 PRESS ARM OPTION. PLEASE REFER TO HPA-2 MANUAL FOR FURTHER ASSEMBLY INSTRUCTIONS - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 08...
  • Page 10 FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE -REST (35) ON GUIDE RODS. DO NOT SECURE TO CENTER COLUMN AT THIS TIME - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. ADD LUBRICANT (136) TO GUIDE RODS (46) PAGE 09 H2200-B ASSEMBLY...
  • Page 11 FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE -ENSURE (54) IS CENTERED ON (29) AND SECURE WITH (91) SET SCREWS. -ENSURE HANDLES (23) PIVOTS FREELY WHEN INSTALLATION IS COMPLETE - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 10...
  • Page 12 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE FIRST - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 11 H2200-B ASSEMBLY...
  • Page 13 OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE FIRST -WRENCH TIGHTEN (111) HARDWARE THEN BACK OFF APPROXIMATELY ½ TURN OR UNTIL (40) PIVOTS FREELY. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 12...
  • Page 14 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 13 H2200-B ASSEMBLY...
  • Page 15 -SET SCREWS MARKED WITH AN (*) IN THE DETAIL VIEW TO THE RIGHT ARE PART OF THE PILLOW BLOCK ASSEMBLY (79). FASTEN THEM AFTER (47) SHAFT HAS BEEN CENTERED AND FASTENED WITH (131) SET SCREWS. - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 14...
  • Page 16 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 15 H2200-B ASSEMBLY...
  • Page 17 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: HAND TIGHTEN HARDWARE WRENCH TIGHTEN (110) THEN BACK-OFF APPROXIAMTELY ½ TURN OR UNTIL (13) PIVOTS FREELY - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 16...
  • Page 18 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE WRENCH TIGHTEN (113) THEN BACK OFF APPROXIMATELY ½ TURN OR UNTIL (61) PIVOTS FREELY - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 17 H2200-B ASSEMBLY...
  • Page 19 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: - HAND TIGHTEN HARDWARE FIRST - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 18...
  • Page 20 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 19 H2200-B ASSEMBLY...
  • Page 21 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: HAND TIGHTEN HARDWARE SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY H2200-B ASSEMBLY PAGE 20...
  • Page 22 *IMPORTANT* WRENCH TIGHTEN ALL PREVIOUSLY HAND TIGHTENED HARDWARE. NOW THAT THE H2200-B FRAME IS COMPLETELY ASSEMBLED, TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. USE A LEVEL TO CHECK THAT THE GUIDE RODS ARE PERPINDICULAR IN BOTH DIRECTIONS IF NOT, IT WILL BE NECESSARY TO LOOSEN SOME FRAME HARDWARE TO RE-ALIGN THE FRAME AND RETIGHTEN BOLTS.
  • Page 23 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL CABLE PROFILE VIEW NOTE: SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. NOTE: BE SURE CABLE RUNS BETWEEN THE PULLEY AND GUARD BOLT AS SHOWN 160 3/4” LG. [4083] H2200-B ASSEMBLY PAGE 22...
  • Page 24 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 23 H2200-B ASSEMBLY...
  • Page 25 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 24...
  • Page 26 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 25 H2200-B ASSEMBLY...
  • Page 27 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 26...
  • Page 28 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 27 H2200-B ASSEMBLY...
  • Page 29 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL CABLE PROFILE VIEW NOTE: SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. NOTE: BE SURE CABLE RUNS BETWEEN THE PULLEY AND GUARD BOLT 184 3/4” LG. [4693] H2200-B ASSEMBLY PAGE 28...
  • Page 30 A MINIMUM OF 3/8” WITH JAM NUT TIGHTENED SECURELY TO ENSURE PROPER CONNECTION. LANYARD INSTALLATION: DURING INSTALLATION OF YOUR UNIT, ENSURE THAT THE LANYARD RING IS INSTALLED BETWEEN THE JAM NUT AND CABLE BOLT AS SHOWN BELOW PAGE 29 H2200-B ASSEMBLY...
  • Page 31 SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. NOTE: PARTS SHOWN IN DETAIL VIEW TO THE RIGHT ARE PART OF THE OPTIONAL HPA-1 PRESS ARM ASSEMBLY. PLEASE REFER TO HPA-1 MANUAL IF FURTHER ASSEMBLY INSTRUCTION IS NEEDED. H2200-B ASSEMBLY PAGE 30...
  • Page 32 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 31 H2200-B ASSEMBLY...
  • Page 33 LOOSEN JAM NUT AND THREAD BOLT IN/OUT TO GIVE THE CABLE PROPER TENSION. RE-TIGHTEN JAM NUT. WARNING — CABLE BOLT MUST BE THREADED A MINIMUM OF 3/8” WITH JAM NUT TIGHTENED SECURELY TO ENSURE PROPER CONNECTION. H2200-B ASSEMBLY PAGE 32...
  • Page 34 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL CABLE PROFILE VIEW NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. NOTE: BE SURE CABLE RUNS BETWEEN THE PULLEY AND GUARD BOLT 184 3/4” LG. [4693] PAGE 33 H2200-B ASSEMBLY...
  • Page 35 A MINIMUM OF 3/8” WITH JAM NUT TIGHTENED SECURELY TO ENSURE PROPER CONNECTION. LANYARD INSTALLATION: DURING INSTALLATION OF YOUR UNIT, ENSURE THAT THE LANYARD RING IS INSTALLED BETWEEN THE JAM NUT AND CABLE BOLT AS SHOWN BELOW H2200-B ASSEMBLY PAGE 34...
  • Page 36 SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. NOTE: PARTS SHOWN IN DETAIL VIEW TO THE RIGHT ARE PART OF THE OPTIONAL HPA-2 PRESS ARM ASSEMBLY. PLEASE REFER TO HPA-2 MANUAL IF FURTHER ASSEMBLY INSTRUCTION IS NEEDED. PAGE 35 H2200-B ASSEMBLY...
  • Page 37 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 36...
  • Page 38 LOOSEN JAM NUT AND THREAD BOLT IN/OUT TO GIVE THE CABLE PROPER TENSION. RE-TIGHTEN JAM NUT. WARNING — CABLE BOLT MUST BE THREADED A MINIMUM OF 3/8” WITH JAM NUT TIGHTENED SECURELY TO ENSURE PROPER CONNECTION. PAGE 37 H2200-B ASSEMBLY...
  • Page 39 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL CABLE PROFILE VIEW NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. 113 1/2” LG. [2882] H2200-B ASSEMBLY PAGE 38...
  • Page 40 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 39 H2200-B ASSEMBLY...
  • Page 41 LOOSEN JAM NUT AND THREAD BOLT IN/OUT TO GIVE THE CABLE PROPER TENSION. RE-TIGHTEN JAM NUT. WARNING — CABLE BOLT MUST BE THREADED A MINIMUM OF 3/8” WITH JAM NUT TIGHTENED SECURELY TO ENSURE PROPER CONNECTION. H2200-B ASSEMBLY PAGE 40...
  • Page 42 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL CABLE PROFILE VIEW NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. NOTE: BE SURE CABLE RUNS BETWEEN THE PULLEY AND GUARD BOLT AS SHOWN 150 13/16” LG. [3831] PAGE 41 H2200-B ASSEMBLY...
  • Page 43 LOOSEN JAM NUT AND THREAD BOLT IN/OUT TO GIVE THE CABLE PROPER TENSION. RE-TIGHTEN JAM NUT. WARNING — CABLE BOLT MUST BE THREADED A MINIMUM OF 3/8” WITH JAM NUT TIGHTENED SECURELY TO ENSURE PROPER CONNECTION. H2200-B ASSEMBLY PAGE 42...
  • Page 44 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME ENSURE TO ROUTE CABLE UNDER GUARD BOLT (103) SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 43 H2200-B ASSEMBLY...
  • Page 45 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 44...
  • Page 46 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE INSTALL CABLE AND PULLEYS AT THE SAME TIME SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 45 H2200-B ASSEMBLY...
  • Page 47 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL FRAME ASSEMBLY NOTE: WRENCH TIGHTEN HARDWARE • SOME PARTS MAY HAVE BEEN • REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 46...
  • Page 48 REMOVED FOR CLARITY. *IMPORTANT* WRENCH TIGHTEN ALL PREVIOUSLY HAND TIGHTENED HARDWARE. NOW THAT THE H2200-B IS COMPLETELY ASSEMBLED, TAKE TIME TO ASSURE THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR.USE A LEVEL TO CHECK THAT THE GUIDE RODS ARE PERPINDICULAR IN BOTH DIRECTIONS.

  • Page 49: Pre-Assembly

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL PRE-ASSEMBLY H2200-B ASSEMBLY PAGE 48...
  • Page 50 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL PRE-ASSEMBLY PAGE 49 H2200-B ASSEMBLY...
  • Page 51 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL PRE-ASSEMBLY H2200-B ASSEMBLY PAGE 50...

  • Page 52: Decal Placement

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL DECAL PLACEMENT NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. PAGE 51 H2200-B ASSEMBLY...

  • Page 53: Accessories

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL ACCESSORIES NOTE: - SOME PARTS MAY HAVE BEEN REMOVED FOR CLARITY. H2200-B ASSEMBLY PAGE 52...

  • Page 54: Decal Reference

    OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL DECAL REFERENCE 021-0003254 021-0003117 021-0003995 PAGE 53 H2200-B ASSEMBLY...
  • Page 55 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL DECAL REFERENCE 021-0003113 SERIAL # DECAL 021-0003008 021-0003135 H2200-B ASSEMBLY PAGE 54...
  • Page 56 OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL DECAL REFERENCE 021-0018022 021-0003965 PAGE 55 H2200-B ASSEMBLY...

  • Page 57: Part List

    BENCH PRESS TOP MOUNT 026-01X7204 CENTER COLUMN 026-01X7205 LAT UPRIGHT 026-01X7206 LEG PRESS BASE 026-01X7207 LAT PULL LOWER ARM MOUNT 026-01X7208 PAD ADJUSTER 026-01X7209 PAD / ROLLER ADJUSTER 026-01X7210 GUIDE ROD MOUNT BOTTOM-1 026-01X7211 GUIDE TOP MOUNT-1 H2200-B ASSEMBLY PAGE 56...
  • Page 58 1.00" X 9.25" LG. 026-01PL0235-31 1.188" X 7.00" OPEN END GRIP 026-01PL2005 PLUG BUMPER (2 STEM) 026-01PL2122-B OVAL-SHAPED RUBBER FOOT 026-01PL2908 END CAP- 1.9685" X 2.9528" (BLACK) 026-01PL2910 ACCESSORY HOLDER 026-01PL2911 PANEL H-TRIM 026-01PL2912 STOP BUMPER PAGE 57 H2200-B ASSEMBLY...
  • Page 59 3/8"-16UNC X 1.00" BHCS (WZ) 011-0002042 3/8"-16UNC X 1.00" FHCS (WZ) 011-0002044 3/8"-16UNC X 1.00" FHCS (WZ) W/NYLON PATCH 011-0101063 3/8"-16UNC X 1.00" SHCS (WZ) 011-0107021 1/2"-13UNC X 5.50" HHB (WZ) 011-0107034 1/2"-13UNC X 3.25" HHB (WZ) H2200-B ASSEMBLY PAGE 58...
  • Page 60 TOUCH-UP PAINT - BOTTLE: 1oz. - COLOR: PLATINUM 021-0003965 DECAL: WEIGHT STACK 22 (10-200 LBS.) 002-0001013 1cc of Synthetic Multi-Purpose Grease (PTFE) 200 LBS. STACK (8.25 LBS. TOP PLATE W/ 20 HOLE STEM WS#22 + 50 LBS UPGRADE PAGE 59 H2200-B ASSEMBLY...

  • Page 61: Abbreviations

    HHB = Hex Head Bolt FHCS = Flat Head Cap Screw BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw Low Head SHCS = Low Head Socket Head Cap Screw SHSS = Socket Head Shoulder Screw H2200-B ASSEMBLY PAGE 60...

  • Page 62: Bolt Sizing Chart

    RECOMMENDED RECOMMENDED RECOMMENDED TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: 47-65 ft-lbs 5-7 ft-lbs 19-26 ft-lbs 3/8" SHSS 5/16" SHSS 1/4" SHSS RECOMMENDED RECOMMENDED RECOMMENDED TORQUE RANGE: TORQUE RANGE: TORQUE RANGE: 17-22 ft-lbs 8-10 ft-lbs 3-4 ft-lbs PAGE 61 H2200-B ASSEMBLY...

  • Page 63: Washer Sizing Chart

    CURVED WASHER LOCK WASHER LOCK WASHER LOCK WASHER SPACER 026-01M0238 016-0009003 013-0003002 2" ALUMINUM 1" SHIM WASHER 3/8" FENDER WASHER FLATHEAD CAP 013-0003004 026-01PL151 1 1/16" PLASTIC 1 1/16" FENDER WASHER FENDER WASHER 014-0018002 1" LONG SPACER H2200-B ASSEMBLY PAGE 62...
  • Page 64 026-01M0762 026-01M0768 .44" LONG HEAVY 1 1/4" LONG HEAVY 1 1/2" LONG HEAVY FLANGED SPACER FLANGED SPACER FLANGED SPACER 026-01M0239 026-01M0240 1 5/8" ALUMINUM 1 3/8" ALUMINUM FLATHEAD CAP FLATHEAD CAP 026-01M0600 .625" LONG FLANGED SPACER PAGE 63 H2200-B ASSEMBLY...

  • Page 65: Maintanence Schedule

    Your equipment comes with a commercial maintenance decal. For personal, in home use, please follow the home maintenance schedule listed above. Never use ammonia, acid-based, or petroleum-based solvents on any portion of the machine as it may damage the finish. H2200-B ASSEMBLY PAGE 64...

  • Page 66: General Maintanence Information

    OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: *Check all pieces for signs of visible wear or damage. *Check springs in snap hooks and pull-pins for proper tension and alignment.

  • Page 67: Weight Training Tips

    To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training. Now that you have your H2200-B HOIST® Fitness System, it is only natural that you want to get started immediately. First, determine a set of realistic goals and objectives for yourself.

  • Page 68: Exercise Log

    OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL OWNER'S MANUAL PAGE 67 H2200-B ASSEMBLY...

  • Page 69: Limited Warranty

    Hoist Fitness Systems sole responsibility shall be to repair or replace the component within the terms stated above. Hoist Fitness Systems shall not be liable for any loss or damage of any kind including any incidental or consequential damages resulting, directly or indirectly from any warranty expressed or implied or any other failure of this product.
