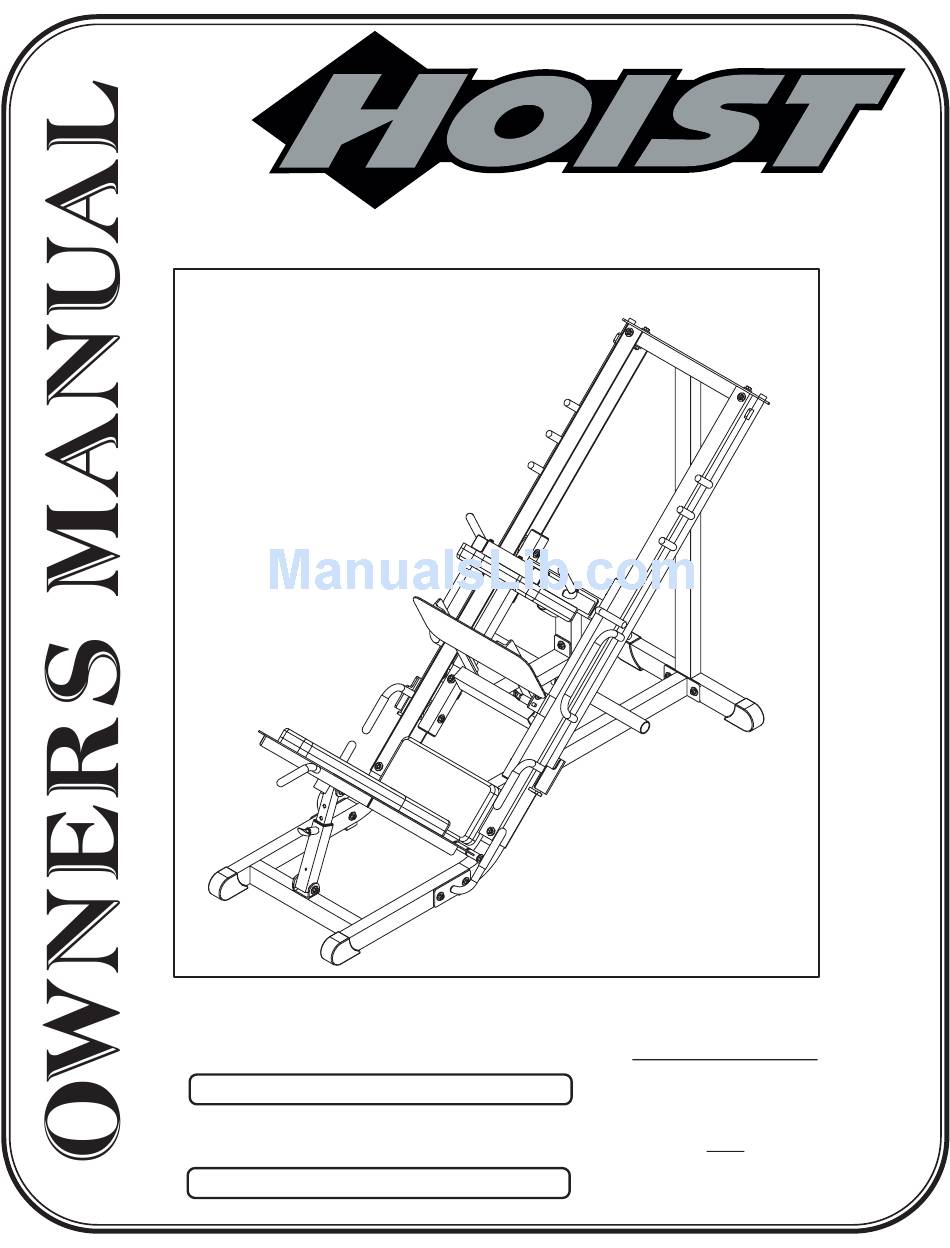

LEG PRESS HACK COMBO
Note: Both Serial Number and Model Number are Required when Ordering Parts
RECORD SERIAL NUMBER HERE
CATALOG NUMBER
1205-000
CATALOG NUMBER
HF4357
Customer Service
(800) 548-5438
(619) 578-7676
Fax
(619) 578-9558

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF4357 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hoist Fitness HF4357

  • Page 1 HF4357 LEG PRESS HACK COMBO Note: Both Serial Number and Model Number are Required when Ordering Parts Customer Service RECORD SERIAL NUMBER HERE (800) 548-5438 (619) 578-7676 CATALOG NUMBER (619) 578-9558 1205-000 CATALOG NUMBER...
  • Page 2: Table Of Contents

    ............PARTS LISTING ................HARDWARE LISTING ..............BOLT SIZING CHART ..............WASHER SIZING CHART ............DECAL PLACEMENTS ..............WEIGHT TRAINING TIPS ............WEIGHT TRAINING EXERCISE LOG ........GENERAL MAINTENANCE ............MAINTENANCE SCHEDULE............LIMITED WARRANTY ..............HF4357 Assembly Page - 1...
  • Page 3: Instructions (Step 1)

    Be sure to have your serial number and this catalog when calling. When all parts have been accounted for, continue on to Step 2. SUGGESTED TOOLS Socket Wrench 1/2”, 9/16” & 3/4” Sockets Crescent Wrench Rubber Mallet Tape Measure HF4357 Assembly Page - 2...
  • Page 4 O W N E R S I N S T R U C T I O N S HF4357 Assembly Page - 3...
  • Page 5: Frame Assembly (Step 2)

    O W N E R S I N S T R U C T I O N S Step 2 F R A M E A S S E M B L Y HF4357 Assembly Page - 4...
  • Page 6 4 - Left Rail E - 1/2”-13 x 4 1/4” Hex Head Screw AA - 1/2” Flat Washer 5 - Right Rail BA - 1/2” Nylok Nut 8 - Right Handle 9 - Left Handle HF4357 Assembly Page - 5...
  • Page 7 O W N E R S I N S T R U C T I O N S HF4357 Assembly Page - 6...
  • Page 8 B - 1/2”-13 x 4” Hex Head Screw G - 1/2”-13 x 5 1/2” Hex Head Screw 10 - Outer Footrest Adjuster 15 - Hack Footrest AA - 1/2” Flat Washer BA - 1/2” Nylok Nut 18 - Inner Footrest Adjuster HF4357 Assembly Page - 7...
  • Page 9 O W N E R S I N S T R U C T I O N S HF4357 Assembly Page - 8...
  • Page 10 AB - 3/8” Flat Washer AD - 1/2” Nylon Flat Washer BA - 1/2” Nylok Nut BB - 3/8” Nylok Nut BC - 1/2” Nylok Nut (Thin) CJ - 2” Dia. Wheel CK - 3” Dia. Wheel HF4357 Assembly Page - 9...
  • Page 11 Carriage (6) when assembling. for clarity. Repeat assembly where for clarity. Repeat assembly where Nylon Washer is placed in this area to Nylon Washer is placed in this area to applicable. applicable. reduce friction reduce friction HF4357 Assembly Page - 10...
  • Page 12 A - 1/2”-13 x 3” Hex Head Screw E - 1/2”-13 x 4 1/4” Hex Head Screw 3 - Rear Upright 4 - Left Rail AA - 1/2” Flat Washer BA - 1/2” Nylok Nut 5 - Right Rail 6 - Carriage HF4357 Assembly Page - 11...
  • Page 13 O W N E R S I N S T R U C T I O N S ASSEMBLY -1- ASSEMBLY -1- ASSEMBLY -2- ASSEMBLY -2- HF4357 Assembly Page - 12...
  • Page 14 A - 1/2”-13 x 3” Hex Head Screw AA - 1/2” Flat Washer 4 - Left Rail 5 - Right Rail BA - 1/2” Nylok Nut 6 - Carriage 11 - Wheel Mount 12 - Lockout Handles 13 - Lockout Top Mount HF4357 Assembly Page - 13...
  • Page 15 NOTE: Adjust the Wheel Mounts (11) out until the Wheels (CJ) contact the inside of the Left Rail. Wheels (CJ) contact the inside of the Left Rail. Then Wrench Tighten bolts. Then Wrench Tighten bolts. See (DETAIL -E-). See (DETAIL -E-). HF4357 Assembly Page - 14...
  • Page 16 7 - Shoulder Pad Mount 17 - Back Pad Anchor AC - 5/16” Flat Washer CL - 12” x 35” Upholstery Pad CM - 9” x 18” Upholstery Pad CN - 4” x 12” Upholstery Pad HF4357 Assembly Page - 15...
  • Page 17 Hack Exercises, and as shown in (VIEW - 2-) for Hack Exercises, and as shown in (VIEW - 2-) for Leg Press Exercises. for Leg Press Exercises. VIEW -1- VIEW -1- VIEW -2- VIEW -2- HF4357 Assembly Page - 16...
  • Page 18: Pre-Assembly

    CF - 1/2” Oilite CG - Short Pull Pin CH - Long Pull Pin CP - 4” x 12” Non-Skid CQ - Rubber Donut CR - Weight Horn Sleeve CS - 1 5/8 Dia. End Cap HF4357 Assembly Page - 17...
  • Page 19 O W N E R S I N S T R U C T I O N S P R E A S S E M B L E D P A R T S HF4357 Assembly Page - 18...
  • Page 20 O W N E R S I N S T R U C T I O N S HF4357 Assembly Page - 19...
  • Page 21: Parts Listing

    26-STD-HF357-09 Left Handle 26-STD-HF357-10 Outer Footrest Adjuster 26-STD-HF357-11 Wheel Mount 26-STD-HF357-12 Lockout Handles 26-STD-HF357-13 Lockout top Mount 26-STD-HF357-14 Weight Carrier 26-STD-HF357-15 Hack Footrest 26-STD-HF357-16 Leg Press Footrest 26-STD-HF357-17 Back Pad Anchor 26-STD-HF357-18 Inner Footrest Adjuster HF4357 Assembly Page - 20...
  • Page 22: Hardware Listing

    12" x 35" Upholstery Pad 022-01PD0028 9" x 18" Upholstery Pad 022-01PD0029 4" x 12" Upholstery Pad 021-0005007 4" x 12" Non-Skid 26-STD-06-0200 Rubber Donut 26-STD-06-0201 Weight Horn Sleeve 026-01PL183 1 5/8" Dia. End Cap HF4357 Assembly Page - 21...
  • Page 23: Bolt Sizing Chart

    O W N E R S I N S T R U C T I O N S B O L T S I Z I N G C H A R T HF4357 Assembly Page - 22...
  • Page 24: Washer Sizing Chart

    I N S T R U C T I O N S W A S H E R S I Z I N G C H A R T SMALL, SAE, 26mm LARGE, USS, 34mm LARGE, USS, 25mm HF4357 Assembly Page - 23...
  • Page 25 O W N E R S I N S T R U C T I O N S HF4357 Assembly Page - 24...
  • Page 26: Decal Placements

    D E C A L P L AC E M E N T S Decal Descriptions 1 - SERIAL # DECAL 2 - 021-0003114 3 - 021-0003113 4 - 021-0003221 5 - 021-0003105-Y 6 - 021-0003104 Page - 25 HF4357 Assembly...
  • Page 27 00-00-000000 SERIAL # DECAL This decal has been attached to this piece of equipment to provide information regarding operation, safety and maintenance. Before use, take the time to read these decals. WARNING PINCH POINTS 021-0003114 HF4357 Assembly Page - 26...
  • Page 28 D E C A L R E F E R E N C E WARNING PINCH POINTS 021-0003113 This decal has been attached to this piece of equipment to provide information regarding operation, safety and maintenance. Before use, take the time to read these decals. HF4357 Assembly Page - 27...
  • Page 29 O W N E R S I N S T R U C T I O N S D E C A L R E F E R E N C E 021-0003221 Page - 28 HF4357 Assembly...
  • Page 30 D E C A L R E F E R E N C E This decal has been attached to this piece of equipment to provide information regarding operation, safety and maintenance. Before use, take the time to read these decals. 021-0003105-Y 021-0003104 Page - 29 HF4357 Assembly...
  • Page 31 O W N E R S I N S T R U C T I O N S HF4357 Assembly Page - 30...
  • Page 32: Weight Training Tips

    Pay attention to your breathing. Exhale when you exert is a general rule of thumb. Never hold your breath. Page - 31 HF4357 Assembly...
  • Page 33: Weight Training Exercise Log

    O W N E R S I N S T R U C T I O N S HF4357 Assembly Page - 32...
  • Page 34 O W N E R S I N S T R U C T I O N S Page - 33 HF4357 Assembly...
  • Page 35: General Maintenance Information

    O W N E R S I N S T R U C T I O N S HOIST FITNESS SYSTEMS GENERAL MAINTENANCE INFORMATION Links, Pull-Pins, Snap Locks, Swivels, Weight Stack Pins: Check all pieces for signs of visible wear or damage.
  • Page 36 (lithium, super lube, etc.) into the inside of the bearing. Using your finger, press the grease into the ball-bearings and their tracks. Repeat until the ball-bearing tracks are full of grease. Insert the shaft back into the bearing and wipe off excess grease. PLEASE KEEP THIS FOR YOUR RECORDS. Page - 35 HF4357 Assembly...
  • Page 37: Maintenance Schedule

    6 MONTHS YEARLY Linear Bearings Replace; YEARLY 3 YEARS Cables, Belts and Connecting Parts Your equipment comes with a commercial maintenance decal. For personal, in home use, please follow the home maintenance schedule listed above. Page - 36 HF4357 Assembly...
  • Page 38: Limited Warranty

    Hoist Fitness Systems warrants this product to the original purchaser to be free from defects in workmanship and/or materials under normal use or service. If at any time a component part is defective, Hoist Fitness Systems shall repair or replace it (at Hoist Fitness Systems option) within a reasonable period of time. This warranty does not cover costs of removal.
