- Page 1 User Manual Infrared-Rotisserie RT-Series...
-
Page 3: Table Of Contents
Contents 1 Contents Contents ........................... 3 Important References ....................... 4 Basic safety instructions ..................... 4 Warranty and Liability......................5 Explaination of Symbols and notes for the user ..............5 Right of origin (Copyright) ....................5 Special safety notes for the user ..................6 Product information ........................ -
Page 4: Important References
All Wall of Flame Rotisseries are built for the preparation of food only. Any other use of the unit is only allowed after consulting UBERT GASTROTECHNIK GMBH. Damages which result out of wrong use UBERT GASTROTECHNIK GMBH cannot be held responsible. Part of the due use is also: ·... -
Page 5: Warranty And Liability
Important References 2.2 Warranty and Liability All products from the manufacturer are manufactured to the high nowadays technical standards and comply with all valid regulations. The manufacturer will grant a warranty to compensate all rec- ognized valid claims. All other Warranty and Liability claims for people and appliances are exclud- ed, especially if a possible damage is caused: •... -
Page 6: Special Safety Notes For The User
Important References 2.5 Special safety notes for the user 2.5.1 Safety devices • Before setting the appliance into operation all safety devices and all removable parts have to be fitted and must operate in working order. • Safety devices may only be removed after switching off the appliance completely. You must make sure, that the appliance cannot be switched on again during mainte- nance processes. - Page 7 Important References 2.5.7 Possible hazards caused by electric energy • Repair works on electrical leads and devices must be carried out by qualified electri- cians only. • The connection must follow the rules of the local determinations. • Check the electrical components of the appliance on a regular basis. Wiring being connected improper or melted cables have to be repaired immediately.
-
Page 8: Product Information

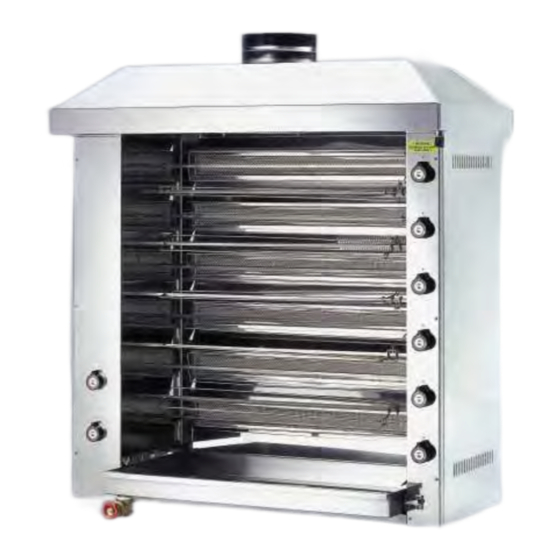

Product information 3 Product information 3.1 Introduction The units are specially designed for operation in mobile sales vehicles. The Infrared-Rotisserie is suitable for Rotisserie-Shops, tents and the like. With a capacity between 2-15 spits depending on the model, the Infrared-Rotisserie fits to the highest demands. Available with one or two rows of spits, it saves energy cost. -
Page 9: Technical Data
Product information 3.3 Technical Data 3.3.1 Dimensions [mm] Shown example: RT44G Model Spits Width Depth Height without Height with Hight of Hood (A) Hood (B) connector RT2G 1280mm 700mm 535mm 711mm 100mm RT22G 1280mm 700mm 535mm 711mm 100mm RT3G 1280mm 700mm 700mm 876mm... - Page 10 Product information 3.3.2 Electrical Details, Power Consumption Model gassconnection nominal gas power el Connection RT2G R ¾“ 10kW 230V, 1/N, 50Hz, 0.03kW RT22G R ¾“ 10kW 230V, 1/N, 50Hz, 0.03kW RT3G R ¾“ 15kW 230V, 1/N, 50Hz, 0.03kW RT33G R ¾“ 15kW 230V, 1/N, 50Hz, 0.03kW RT4G...
- Page 11 Product information 3.3.5 Nozzle table nominal minimum Size of main Size of min. Opening of No. of Model gas power gas power Gas type nozzles nozzles primary air nozzles [kW] [kW] [mmx100] [mmx100]. [mm] RT2/22G 7,17 Propane fixed≙2,5 RT2/22G 7,17 Natural H open fixed≙2,5...
- Page 12 Product information 3.3.6 Indication of consumption Consumption of Consumption of Consumption of Model Gastype Propane on H Natural H on H Natural L on H =12,87 =9,45 =8,13 RT2/22G Propane 0,78 RT2/22G Natural H 1,06 RT2/22G Natural L 1,23 RT3/33G Propane 1,17 RT3/33G...
- Page 13 20, 30 mbar 2H3B/P 3.3.8 Nameplate The installation and operation manual is made for the Ubert Infrared Rotisserie of the model series RT with the categories of natural and propane mentioned under point 3.3.7. The units correspond to kind of construction "B11".
-
Page 14: Initial Installation Procedure
Initial Installation Procedure 4 Initial Installation Procedure Our Infrared Rotisseries are packed for safe transport, so that they can reach their destination without any damages. However we advise an examination of Infrared Rotisseries right after delivery. Attention! Do report visible damages immediately! 4.1 Unpacking •... -
Page 15: Installation
Initial Installation Procedure 4.3 Installation Before the unit can be installed it is necessary to have the comments / approvement of the responsible gas supply company. Only a installation company which is approved by the responsible gas supply compa- ny is allowed to set up the unit, install the gas connection and to start the operation. The laws, technical regulations and directions mentioned under section 4.2.3 have to be observed. -
Page 16: Preparation For Operation
Initial Installation Procedure right rear wall. Note! After finishing any installationwork, maintainance or repair, check whether the ground wires are connected properly to the casing. 4.4 Preparation for operation Before you can operate the Infrared Rotisserie you have to clean the unit and all removable parts (eg. -
Page 17: Re-Adjustment
Ubert service technicians. The corresponding nozzles sizes are to be find in the nozzle table. For re-adjustment the following measures have to be made: •... -
Page 18: Operation
To ignite, quarter-turn the knob C to the left (Max. position). · Then push the knob C to allow the gas to escape. · Use a suitable lighter.(eg. Ubert special gas lighter P/N GAZ). · After succesfull ignition, keep the knob pushed for 15-20 seconds. ·... -
Page 19: Use Of The Spits
Operation 5.2 Use of the spits 5.2.1 Use of double spits Sofern die Hähnchenfüße nicht zusammen gebunden sind, binden Sie diese mit einer Schnur zu- sammen, damit sie sich während des Grillens nicht unkontrolliert hin und her bewegen. Stecken Sie das Hähnchen mit der Kopfseite voran auf den Grillspieß. Führen Sie den Vierkant- stab des Spießes dabei durch das Loch an der Kopfseite in das Hähnchen und anschließend durch das Loch an den Füßen wieder heraus. - Page 20 Operation Stecken Sie die übrigen Hähnchen wieder mit der Kopfseite zuerst auf den Grillspieß und verfah- ren Sie weiter wie oben beschrieben. Stecken Sie die Flügelenden dann in das Loch am Fußende des vorherigen Hähnchens fest. Fixieren Sie die Hähnchenreihe mit der Endklammer, indem Sie diese direkt hinter dem letzten Hähnchen befestigen, um ein Verrutschen der Hähnchen entlang des Spießes zu vermeiden.
- Page 21 Operation 5.2.2 Use of baskets Legen Sie die Hähnchen auf das Unterteil des Grillkorbes. Stecken Sie das Oberteil des Grillkor- bes auf das Unterteil und befestigen Sie dieses mit den Splinten. < RTUserManual.doc printed: 03/2012 Subject to change!
-
Page 22: Maintenance
Disregarding follows defect bearings and breakdown of the spit rota- tion! (Heat-resistant grease (P/N 412221) and grease guns (P/N 550408) are avail- able at Ubert.) 6.1.4 Detergents To make the cleaning fast and easy we have integrated some cleaners in our pro- gram: •... - Page 23 Maintenance rectly on the cleaning rag and wipe it off this way. With this method it is possible to clean the Rotisserie Wall of Flame easily and without stripes.. 6.1.5 Daily Cleaning 1. Make sure that the unit is cooled down bevor you start the cleaning procedure! 2.
-
Page 24: Wiring Diagram
Maintenance 6.2 Wiring Diagram 6.2.1 All Models 240V / 50-60Hz / 1/N < RTUserManual.doc printed: 03/2012 Subject to change! -
Page 25: Spare Parts
Maintenance 6.3 Spare parts Replace defect or faulty parts only by using our original spare parts. Repairworks and changing of any parts must be carried out by authorized service personell. Dis- regarding these advices will cause a loss of any warranty claims. Also all certificates (such as: CE, UL, VDE, GS and others) will not be valid anymore! 6.3.1 List of Spare Parts lamp socket... - Page 26 Maintenance double nipple switch 16A dial scale I/O 355120 341115 360203 shockproof plug plug for motor,female plug for motor,male 341301 341401 341302 burner ceramic inlay, large ceramic inlay, small 190583 350805 350806 wire mesh ceramic fiber strip gear motor 190170 190320 190698 disposal valve...
-
Page 27: Declaration Of Conformity
Maintenance 6.4 Declaration of Conformity < RTUserManual.doc printed: 03/2012 Subject to change!
