- Page 1 6x2 HDMI 2.0 18G Matrix Switch User Manual Eng lis h Benutzerhandbuch Deutsch Manuel Utilisateur Français Manuale Italiano No. 38162 lindy.com Tested to comply with FCC Standards For Home and Office Use! © LINDY Group – Second Edition (SEPTEMBER 2018)
- Page 3 English Introduction Thank you for purchasing the Lindy 6x2 HDMI 2.0 18G Matrix Switch. This product has been designed to provide trouble free, reliable operation. It benefits from both a Lindy 2 year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.
-
Page 4: Dip Switches

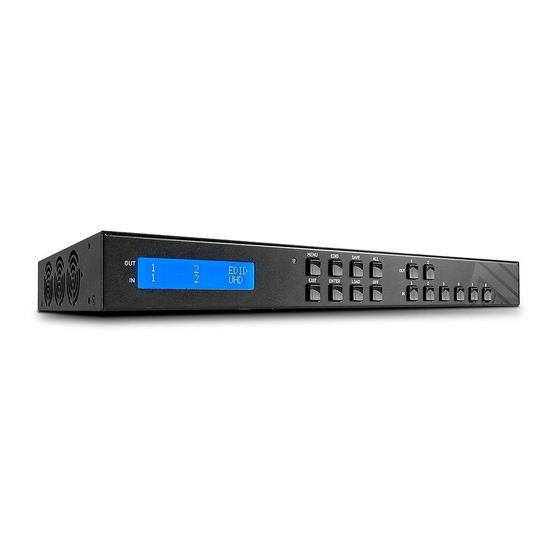

User Manual English Operation Front Panel OUT 1-2: Select the HDMI output signal IN 1-6: Select the HDMI input signal MENU: Display the ID, IP Address, in/out port link and firmware version information EDID: UHD Mode: Set the supported resolution to Ultra HD 4K60 ... - Page 5 User Manual English RS232 Configuration Follow these steps to log in to the matrix using RS232, starting with all devices switched off. 1. Set pin 1 to ON 2. Make sure the computer and the matrix are connected using a serial cable 3.
- Page 6 User Manual English TCP Configuration For programmer’s familiar with network communication, you can programme your own TCP/IP application to control the matrix Note: TCP port is 5000 RS232 and TCP/IP Console Command Control is based on ASCII code for RS232, Telnet and TCP interfaces. Every command must include a carriage return (0d) to execute the command.
- Page 7 User Manual English command "save" save x: Save current route status to Preset x x = [1-4] (Preset Position x) Example: save 1 command "load" load x: Load the route status from Preset x x = [1-4] (Preset Position x) Example: load 1 command "edid"...
- Page 8 User Manual English Please note: After changing ANY IP settings within the web GUI, please turn off the matrix for a minimum of 10 seconds to ensure settings have taken effect...
- Page 9 LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Hersteller- garantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs.
-
Page 10: Recycling Information
Geräte müssen den Sammel- und Rückgabesystemen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernehmen die Gerätehersteller. LINDY bietet deutschen Endverbrauchern ein kostenloses Rücknahmesystem an, beachten Sie bitte, dass Batterien und Akkus den Produkten vor der Rückgabe an das Rücknahmesystem entnommen werden müssen und über die Sammel- und Rückgabesysteme für Batterien separat entsorgt werden müssen.
