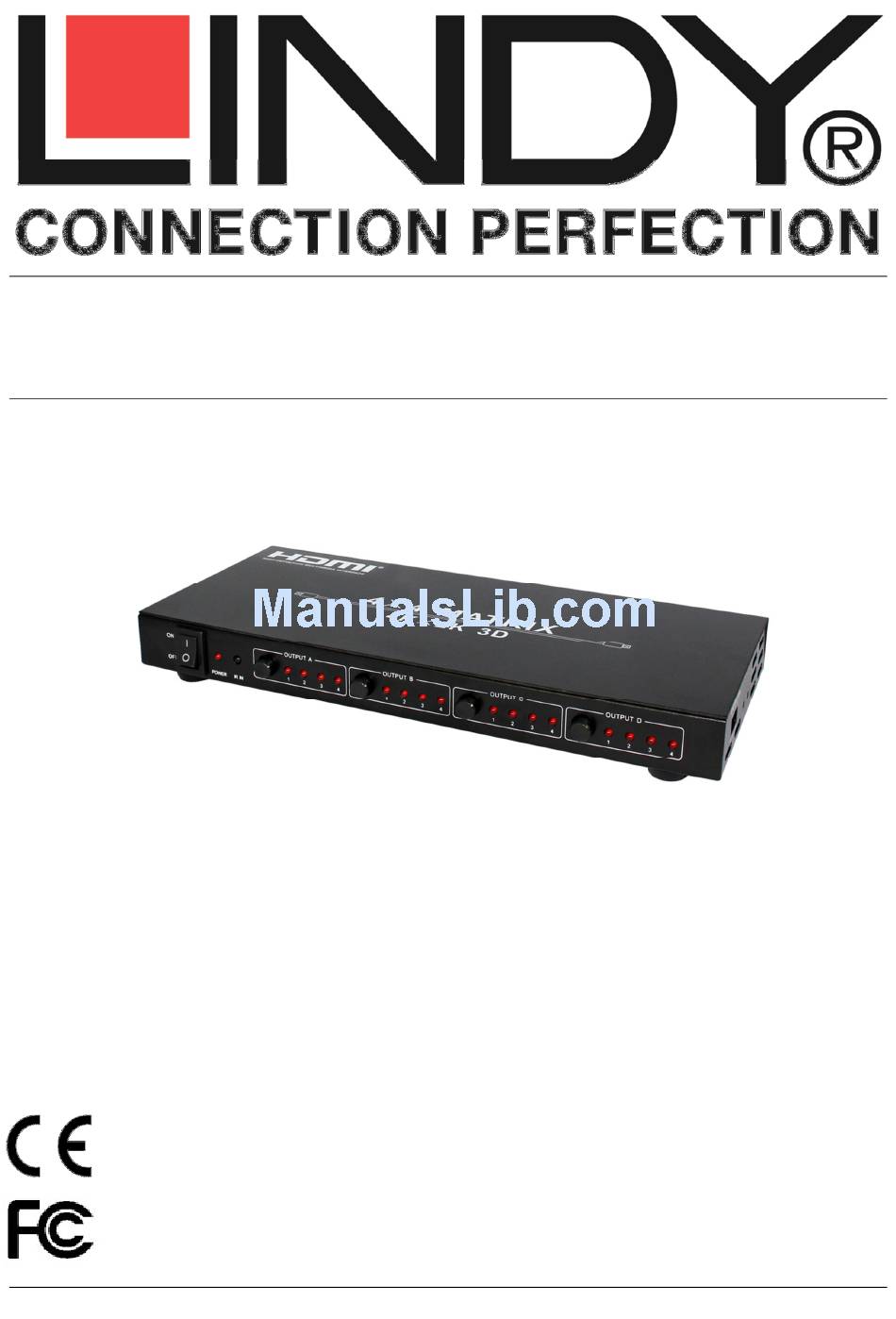

4K HDMI 4x4 Matrix
User Manual
Eng lis h
No. 38051
www.lindy.com
Tested to Comply with
FCC Standards
For Home and Office Use!
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (August 2013)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 38051 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lindy 38051

  • Page 1 4K HDMI 4x4 Matrix User Manual Eng lis h No. 38051 www.lindy.com Tested to Comply with FCC Standards For Home and Office Use! © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (August 2013)

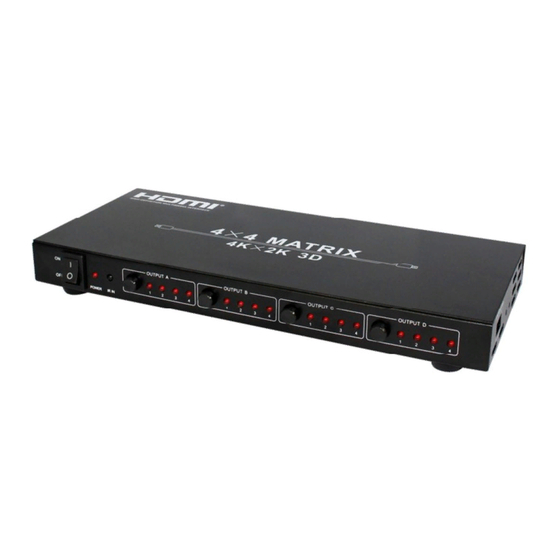

  • Page 3 English Introduction Thank you for purchasing the LINDY 4K HDMI 4x4 Matrix with remote control. This high performance HDMI Matrix allows any of the attached four sources to be show on any of the four displays simultaneously. An Infra-red remote control is supplied to make switching between sources and displays easier.
  • Page 4 User Manual English 2. POWER: This red LED illuminates when the device is connected with power supply 3. IR IN: Remote control signal receive 4. OUTPUT A: Press this button to select the input source to HDMI OUTPUT A, and the red LED will illuminate when selecting corresponding input 5.
  • Page 5 User Manual English Port Tag Page Input port tags Click to edit Input port tags Output port tags Click to edit Output port tags Edit Input port tags: To edit the INPUT port tags, click edit and then add your own name in the area provided...
  • Page 6 User Manual English Edit Output port tags: To edit the OUTPUT port tags, click edit and then add your own name in the area provided Setting page 1. Display’s the Input number for respective Output 2. Click to select Input port for respective Output port 3.
  • Page 7 User Manual English Advanced Page 1. Enable and disable IR control 2. 3. & 4. TCP Mode is not supported FW upgrade Page Firmware upgrade is not supported on this model EDID Dipswitch Adjust the dipswitches on the side of the matrix to force the required setting:...
  • Page 8 User Manual English (0 is down, 1 is up) 0000 Auto mode (default) 0001 1080i, Stereo Audio 2.0 0010 1080i, Dolby/DTS 5.1 0011 1080i, HD Audio 7.1 0100 1080p, Stereo Audio 2.0 0101 1080p, Dolby/DTS5.1 0110 1080p, HD Audio 7.1 0111 3D, Stereo Audio 2.0 1000...
  • Page 9 LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs.
  • Page 10: Recycling Information

    EU ha tramutato le direttive WEEE in leggi statali in varie misure. Fare riferimento alle leggi del proprio Stato quando si dispone di un apparecchio elettrico o elettronico. Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato. LINDY No 38051 Edition, August 2013 www.lindy.com...
