- Page 1 User Manual SAMCOM FPCN30A Features ■ With GROUP button ■ Voice commander/scrambler ■ 20 Memory Channel ■ VOX Sensitive settings ■ With LCD Display ■ Key Lock and Tone Setting ■ Squelch tail elimination Manufacture:Guangdong Samzuk Technology Development Co,Ltd...
- Page 2 User Security Information Handheld transceiver product safety and RF radiation Warning: Please read the manual carefully before using. It contains the important safety using operation instruction, and RF energy and control information contributing to meet the RF radiation limitation requirement of national and international standards. Information provided in this manual may replace the general safety information of the editions before.
- Page 3 Electromagnetic Interference / Electromagnetic Compatibility Remark: Electromagnetic Interference (EMI) occurs in nearly every electronic equipment, by not enough shielding, improper design or incorrect electromagnetic compatibility configuration. Not allowed to change the transmitting frequency, to increase the transmission power (including the installation of additional RF power amplifier). Not allowed to use an external antenna or other transmitting antenna.
- Page 4 If you use the transceiver while driving, please note the following: Concentrate on driving, pay attention to the situation of the road. If possible, try to use the walkie-talkie-free function operation. If the provision of using the transceiver while driving prohibited, please drive the car to the roadside stop, and then make a call. Operation warning Car with an airbag In the car with an airbag, do not put the transceiver within the reach of the expansion of the airbag, because...
- Page 5 Battery If some of your body exposed conductive material contact the battery outside terminals, it will cause damage to property, or burns on human body. These conductive materials include jewelry, keys, or beaded necklace, they will form a loop with the battery (causes short circuit), generate considerable heat. Rechargeable battery storage must be very careful, especially been put in the pocket, purse or other container with metal objects.

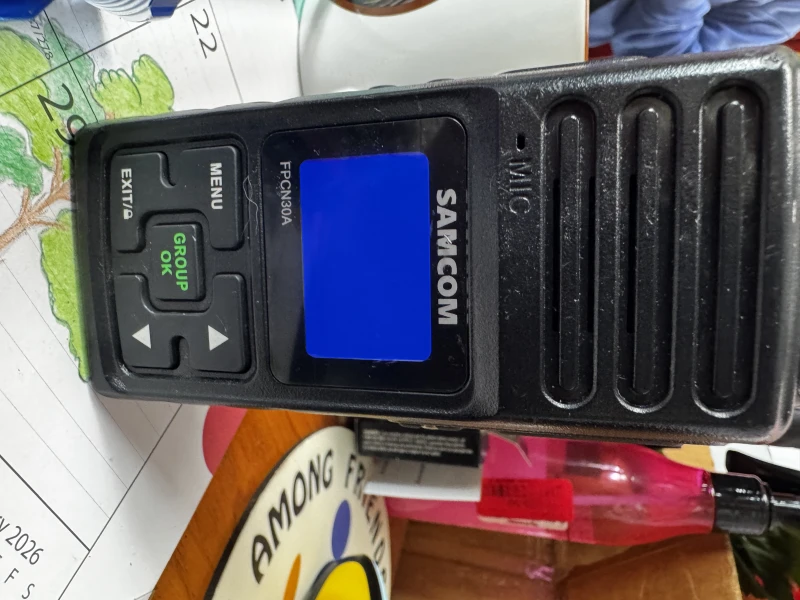

- Page 6 (3) Scan/call button (4) Antenna (5) Channel selection knob (6) Power/volume switch (7) Speaker (8) Microphone (9) Status indicator (10) Battery release button (11) Earphone cap (12) LCD Display (13) Keys (14) Battery (15) Belt screw (16) Charger Press the MENU key，enter into the menu selecting mod Press ▲ or ▼ key choice the function. Keep press 3 seconds the key to lo Press the GROUP/OK key to speak to all channel ,...
- Page 7 Receive Frequency Receiving Status Group Call Status Battery Information Battery on First Use Since batteries leave factory without a fully charging, please charge the new batteries before using. Under normal circumstances, the battery on first use needs 5 hours of charging. The first three times of fully charging and discharging provides batteries the best capacity. When you find out the battery is low, it is required to charge or replace it.
- Page 8 3. Please pay attention to the humidity of the battery storage environment. Batteries are supposed to be stored in the environment of room temperature, cool and dry air, to reduce the self-discharge. Charging Operation Please use SAMCOM-specified charger to charge the battery; the indicator light of the charger shows the completion of charging operation. Indicator Light...

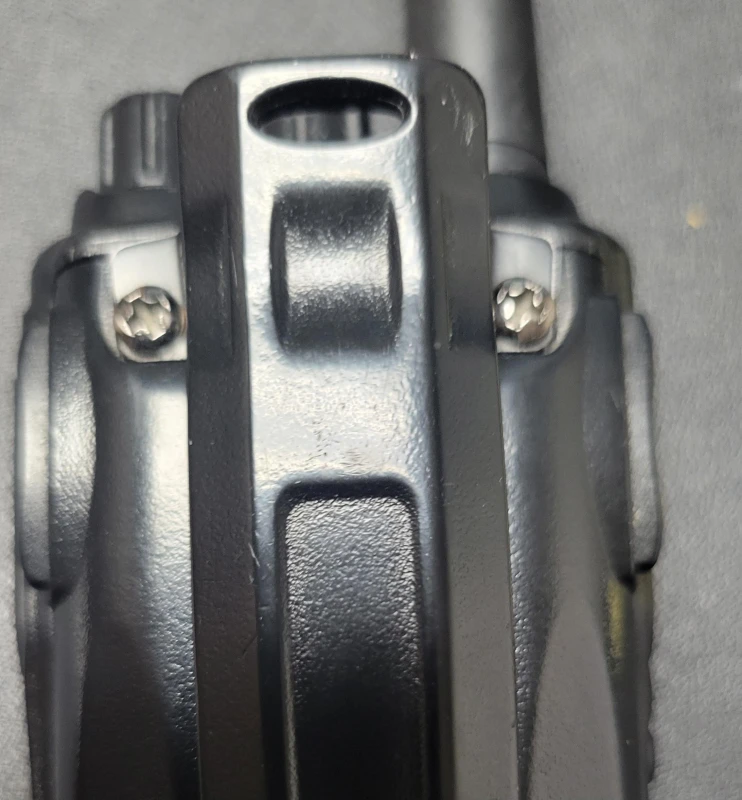

- Page 9 2. Removal of the battery To remove the battery, please make sure the transceiver is powered off, and then press and hold to open the belt clip so that the open the belt clip so that the open the belt clip so that the battery can get out when the button has been turned upward.
- Page 10 (1) Unclose the earphone cap (without removing) in the direction of the arrow (2) Insert the earphone or microphone 2. Removal of the external earphone or microphone You can pull out the external earphone or microphone to remove it. Note: The use of an external earphone or microphone will affect the waterproof performance of the transceiver.
- Page 11 After pressing MENU into function menu and choice SQL, press OK key then you can select 1-9 through by ▲or ▼, then press OK key again, press the EXIT key to give up setting 4、BEP ( Keypad Tone ) Setting After pressing MENU into function menu and choice BEP, press OK key then you can select on/off through by ▲or ▼, then press OK key again press the EXIT key to give up setting 5、CMP ( Voice Compression Function ) Setting...
- Page 12 as long as the MONI button has been hold down. Transmitting First of all, hold down the MONI button and listen for a while to confirm the channel you wanted is not busy, and then speak normally to the microphone at the front of the transceiver, while holding down the PTT button. The transmission indicator turns red when the PTT button is pressed.
- Page 13 This feature ensures the user in a variety of noisy environments can get a clear call. Set by the Users in the channel through Meun Scrambler This feature is voice encryption, user no such feature can not receive the real voice, so makes your call be kept confidential. This feature may be set by Users in the channel through Meun Troubleshooting Guide Problems...
- Page 14 /sub-audio digital settings” as other members of the group. Confirm It can not reach others of a group whether you are in the valid range of transceiver since other members of the group may be too far away. There are voices from other people rather Please change the sub-audio frequency/sub-audio digital settings.
- Page 15 * Our company reserves the right of final explanation to these commitments above.
- Page 16 FCC Warning Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
