SAMCOM FPCN30A How-To

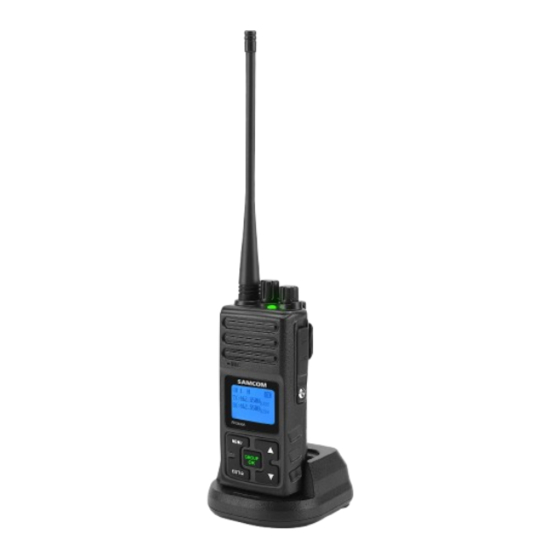

How to program your SAMCOM Two Way Radio
1.First download the free Customer Service program so ware from SAMCOM at
h p://www.sanconsales.com/download.html
The name of the download is "SamcomRadioFreqTools_V1.1_20230417"
2.Unzip the free so ware on your PC. If you do not have an unzipping tool installed on your PC, you can obtain a free co
py of "7-Zip" at h ps://www.7-zip.org/
3.Once the program is unzipped and installed, run the SAMCOM programmable Program. A list of pre-programmed
frequencies will be displayed. Plug in your USB program cable into your PC, and the other end of the program cable into
the speaker microphone jack of your SAMCOM radio. Next and select the proper USB port on the top right of the screen.
Press "READ" on the right side of the screen. The frequencies that are stored on your radio from the factory will now be
displayed. Make any necessary changes to the frequencies that you wish, then the CTS/DCS tones (PL Tones) and select
either 12.5K or 25.0K bandwidth (narrowband or wideband) depending on your radio service. Most FRS Frequencies are
narrowband (12.5K) and Amateur Radio (HAM Radio) frequencies are wideband (25.0K)
When you are done entering all the frequencies, on the le side of the program screen, make any changes that you wish,
Language, squelch, and power level.
Next write the program into the radio by pressing "WRITE" on the right side of the screen. When 100% appears on the
bo om of the screen, the radio is programmed. If you are programming a fleet or small group of radios, simply plug the
program cable into the second radio and press "WRITE" and con nue with however many radios that you have in your
group of radios.
