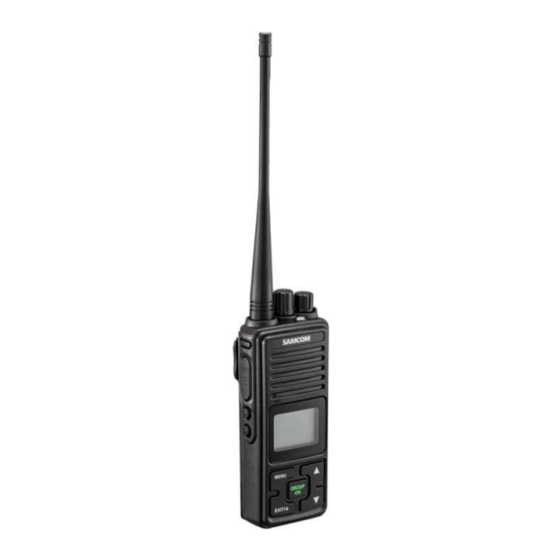

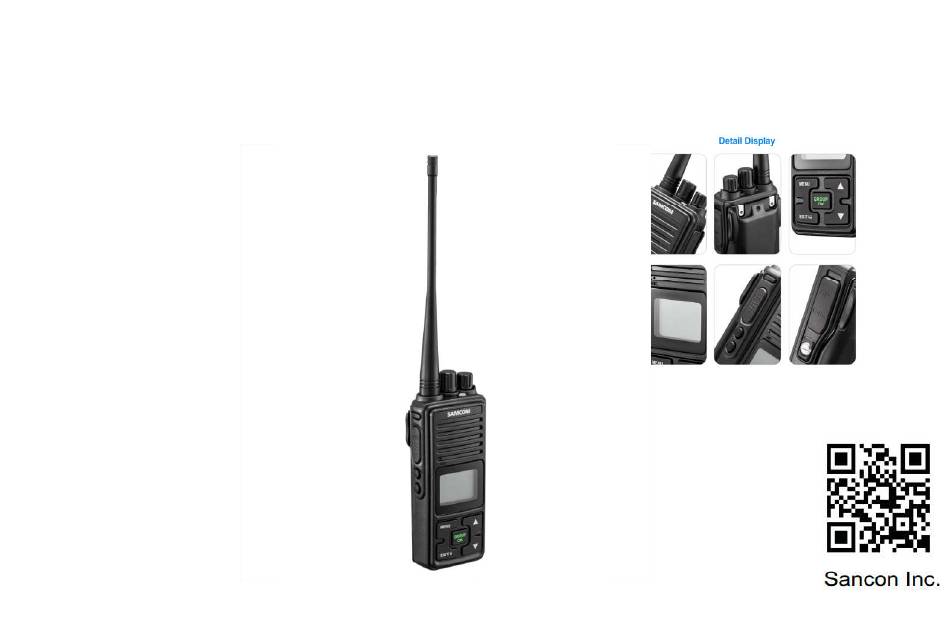

- Page 1 Simple User Manual SAMCOM FPCN10A Features ■ With GROUP button ■ Voice commander/scrambler ■ 20 Memory Channel ■ VOX Sensitive settings ■ With LCD Display ■ Key Lock and Tone Setting ■ Squelch tail elimination...
- Page 2 Get Familiar with the transceiver (1) PTT Transmitting (2) MONI (monitor) button (3) Scan/call button (4) Antenna (5) Channel selection knob (6) Power/volume switch (7) Speaker (8) Microphone (9) Status indicator (10) Battery release button (11) Earphone cap (12) LCD Display (13) Keys (14) Battery (15) Belt screw...
- Page 3 Channel Number Battery Capacity Status Group Number Key tone Status Operation Guide b.Meun Selecting List Item Display Description Setting content Group channel setting Group channel setting 0-19 0-19 Voice Operation OFF 1-9 Squelch Level Selection ON/OFF ON/OFF Keypad Tone ON/OFF Voice Compression Scrambler Function ON/OFF...
- Page 4 2、VOX Setting After pressing MENU into function menu and choice VOX, press OK key then you can select 1-9 and off through by ▲or ▼, then press OK key again, press the EXIT key to give up setting. Level 9 small voice can open transimt. 3、SQL ( Squelch Level Selection ) Setting After pressing MENU into function menu and choice SQL, press OK key then you can select 1-9 through by ▲or ▼, then press OK key again, press the EXIT key to give up setting...
- Page 5 to the partner's voices. Receiving Release PTT key, transceiver enter the receiving mode, the status indicator lights green. Please adjust the volume appropriately to achieve the best listening effect. Scanning This feature is designed to catch signals on all channels. Press the scan/call button (press and hold for less than 2 seconds), the LED indicator flashes green, it will scan all the channels in the scan queue one by one in order.
